Description

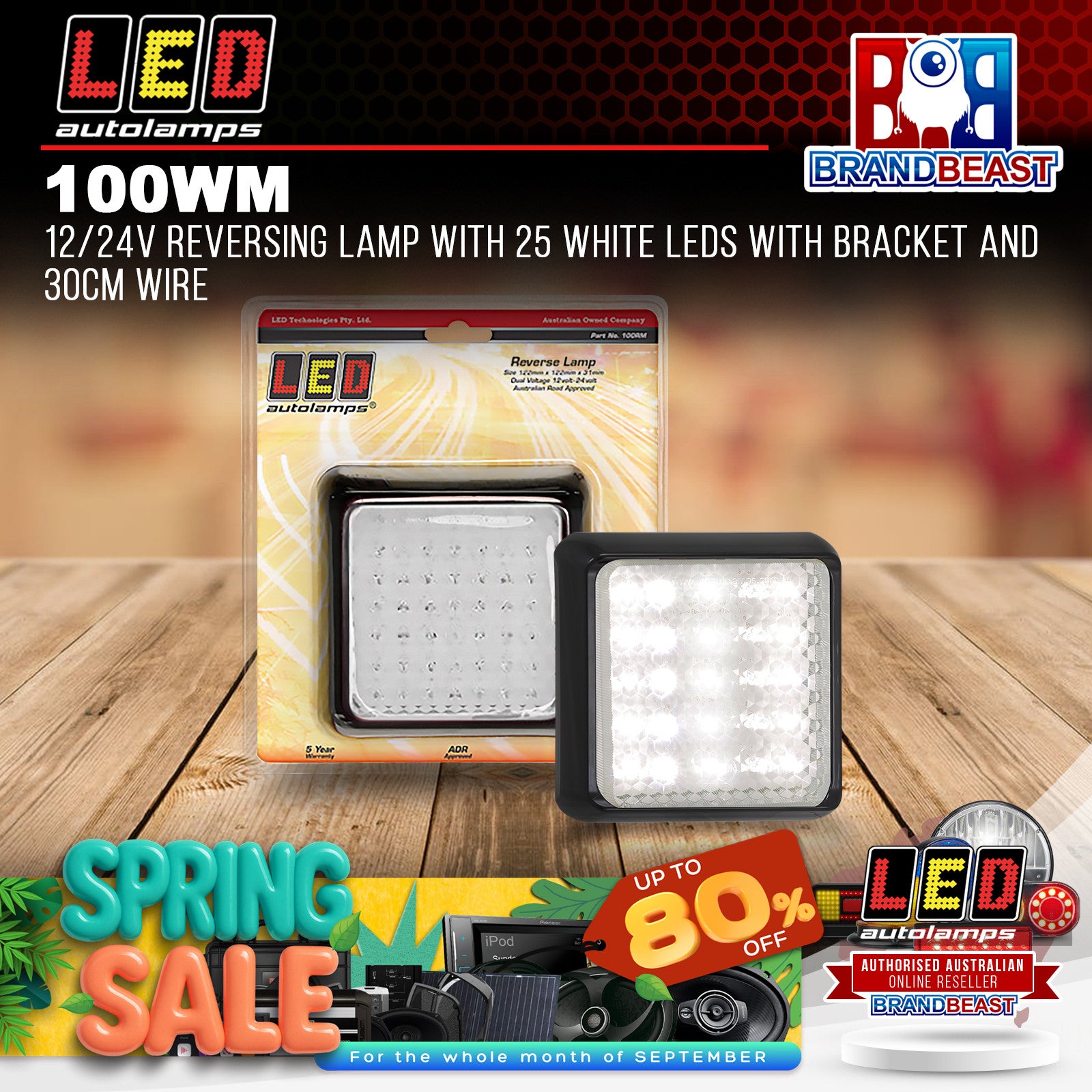

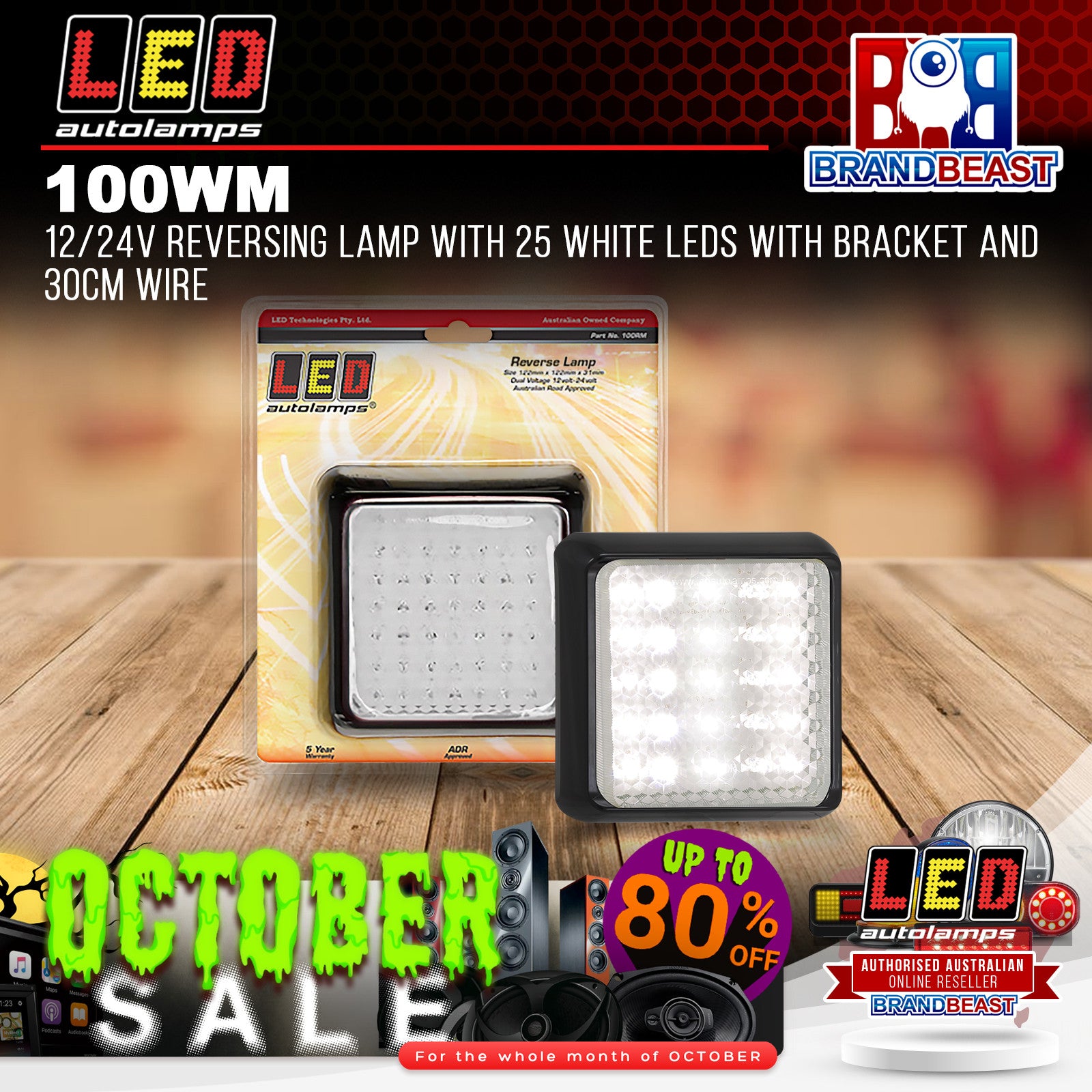

LED Autolamps 100WM 12-24V Reversing Lamp 25 White LEDs 122mm Square with Bracket and 30cm Wire ADR Approved CRN 35793 IP67
The LED Autolamps 100WM is a 12-24V LED reversing lamp with 25 white LEDs in a 122mm square housing. Part of the Original Square Series. ADR approved (CRN 35793), IP67 waterproof, clip-in replaceable lens. Includes mounting bracket and 30cm wire. Five-year warranty.
Product overview
The 100WM is the reversing lamp module in the LED Autolamps Original Square Series, matching the 122mm square format of the 100RM stop/tail and 100AM indicator modules for consistent rear lighting cluster builds. The clip-in replaceable lens allows servicing without replacing the full lamp assembly. The mounting bracket and 30cm wire are included for straightforward surface mounting. ADR approval CRN 35793 confirms road-legal use as a reversing lamp. 12-24V compatible across light vehicle and heavy transport applications.
Features and benefits
25 white LEDs in a 122mm square housing: Original Square Series reversing lamp matching the stop/tail and indicator module format.
Clip-in replaceable lens: Lens can be replaced without removing or replacing the full lamp assembly.
ADR approved (CRN 35793): Compliant for road-legal use as a reversing lamp in Australia.
IP67 fully waterproof and submersible: Suited to trailer, caravan, and off-road environments.
Mounting bracket and 30cm wire included: Ready for surface mounting installation.
12V and 24V compatible: Suits light vehicle trailers, caravans, trucks, and heavy transport.
Black housing.
Five-year warranty.
Technical specs
| Specification |
Detail |
| SKU |
100WM |
| Brand |
LED Autolamps |
| Series |
Original Square Series |
| Type |
Reversing lamp |
| Light Type |
LED |
| LED Count |
25 |
| LED Colour |
White |
| Operating Voltage |
12V to 24V |
| Housing Colour |
Black |
| Dimensions |
122mm x 122mm x 31mm |
| Lens |
Clip-in replaceable |
| Waterproof Rating |
IP67 |
| ADR Compliance |
CRN 35793 |
| Includes |
Mounting bracket, 30cm wire |
| Weight |
0.28kg |
| Manufactured In |
China (Taiwan) |
| Warranty |
Five years |
Frequently asked questions
Is the 100WM ADR approved? Yes. The 100WM carries ADR approval CRN 35793, confirming it is road-legal for use as a reversing lamp in Australia.
What voltage does the 100WM operate on? The 100WM operates on 12V and 24V systems, making it suited to light vehicle trailers, caravans, trucks, and commercial vehicles.
How does the 100WM fit with other 100 Series lamps? The 100WM shares the same 122mm square format as the 100RM stop/tail and 100AM indicator modules, allowing a matched rear lighting cluster to be built using Original Square Series components.
What is the clip-in replaceable lens? The 100WM features a clip-in lens that can be removed and replaced without removing or replacing the full lamp body, simplifying servicing if the lens is damaged.
What is included with the 100WM? The 100WM includes the lamp, a mounting bracket, and a 30cm wire for surface mounting installation.
