Description

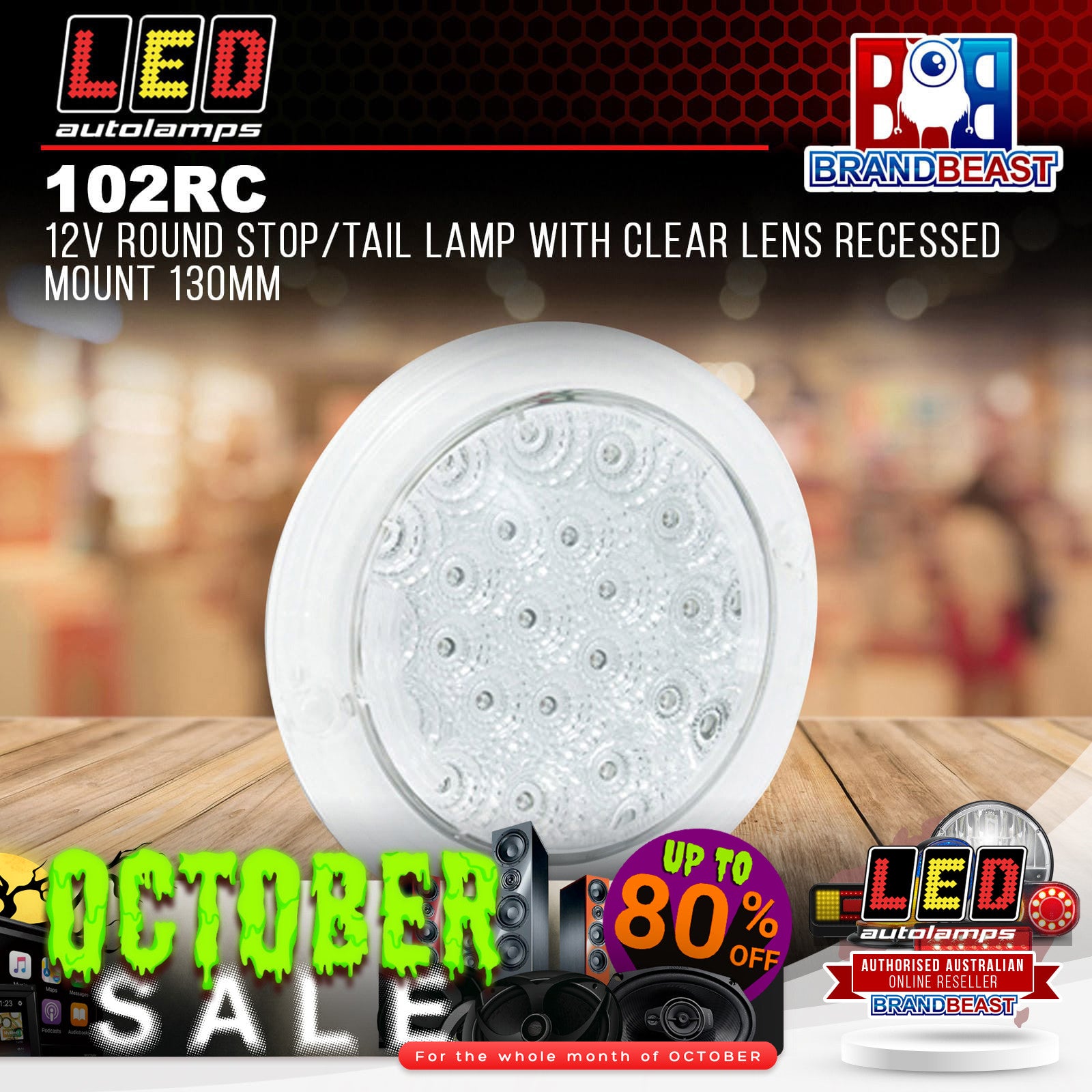

LED Autolamps 102RC 12V Round LED Stop Tail Lamp Clear Lens 130mm Diameter Low Profile Recessed Mount ADR 49/00 IP67
The LED Autolamps 102RC is a 12V round LED stop/tail lamp with a clear lens in a 130mm diameter low-profile recessed mount format. ADR approved (ADR 49/00), IP67 waterproof, 0.4m cable. The clear lens appears neutral when the lamp is not illuminated. Five-year warranty. Sold individually.
Product overview
The 102RC is a round recessed-mount stop/tail lamp with a clear lens, suited to trailers, caravans, and commercial vehicles where a flush-mount installation with a clean, unobtrusive appearance is preferred. The clear lens remains visually neutral when the lamp is inactive. The 130mm diameter and 12mm depth suit standard round panel cutouts. ADR 49/00 approval confirms road-legal use as a stop/tail lamp. Current draw at 13.8V: stop 0.04A, tail 0.31A. A 0.4m cable is included. 12V only. IP67 rated.
Features and benefits
Clear lens: Appears neutral when the lamp is inactive, illuminates with stop/tail output when active.
130mm round, 12mm depth: Low-profile recessed mount for a flush panel installation.
ADR approved (ADR 49/00): Compliant for road use in Australia as a stop/tail lamp.
IP67 fully waterproof and submersible: Suited to trailer, caravan, and off-road environments.
0.4m cable included.
12V only.
Five-year warranty.
Sold individually.
Technical specs
| Specification |
Detail |
| SKU |
102RC |
| Brand |
LED Autolamps |
| Type |
Stop/tail lamp |
| Light Type |
LED |
| Lens |
Clear |
| Operating Voltage |
12V |
| Current Draw (Stop) |
0.04A at 13.8V |
| Current Draw (Tail) |
0.31A at 13.8V |
| Mount Type |
Recessed |
| Diameter |
130mm |
| Depth |
12mm |
| Cable Length |
0.4m |
| Waterproof Rating |
IP67 |
| ADR Compliance |
ADR 49/00 |
| Weight |
0.196kg |
| Manufactured In |
China (Taiwan) |
| Sold As |
Each |
| Warranty |
Five years |
Frequently asked questions
Is the 102RC ADR approved? Yes. The 102RC holds ADR 49/00 approval, confirming compliance for road use in Australia as a stop/tail lamp.
What voltage does the 102RC operate on? The 102RC is 12V only and is not suitable for 24V systems.
What does "clear lens when inactive" mean? The 102RC has a clear lens that appears visually neutral when the lamp is not powered. When active, it illuminates with the correct stop/tail output.
What type of mount does the 102RC use? The 102RC uses a low-profile recessed mount with a 130mm diameter and 12mm depth for a flush panel installation.
Is the 102RC suitable for submersion? Yes. The IP67 rating confirms the 102RC is fully dustproof and submersible in water up to 1 metre for up to 30 minutes.
