Description

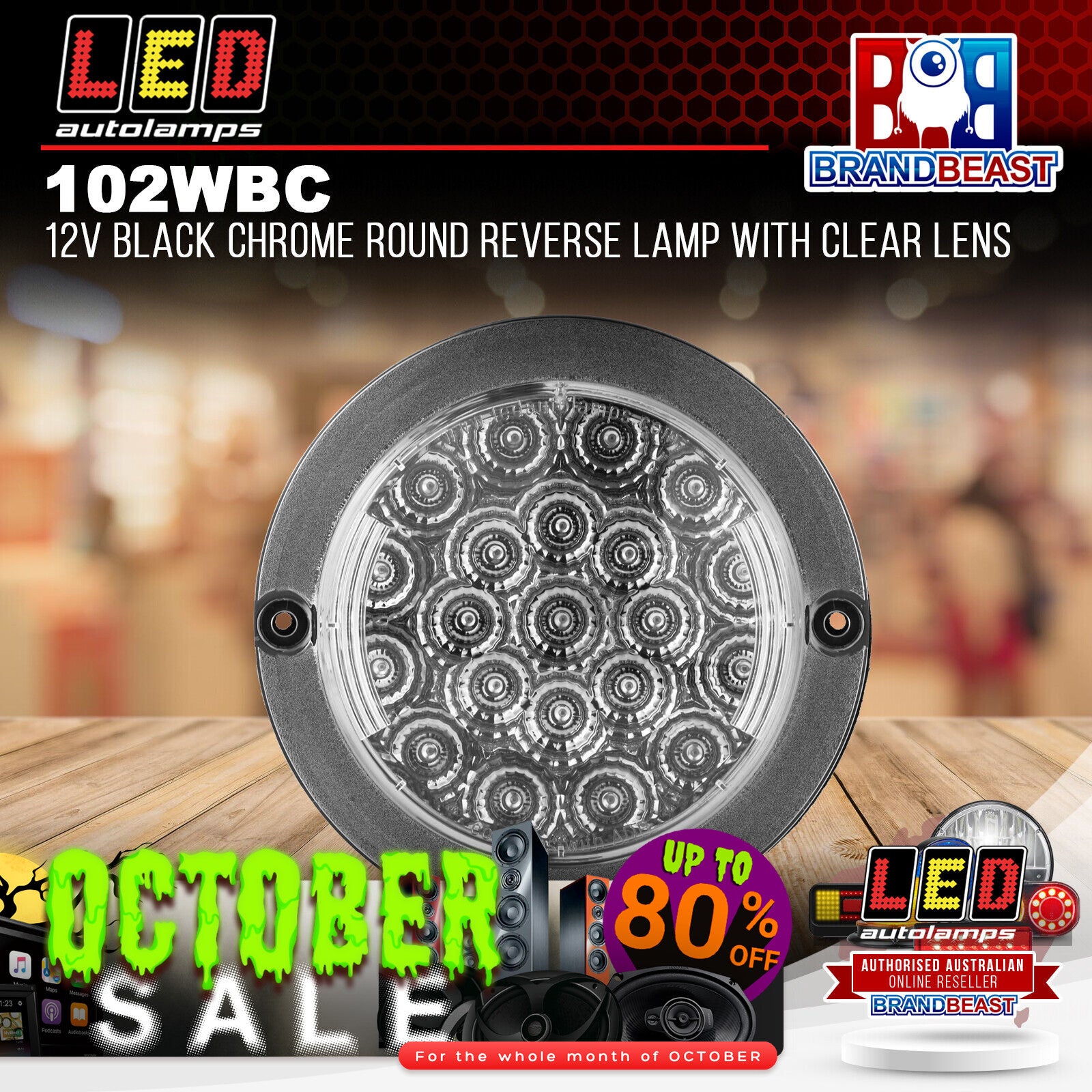

LED Autolamps 102WBC 12-24V Round LED Reverse Lamp Black Chrome with Clear Lens 130mm Low Profile Recessed Mount ADR Approved CTA042826 IP67
The LED Autolamps 102WBC is a 12-24V round LED reverse lamp with a black chrome finish and clear lens in a 130mm diameter low-profile recessed mount format. ADR approved (CTA042826), IP67 waterproof. Surface bases available separately. Five-year warranty. Sold individually.
Product overview
The 102WBC is a round recessed-mount reverse lamp with a black chrome surround and clear lens, suited to trailers, caravans, and commercial vehicles where a distinctive flush-mount appearance is required. The clear lens appears neutral when the lamp is not illuminated. The 130mm diameter and 12mm depth suit standard round panel cutouts. Surface bases are available separately for surface mount applications. ADR approval CTA042826 confirms road-legal use as a reverse lamp. 12-24V compatible across light vehicle and heavy transport applications. IP67 rated.
Features and benefits
Black chrome finish with clear lens: Distinctive appearance for modern trailer and caravan builds; lens appears neutral when inactive.
130mm round, 12mm depth: Low-profile recessed mount for a flush panel installation.
Surface bases available separately: Suits surface mount applications where a recessed cutout is not practical.
ADR approved (CTA042826): Compliant for road use in Australia as a reverse lamp.
IP67 fully waterproof and submersible: Suited to trailer, caravan, and off-road environments.
12V and 24V compatible: Suits light vehicle trailers, caravans, trucks, and heavy transport.
Five-year warranty.
Sold individually.
Technical specs
| Specification |
Detail |
| SKU |
102WBC |
| Brand |
LED Autolamps |
| Type |
Reverse lamp |
| Light Type |
LED |
| Lens |
Clear |
| Housing Finish |
Black chrome |
| Operating Voltage |
12V to 24V |
| Mount Type |
Recessed |
| Diameter |
130mm |
| Depth |
12mm |
| Surface Base |
Available separately |
| Waterproof Rating |
IP67 |
| ADR Compliance |
CTA042826 |
| Weight |
0.196kg |
| Manufactured In |
China (Taiwan) |
| Sold As |
Each |
| Warranty |
Five years |
Frequently asked questions
Is the 102WBC ADR approved? Yes. The 102WBC holds ADR approval CTA042826, confirming compliance for road use in Australia as a reverse lamp.
What voltage does the 102WBC operate on? The 102WBC operates on 12V and 24V systems, making it suited to light vehicle trailers, caravans, trucks, and commercial vehicles.
What type of mount does the 102WBC use? The 102WBC uses a low-profile recessed mount with a 130mm diameter and 12mm depth. Surface bases are available separately for surface mount installations where a recessed cutout is not practical.
Is the 102WBC suitable for submersion? Yes. The IP67 rating confirms the 102WBC is fully dustproof and submersible in water up to 1 metre for up to 30 minutes.
Is the 102WBC sold as a single unit or a pair? Sold individually.
