Description
12V Slimline Interior Strip Light 61 SMD LEDs, 6500K Cool White, Inbuilt Switch, IP67.
Product Overview

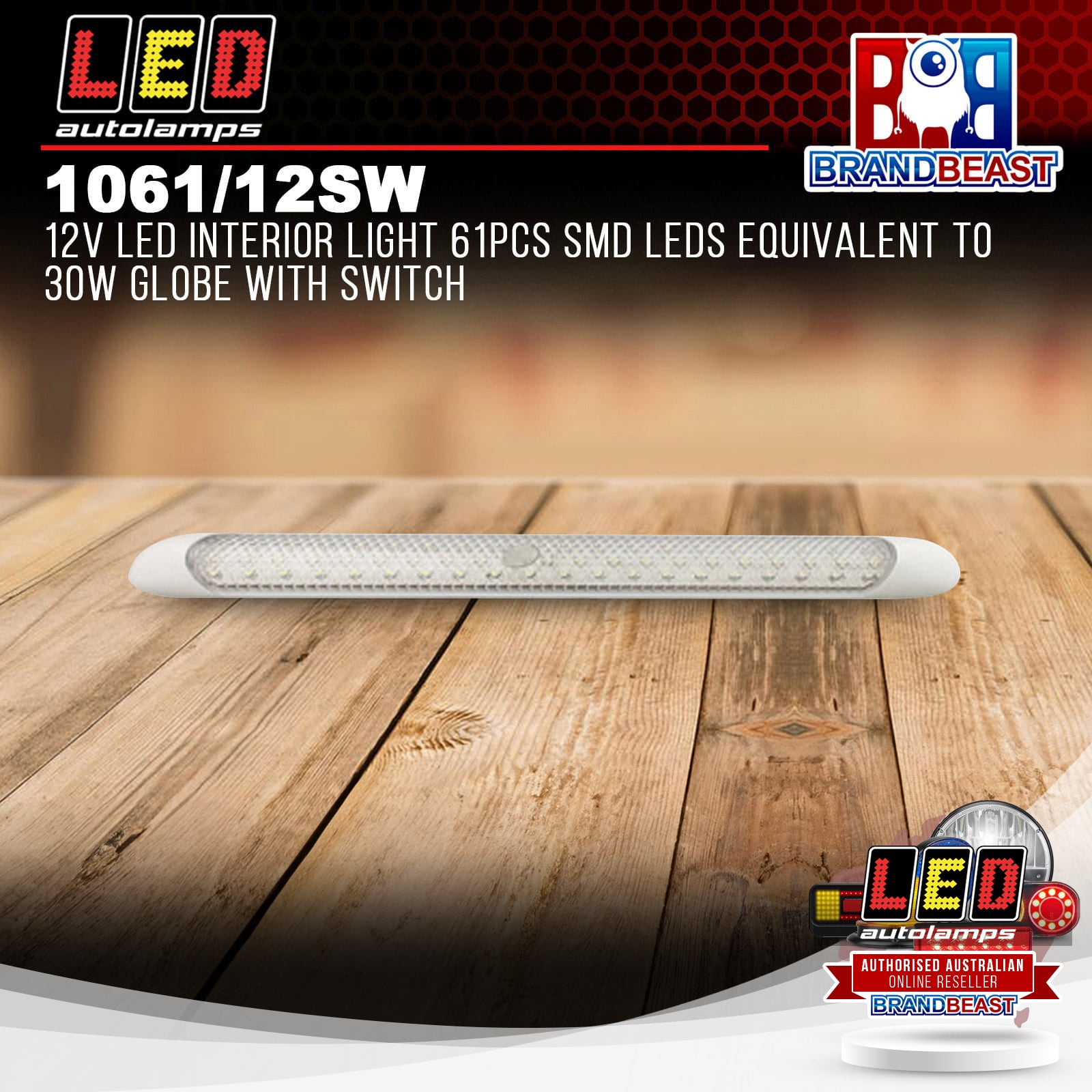

The LED Autolamps 1061/12SW is a 12V slimline interior LED strip lamp designed for use in caravans, camper trailers, trucks, vans, and marine applications. Measuring just 300mm x 25mm x 10mm at an ultra-low profile of 10mm deep, this lamp packs 61 SMD LEDs into a compact, practical format delivering high-brightness cool white illumination equivalent to a 30W incandescent globe at a fraction of the current draw.
The 6500K cool white colour temperature produces a crisp, bright daylight-style light spread across a 120-degree angle well-suited to work areas, reading zones, and general interior illumination in vehicles and trailers. The inbuilt push button on/off switch eliminates the need for a separate switched circuit, simplifying installation considerably. IP67 rated for both interior and exterior use, the 1061/12SW is a versatile, reliable light source backed by a 3-year warranty.
Key Specifications
- LED count: 61 SMD LEDs
- Colour temperature: 6500K (cool white)
- Equivalent output: 30W incandescent globe
- Light spread: 120-degree
- Dimensions: 300mm x 25mm x 10mm
- Switch: Inbuilt push button on/off
- Mount type: Surface mount remove end bezels, screw fix
- IP rating: IP67 (interior or exterior use)
- Input voltage: 12V only
- Current draw: 0.31A @ 13.8V
- Warranty: 3 years
- Weight: 0.06kg
- Brand: LED Autolamps
- SKU: 1061/12SW (also referred to as 106112SW)
Features & Benefits
-
61 SMD LEDs 30W equivalent: High LED count in a slimline 300mm strip delivers impressive light output comparable to a 30W incandescent globe at significantly lower current draw
-
6500K cool white: Crisp daylight-style colour temperature ideal for work areas, reading lights, and general task lighting in vehicle and trailer interiors
-
120-degree light spread: Wide angle illumination provides broad, even coverage across the interior area below the lamp
-
Inbuilt push button on/off switch: Built-in switch allows independent on/off control without requiring a separate switched circuit simplifying installation and adding convenience for the user
-
Ultra-slim 10mm profile: At just 10mm deep, the 1061/12SW installs flush against headliners, walls, and surfaces without protruding into usable space
-
IP67 rated: Suitable for both interior and exterior use fully protected against dust ingress and temporary water immersion for installation in wet or demanding environments
-
Surface mount with end bezels: End bezels remove for concealed screw mounting, then refit for a clean, finished appearance with no visible fasteners
-
Low current draw: Just 0.31A at 12V, placing minimal load on the vehicle or trailer's 12V electrical system
-
12V only: Direct 12V compatibility for caravans, camper trailers, trucks, vans, and marine applications
-
3-year warranty: Backed by LED Autolamps' 3-year product warranty
Technical Specs
| Specification |
Detail |
| SKU |
1061/12SW (106112SW) |
| Brand |
LED Autolamps |
| LED Count |
61 SMD LEDs |
| Colour Temperature |
6500K (cool white) |
| Equivalent Output |
30W incandescent |
| Light Spread |
120-degree |
| Dimensions |
300mm x 25mm x 10mm |
| Switch |
Inbuilt push button on/off |
| Mount Type |
Surface mount end bezel removal, screw fix |
| IP Rating |
IP67 |
| Input Voltage |
12V only |
| Current Draw |
0.31A @ 13.8V |
| Warranty |
3 Years |
| Weight |
0.06kg |
Compatible With
Universal suits all 12V vehicles and applications requiring interior or exterior strip lighting including:
- Caravans and camper trailers
- Motorhomes and campervans
- Trucks and van interiors
- Marine and boat interior lighting
- Toolboxes, canopies, and storage areas
- Workshop and utility vehicle interior lighting
Frequently Asked Questions
Does this lamp include a switch?
Yes the 1061/12SW features an inbuilt push button on/off switch, allowing independent on/off control without a separate switched circuit.
What colour temperature is this lamp?
The 1061/12SW is 6500K a cool white, daylight-style colour temperature that produces a bright, crisp light output suited to task and work area lighting.
Is this lamp suitable for exterior use?
Yes the IP67 rating makes the 1061/12SW suitable for both interior and exterior applications, including installation in areas exposed to rain, moisture, or wash-down.
Is this lamp compatible with 24V vehicles?
No the 1061/12SW is 12V only. For a 24V version, refer to the LED Autolamps 1061/24SW.
How is this lamp mounted?
Remove the end bezels, surface mount using screws through the exposed mounting points, then refit the bezels for a clean finished appearance. No visible fasteners on the completed installation.
