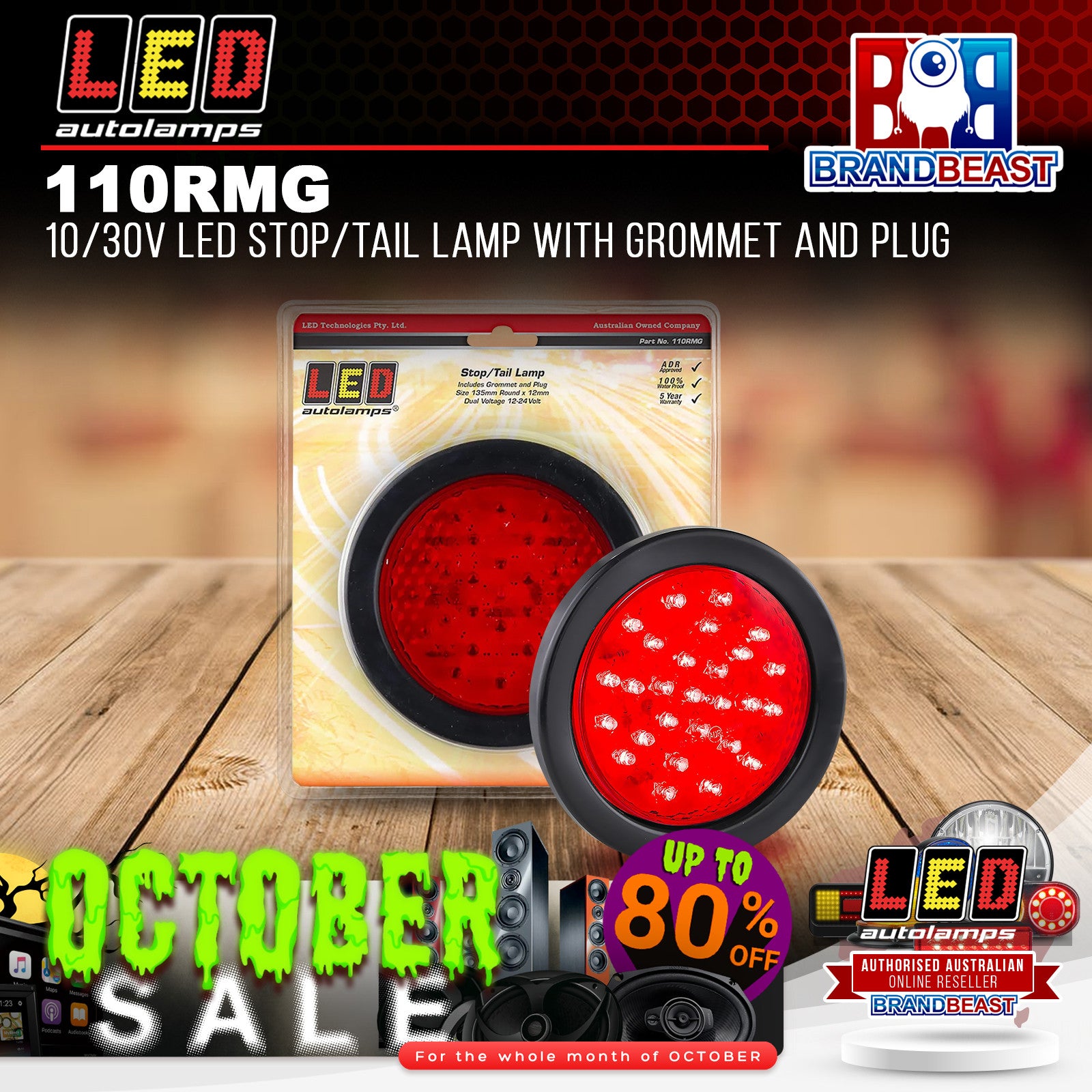

LED Autolamps 110RMG 12-24V Round LED Stop Tail Lamp 130mm Flush Mount with Grommet and Plug ADR 49/00 IP67
The LED Autolamps 110RMG is a 12-24V round LED stop/tail lamp in a 130mm flush-mount format, supplied with a grommet and plug for panel mounting. ADR approved (ADR 49/00), IP67 waterproof, 0.31A current draw at 13.8V. Plastic base. Five-year warranty. Sold individually.
Product overview
The 110RMG is a round flush-mount stop/tail lamp suited to trailers, caravans, trucks, and commercial vehicles. The grommet and plug are included for a complete panel-mount installation. The 130mm diameter and 12mm depth suit standard round panel cutouts. ADR 49/00 compliance confirms road-legal use as a stop/tail lamp. 12-24V compatible across light vehicle and heavy transport applications. IP67 rated. For a matched indicator lamp in the same format, see the LED Autolamps 110AMG.
Features and benefits
Grommet and plug included: Panel mounting hardware supplied for a complete installation.
130mm round, 12mm depth: Low-profile flush mount for a clean panel installation.
ADR approved (ADR 49/00): Compliant for road use in Australia as a stop/tail lamp.
IP67 fully waterproof and submersible: Suited to trailer, caravan, and off-road environments.
12V and 24V compatible: Suits light vehicle trailers, caravans, trucks, and heavy transport.
0.31A current draw at 13.8V.
Plastic base.
Five-year warranty.
Sold individually.
Technical specs
| Specification |
Detail |
| SKU |
110RMG |
| Brand |
LED Autolamps |
| Type |
Stop/tail lamp |
| Light Type |
LED |
| Operating Voltage |
12V to 24V |
| Current Draw |
0.31A at 13.8V |
| Mount Type |
Flush |
| Diameter |
130mm |
| Depth |
12mm |
| Base Material |
Plastic |
| Includes |
Grommet and plug |
| Waterproof Rating |
IP67 |
| ADR Compliance |
ADR 49/00 |
| Weight |
0.281kg |
| Manufactured In |
China (Taiwan) |
| Sold As |
Each |
| Warranty |
Five years |
Frequently asked questions
Is the 110RMG ADR approved? Yes. The 110RMG holds ADR 49/00 approval, confirming compliance for road use in Australia as a stop/tail lamp.
What voltage does the 110RMG operate on? The 110RMG operates on 12V and 24V systems, making it suited to light vehicle trailers, caravans, trucks, and commercial vehicles.
What is included with the 110RMG? The 110RMG is supplied with a grommet and plug for panel mounting. Contact us to confirm the full list of included hardware before purchasing.
Is there a matched indicator lamp available? Yes. The LED Autolamps 110AMG is a round amber indicator lamp in the same format with grommet and plug included.
Is the 110RMG sold as a single unit or a pair? Sold individually.
