Description

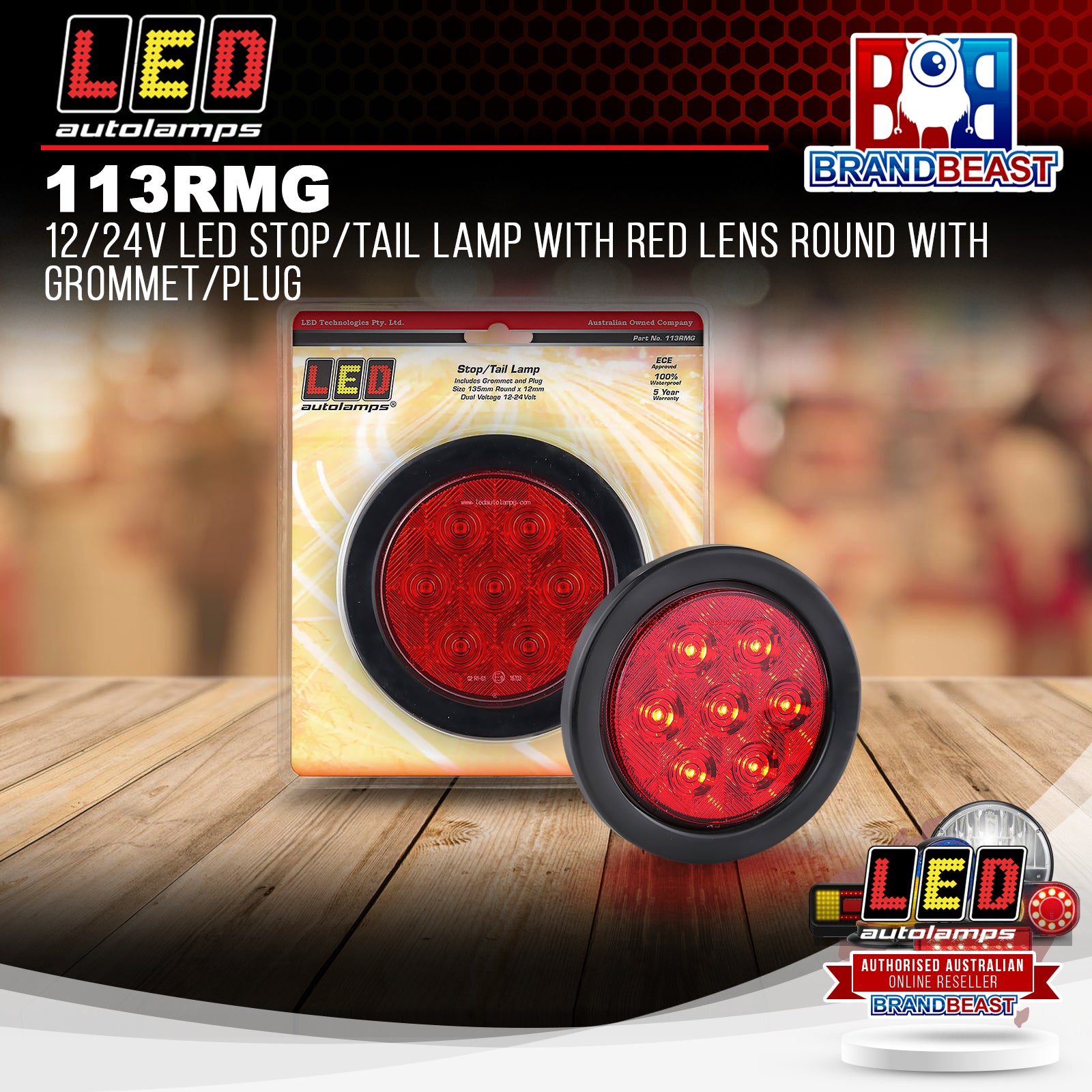

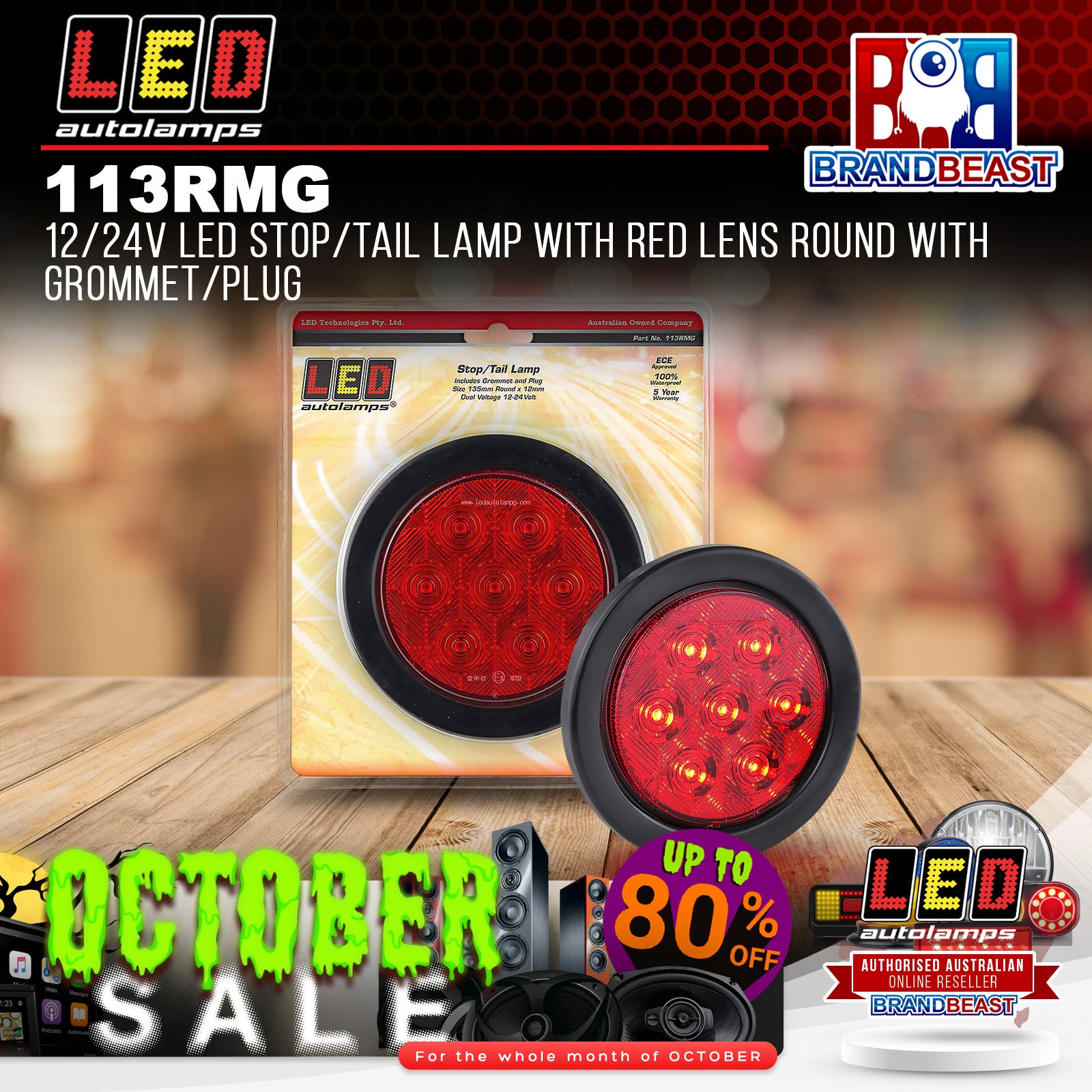

LED Autolamps 113RMG 12-24V Round LED Stop Tail Lamp Red Acrylic Lens 113mm with 135mm Grommet and 3-Pin Plug ECE Approved IP67
The LED Autolamps 113RMG is a 12-24V round LED stop/tail lamp with a red acrylic lens, supplied with a 135mm x 12mm grommet and 3-pin plug and cable. ECE approved (ECE R1-S1-E9-02 16703), IP67 waterproof. Five-year warranty. Sold individually.
Product overview
The 113RMG is the complete installation version of the 113 series red stop/tail lamp, including the grommet and plug for a ready-to-install panel-mount setup. The 113mm lamp body fits into a 135mm x 12mm grommet cutout. The red acrylic lens provides correct stop/tail output. Current draw at 13.8V: stop 0.23A, tail 0.08A. ECE R1-S1-E9-02 16703 approval confirms road-legal use as a stop/tail lamp. For a matched amber indicator in the same format, see the 113AMG. 12-24V compatible across light vehicle and heavy transport applications.
Features and benefits
Grommet and 3-pin plug and cable included: Complete panel-mount installation hardware supplied.
Red acrylic lens: Correct red stop/tail output for ECE-compliant road use.
113mm lamp, 135mm x 12mm grommet cutout: Low-profile flush mount for a clean panel installation.
ECE approved (ECE R1-S1-E9-02 16703): Meets international road approval standards for legal on-road use.
IP67 fully waterproof and submersible: Suited to trailer, caravan, and off-road environments.
12V and 24V compatible: Suits light vehicle trailers and 24V heavy transport.
Five-year warranty.
Sold individually.
Technical specs
| Specification |
Detail |
| SKU |
113RMG |
| Brand |
LED Autolamps |
| Type |
Stop/tail lamp |
| Light Type |
LED |
| Lens Colour |
Red |
| Lens Material |
Acrylic |
| Operating Voltage |
12V to 24V |
| Current Draw (Stop) |
0.23A at 13.8V |
| Current Draw (Tail) |
0.08A at 13.8V |
| Lamp Diameter |
113mm |
| Grommet Size |
135mm x 12mm |
| Mount Type |
Flush |
| Connector |
3-pin plug and cable |
| Waterproof Rating |
IP67 |
| ECE Compliance |
ECE R1-S1-E9-02 16703 |
| Weight |
0.23kg |
| Manufactured In |
China (Taiwan) |
| Sold As |
Each |
| Warranty |
Five years |
Frequently asked questions
Is the 113RMG approved for road use in Australia? Yes. The 113RMG holds ECE approval ECE R1-S1-E9-02 16703, meeting international road approval standards accepted for on-road use in Australia as a stop/tail lamp.
What is the grommet size for the 113RMG? The 113RMG uses a 135mm x 12mm grommet. The lamp body is 113mm in diameter.
Is a matched indicator lamp available in the same format? Yes. The LED Autolamps 113AMG is a round amber indicator lamp in the same 113mm format with 135mm grommet and 3-pin plug included.
What is the current draw of the 113RMG? At 13.8V: stop draws 0.23A and tail draws 0.08A.
Does the 113RMG work on both 12V and 24V systems? Yes. The 113RMG operates across 12V to 24V, making it compatible with light vehicle trailers and 24V heavy transport without modification.
