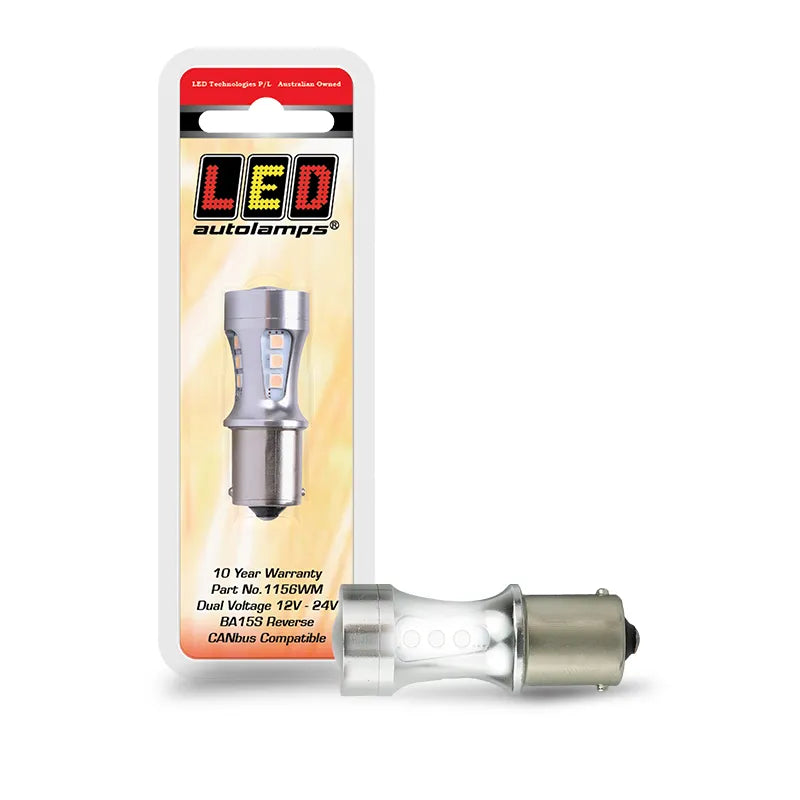

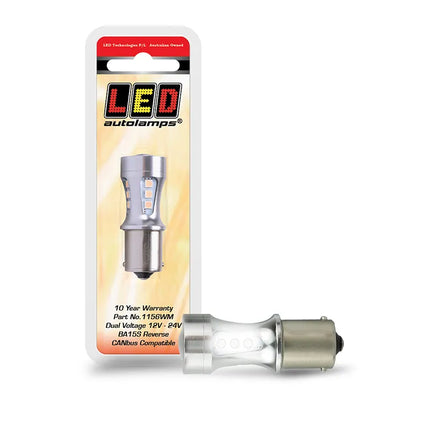

LED Autolamps 1156WM BA15S LED Reverse Globe 18 SMD 570lm 6500K Cool White CANbus Compatible 12-24V with Reverse Polarity and Over-Voltage Protection
The LED Autolamps 1156WM is an 18 SMD LED replacement globe in a BA15S bayonet fitting for reverse lamp applications across 12V and 24V vehicles. 570lm effective output, 6500K cool white, 0.43A current draw at 12V. CANbus compatible, reverse polarity protected, and over-voltage protected to 32V. Rated 50,000-hour lifespan. Supplied as a blister single.
Product overview
The 1156WM is a direct-swap reverse globe for BA15S single-contact bayonet holders, delivering 570lm of 6500K cool white output a significant brightness improvement over standard incandescent reverse globes. The 18 SMD LEDs provide even, efficient illumination for improved rearward visibility. CANbus compatibility prevents dashboard error warnings in modern vehicles. Reverse polarity protection means the globe will not be damaged by incorrect installation. Over-voltage protection up to 32V guards against voltage spikes. 12-24V compatible across light vehicles and heavy transport. 50,000-hour rated lifespan significantly reduces globe change frequency.
Features and benefits
18 SMD LEDs, 570lm effective output: Strong, even cool white reverse light output.
6500K cool white: Crisp daylight-temperature colour suited to reverse lamp applications.
CANbus compatible: Operates without triggering dashboard error warnings in CANbus-equipped vehicles.
Reverse polarity protected: Safe against incorrect installation refit correctly and the globe operates normally.
32V over-voltage protection: Built-in protection against voltage spikes up to 32V.
BA15S bayonet fitting: Direct drop-in replacement for standard single-contact bayonet reverse lamp holders.
12V and 24V compatible: Suits light vehicles and 24V heavy transport.
50,000-hour rated lifespan: Long-term, low-maintenance replacement.
Blister single.
Technical specs
| Specification |
Detail |
| SKU |
1156WM |
| Brand |
LED Autolamps |
| Function |
Reverse lamp globe |
| Fitting |
BA15S bayonet |
| LED Count |
18 SMD |
| Lumens |
570lm effective |
| Colour Temperature |
6500K cool white |
| Operating Voltage |
12V to 24V |
| Current Draw |
0.43A at 12V |
| CANbus Compatible |
Yes |
| Reverse Polarity Protected |
Yes |
| Over-Voltage Protection |
32V |
| Rated Lifespan |
50,000 hours |
| Pack |
Blister single |
Frequently asked questions
Is the 1156WM compatible with CANbus vehicles? Yes. The 1156WM is CANbus compatible, designed to operate without triggering dashboard error warnings in modern vehicles with CANbus electrical systems.
What fitting type does the 1156WM use? The 1156WM uses a BA15S bayonet fitting a standard single-contact bayonet base that directly replaces most reverse lamp globes using the same socket type.
What happens if the 1156WM is fitted with the wrong polarity? The 1156WM is reverse polarity protected and will not be damaged if accidentally installed the wrong way. Refit it correctly and it will operate normally.
How bright is the 1156WM compared to a standard globe? The 1156WM produces 570lm of effective output at 6500K cool white, significantly brighter and more efficient than a standard incandescent reverse globe.
What is the rated lifespan of the 1156WM? The 1156WM is rated for 50,000 hours, making it a long-lasting replacement that far outlasts traditional incandescent globes.
