Description

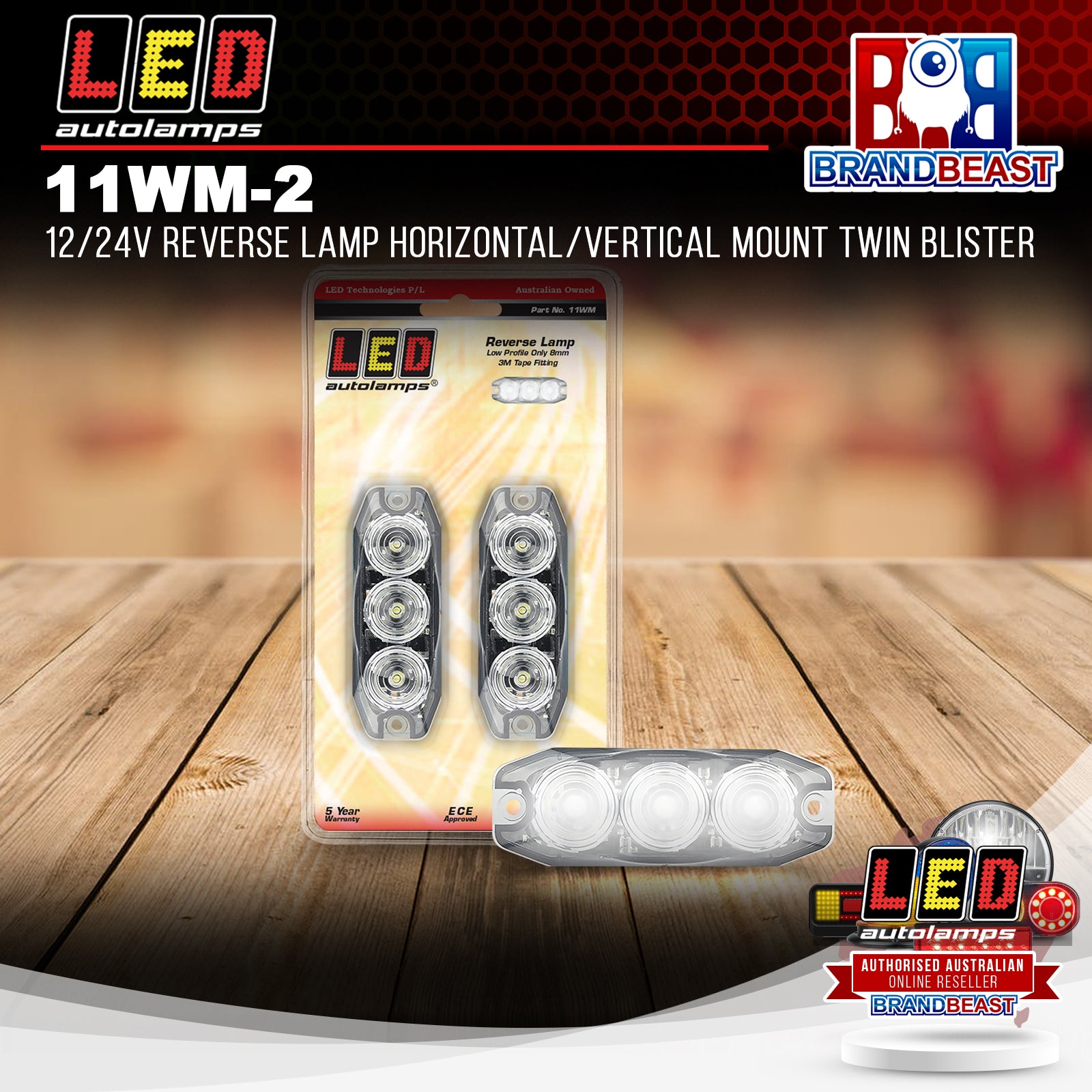

LED Autolamps 11WM-2 12-24V Reverse Lamp Horizon Series 89mm x 30mm x 8mm Low Profile 3M Tape or Screw Mount Horizontal or Vertical ECE Approved IP67
The LED Autolamps 11WM-2 is a 12-24V reverse lamp from the Horizon series. Low-profile 8mm depth in an 89mm x 30mm housing. Mounts via 3M tape or screw fixing in horizontal or vertical orientation. ECE approved, IP67 waterproof. Five-year warranty. Sold individually.
Product overview
The 11WM-2 is a slim, surface-mount reverse lamp suited to trailers, caravans, trucks, and commercial vehicles where a low-profile, flexible-mount solution is required. At just 8mm deep, the Horizon series lamp sits almost flush with the mounting surface. The 3M tape or screw fixing options allow mounting on flat and curved panels alike, and horizontal or vertical orientation is supported. ECE approved for road use. IP67 rated for full waterproof and submersion protection. 12-24V compatible. For matched stop/tail and indicator lamps in the same format, see the 11RM-2 and 11AM-2.
Features and benefits
3M tape or screw fixing: Flexible mounting options for flat and curved panel surfaces.
Horizontal and vertical mount: Suits a wide range of installation orientations.
Low-profile 8mm depth: Horizon series slim design sits almost flush with the mounting surface.
89mm x 30mm housing: Compact form factor for discreet trailer and vehicle body mounting.
ECE approved: Meets international road approval standards for legal on-road use.
IP67 fully waterproof and submersible: Suited to trailer, caravan, and off-road environments.
12V and 24V compatible: Suits light vehicle trailers, caravans, trucks, and heavy transport.
Five-year warranty.
Sold individually.
Technical specs
| Specification |
Detail |
| SKU |
11WM-2 |
| Brand |
LED Autolamps |
| Series |
Horizon |
| Type |
Reverse lamp |
| Light Type |
LED |
| Operating Voltage |
12V to 24V |
| Dimensions |
89mm x 30mm x 8mm |
| Mount Type |
3M tape or screw |
| Orientation |
Horizontal or vertical |
| Waterproof Rating |
IP67 |
| ECE Approved |
Yes |
| Weight |
0.01kg |
| Manufactured In |
China (Taiwan) |
| Sold As |
Each |
| Warranty |
Five years |
Frequently asked questions
Is the 11WM-2 ECE approved? Yes. The 11WM-2 carries ECE approval, confirming compliance for road use as a reverse lamp.
What mounting options does the 11WM-2 offer? The 11WM-2 can be mounted using 3M adhesive tape or screw fixing, in either horizontal or vertical orientation, making it suited to a wide range of panel types and installation positions.
How low-profile is the 11WM-2? The 11WM-2 is 8mm deep part of the LED Autolamps Horizon series, designed for an almost-flush surface mount with minimal protrusion.
Are matched stop/tail and indicator lamps available in the same series? Yes. The LED Autolamps 11RM-2 stop/tail and 11AM-2 rear indicator are in the same Horizon series format, allowing a fully matched rear lighting cluster across all three functions.
What voltage does the 11WM-2 operate on? The 11WM-2 operates on 12V and 24V systems, making it suited to light vehicle trailers, caravans, trucks, and commercial vehicles.
