Description

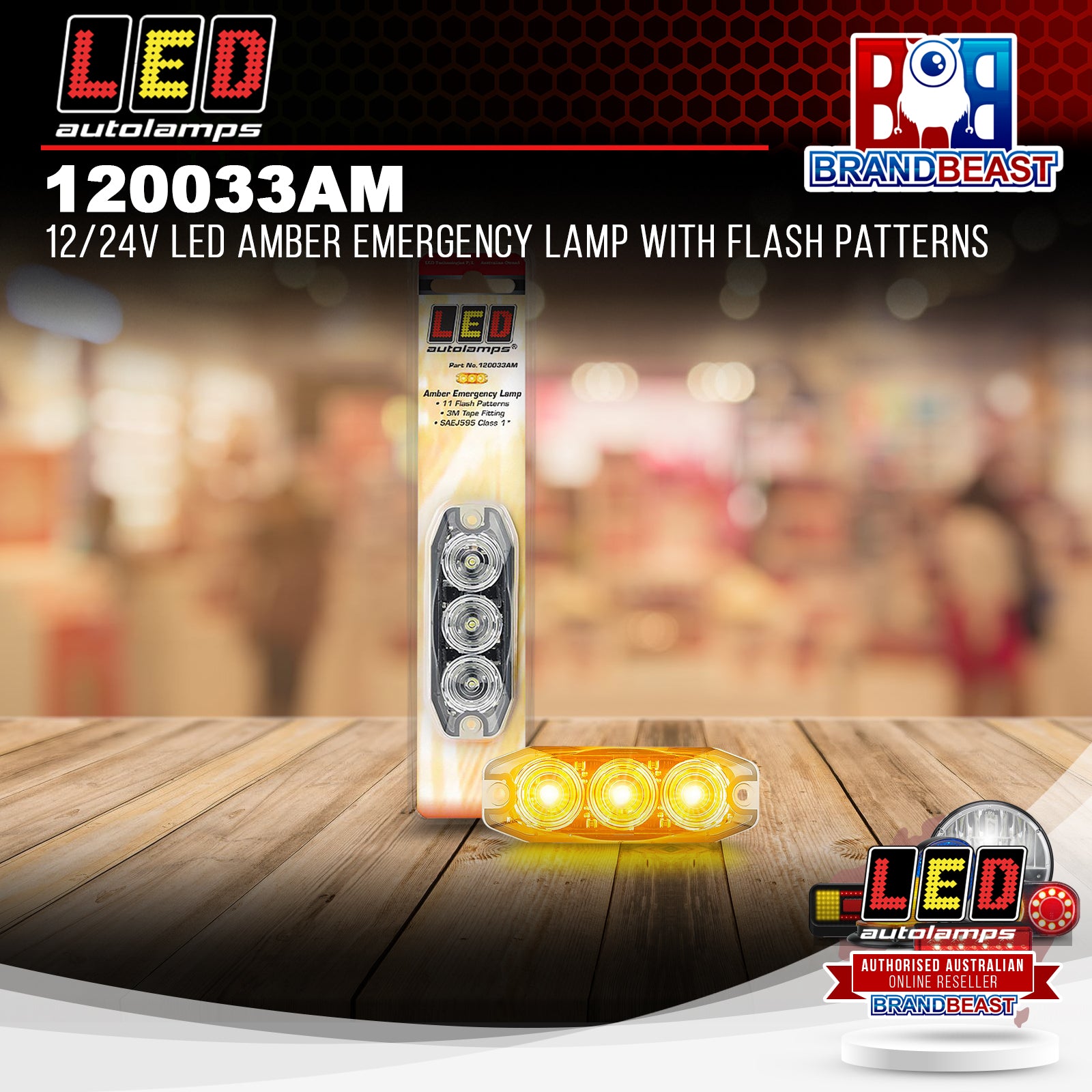

LED Autolamps 120033AM 12-24V Amber LED Emergency Warning Lamp 11 Flash Patterns SAE J595 Class 1 IP67 with Synchronising Wire
The LED Autolamps 120033AM is a 12-24V amber LED emergency warning lamp with 11 selectable flash patterns and a synchronising wire for multi-lamp coordination. SAE J595 Class 1 certified, IP67 waterproof, 3M tape or screw mount. 89mm x 30mm x 8mm. Three-year warranty. Sold individually.
Product overview
The 120033AM is suited to emergency vehicles, service vehicles, and safety applications requiring an amber warning lamp with multiple flash pattern options. The synchronising wire allows multiple lamps to be wired together for coordinated flashing. SAE J595 Class 1 certification confirms high-intensity warning lamp compliance. The 3M tape or screw fixing allows mounting on flat and curved surfaces. IP67 rated. 12-24V compatible across light vehicles and heavy transport. Available in five colours the 120033AM is the amber variant.
Features and benefits
11 selectable flash patterns: Flexible warning output suited to a range of emergency and safety applications.
Synchronising wire: Allows multiple lamps to be coordinated for matched flash patterns across a vehicle.
SAE J595 Class 1 certified: High-intensity warning lamp compliance for emergency and safety vehicle applications.
3M tape or screw fixing: Flexible mounting on flat and curved surfaces.
89mm x 30mm x 8mm: Compact, low-profile housing.
IP67 fully waterproof and submersible: Suited to outdoor and exposed vehicle body mounting.
12V and 24V compatible: Suits light vehicles and heavy transport.
Available in five colours: The 120033AM is the amber variant.
Three-year warranty.
Sold individually.
Technical specs
| Specification |
Detail |
| SKU |
120033AM |
| Brand |
LED Autolamps |
| Type |
Emergency warning lamp |
| LED Colour |
Amber |
| Operating Voltage |
12V to 24V |
| Flash Patterns |
11 |
| Synchronising Wire |
Yes |
| Certification |
SAE J595 Class 1 |
| Mount Type |
3M tape or screw |
| Dimensions |
89mm x 30mm x 8mm |
| Waterproof Rating |
IP67 |
| Weight |
0.039kg |
| Manufactured In |
China (Taiwan) |
| Available Colours |
5 (amber, plus other variants) |
| Sold As |
Each |
| Warranty |
Three years |
Frequently asked questions
What is SAE J595 Class 1 certification? SAE J595 Class 1 is a US-origin standard for warning lamps, specifying minimum photometric output requirements. Class 1 is the highest intensity tier, confirming this lamp meets high-visibility requirements for emergency and safety vehicle applications.
How does the synchronising wire work? The synchronising wire connects multiple 120033AM lamps together so they flash in a coordinated pattern. This allows a matched, simultaneous warning display across multiple lamps on the same vehicle.
What flash patterns does the 120033AM offer? The 120033AM has 11 selectable flash patterns to suit different warning applications and operator preferences.
What voltage does the 120033AM operate on? The 120033AM operates on 12V and 24V systems, making it suited to light vehicles, emergency vehicles, trucks, and heavy transport.
Is the 120033AM available in other colours? Yes. The 120033AM range is available in five colours. The 120033AM is the amber variant. Contact us to confirm the availability of other colour variants.
