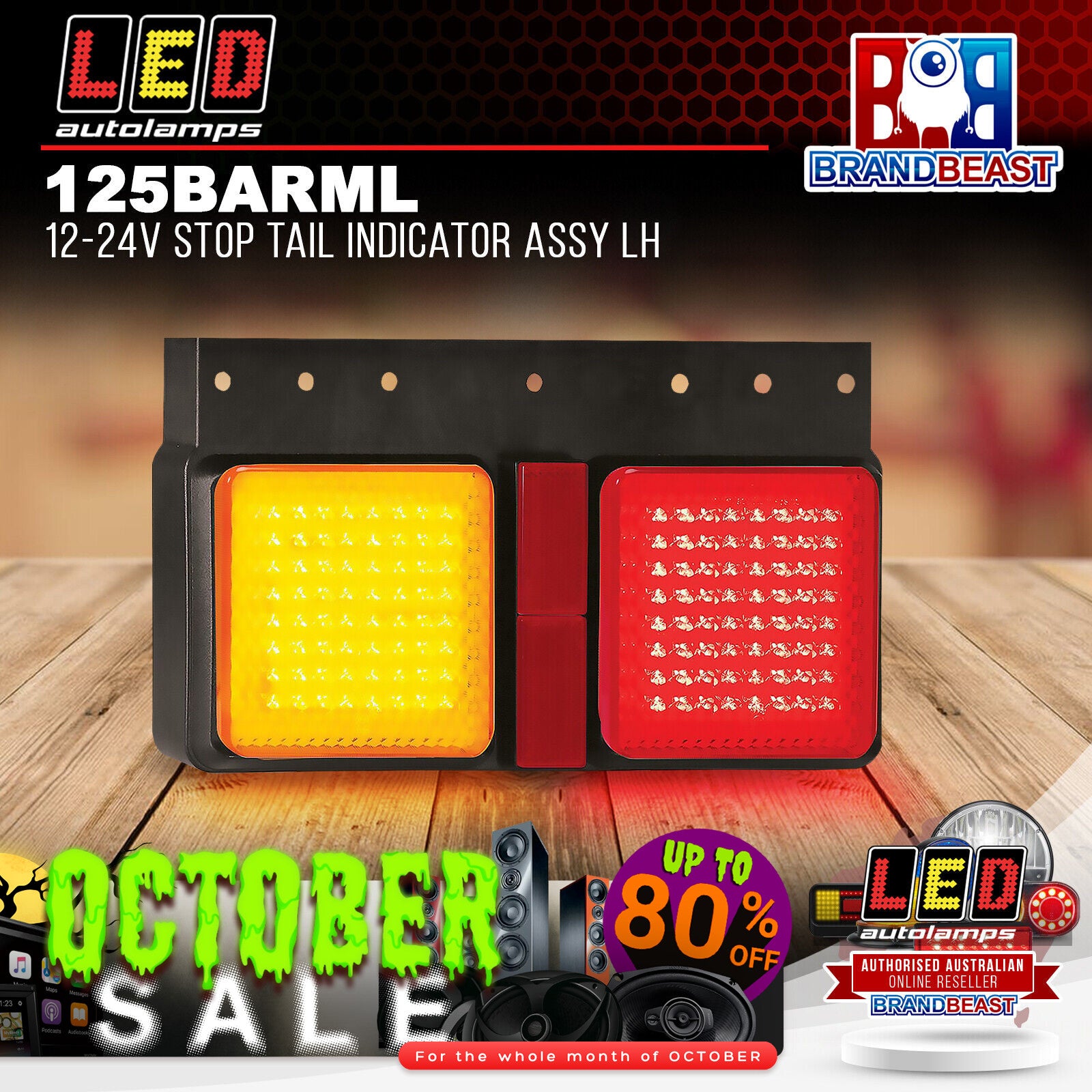

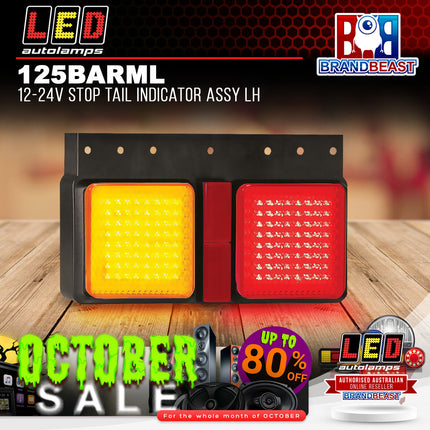

LED Autolamps 125BARML 12-24V Left Hand Rear Combination Assembly Stop Tail Indicator Reflector 128 LEDs 340mm ADR Approved IP67 Medium Truck
The LED Autolamps 125BARML is a 12-24V left-hand rear combination lamp assembly covering stop, tail, indicator, and reflector functions across 128 LEDs. Designed for medium trucks. 340mm x 200mm x 60mm, top or back mount, 40cm pre-wired cable with rear wiring exit. ADR and CTA approved across all functions. IP67 waterproof. Five-year warranty. Pair with the 125BARMR for a complete rear lighting installation.
Product overview
The 125BARML is a purpose-built medium truck rear combination lamp providing comprehensive ADR-compliant rear lighting in a single left-hand assembly. The 128-LED array covers stop, tail, indicator, and reflector functions with full individual ADR and CTA approvals. Current draw at 13.8V: stop 0.42A, tail 0.04A, indicator 0.43A. At 28V: stop 0.26A, tail 0.06A, indicator 0.26A. The assembly mounts horizontally using top or back mounting holes with wiring routed through the rear for a clean installation. The 40cm pre-wired cable is included. Refer to ADR 13/00 for correct mounting compliance requirements. The matching right-hand assembly is the 125BARMR.
Features and benefits
Left-hand specific: Designed for the left side of the vehicle. Pair with the 125BARMR for a complete rear installation.
128 LEDs across four functions: High LED count delivering strong, consistent stop, tail, indicator, and reflector output.
Designed for medium trucks: 340mm x 200mm form factor and mounting system engineered for medium truck body applications.
Comprehensive ADR and CTA approvals: Individually certified across stop/tail, indicator, and reflector functions with full CRN and CTA references.
IP67 fully waterproof and submersible: Suited to demanding transport environments.
12V and 24V compatible: Suits light commercial vehicles and 24V heavy transport.
40cm pre-wired cable: Wiring routes through the rear of the assembly for a clean installation.
Top or back mount: Refer to ADR 13/00 for correct mounting instructions.
Five-year warranty.
Technical specs
| Specification |
Detail |
| SKU |
125BARML |
| Brand |
LED Autolamps |
| Side |
Left hand |
| Type |
Stop/tail/indicator/reflector combination assembly |
| LED Count |
128 |
| Operating Voltage |
12V to 24V |
| Current Draw (Stop) |
0.42A at 13.8V / 0.26A at 28V |
| Current Draw (Tail) |
0.04A at 13.8V / 0.06A at 28V |
| Current Draw (Indicator) |
0.43A at 13.8V / 0.26A at 28V |
| Dimensions |
340mm x 200mm x 60mm |
| Cable Length |
40cm |
| Wiring Exit |
Rear |
| Mount Type |
Top or back mount (refer ADR 13/00) |
| Waterproof Rating |
IP67 |
| ADR Stop/Tail |
ADR 49/00, CRN 33403 |
| ADR Indicator |
ADR 6/00 Cat 2a, CRN 33165 |
| ADR Reflector |
ADR 47/00, CRN 38102 |
| CTA Stop/Tail/Indicator |
CTA-060220 |
| CTA Reflector |
CTA-060056 |
| Right-Hand Pair |
125BARMR |
| Warranty |
Five years |
ADR approvals
| Function |
ADR Category |
CRN |
CTA |
| Stop/Tail |
ADR 49/00 |
CRN 33403 |
CTA-060220 |
| Indicator |
ADR 6/00 Cat 2a |
CRN 33165 |
CTA-060220 |
| Reflector |
ADR 47/00 |
CRN 38102 |
CTA-060056 |
Frequently asked questions
Is the 125BARML approved for road use in Australia? Yes. The 125BARML holds full ADR and CTA approvals across all functions stop/tail (ADR 49/00 CRN 33403), indicator (ADR 6/00 Cat 2a CRN 33165), and reflector (ADR 47/00 CRN 38102) confirming compliance for legal on-road use in Australia.
What is the right-hand pair for the 125BARML? The matching right-hand assembly is the LED Autolamps 125BARMR. Both should be fitted together for a complete and compliant rear lighting installation.
How is the 125BARML mounted? The 125BARML mounts horizontally using top or back mounting holes, with wiring routed through the rear of the assembly. Refer to ADR 13/00 for correct mounting instructions and compliance requirements.
What functions does the 125BARML cover? The 125BARML combines stop, tail, indicator, and reflector in a single left-hand assembly, providing a complete rear lighting solution for medium trucks in one unit per side.
What warranty does the 125BARML carry? Five-year manufacturer warranty.
