Description

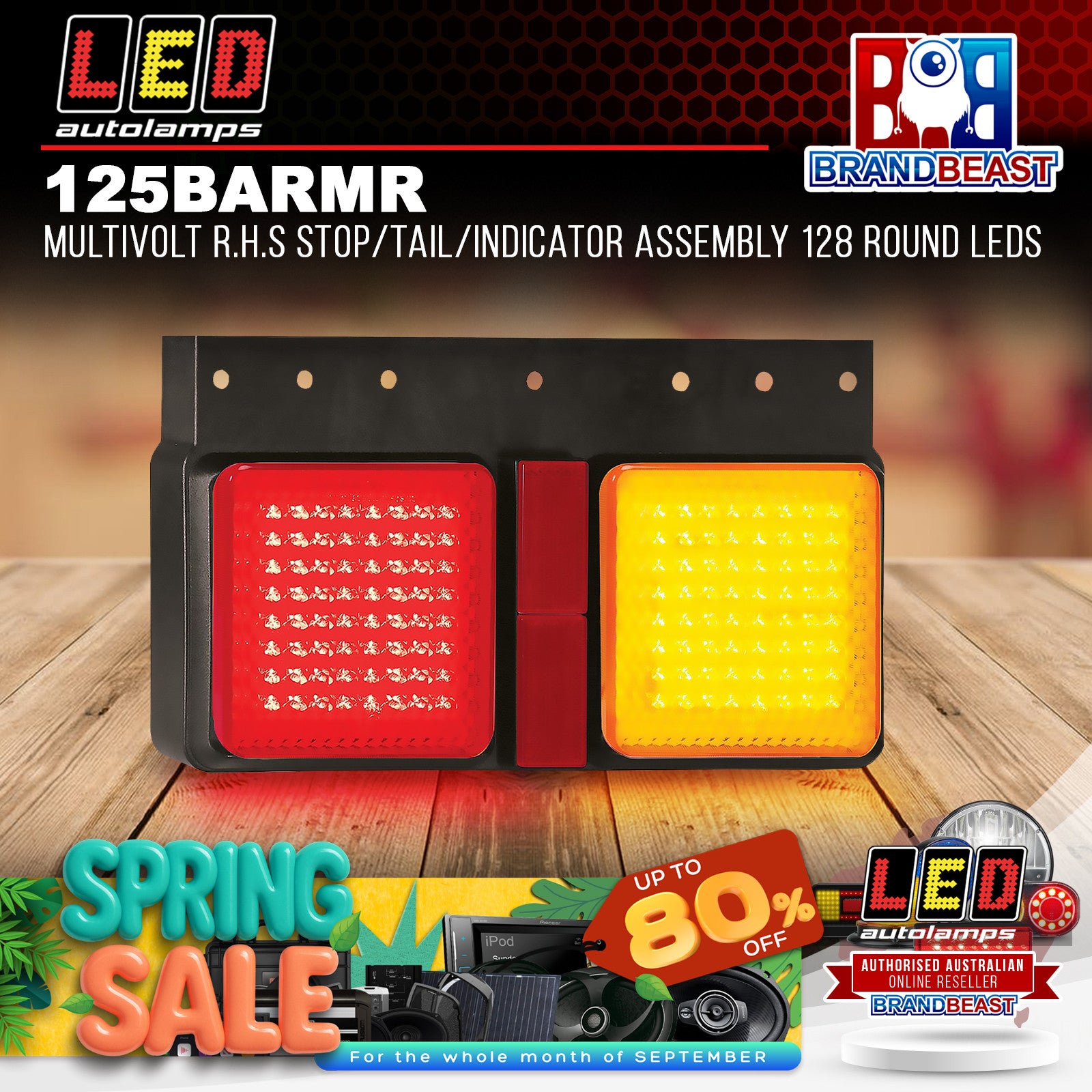

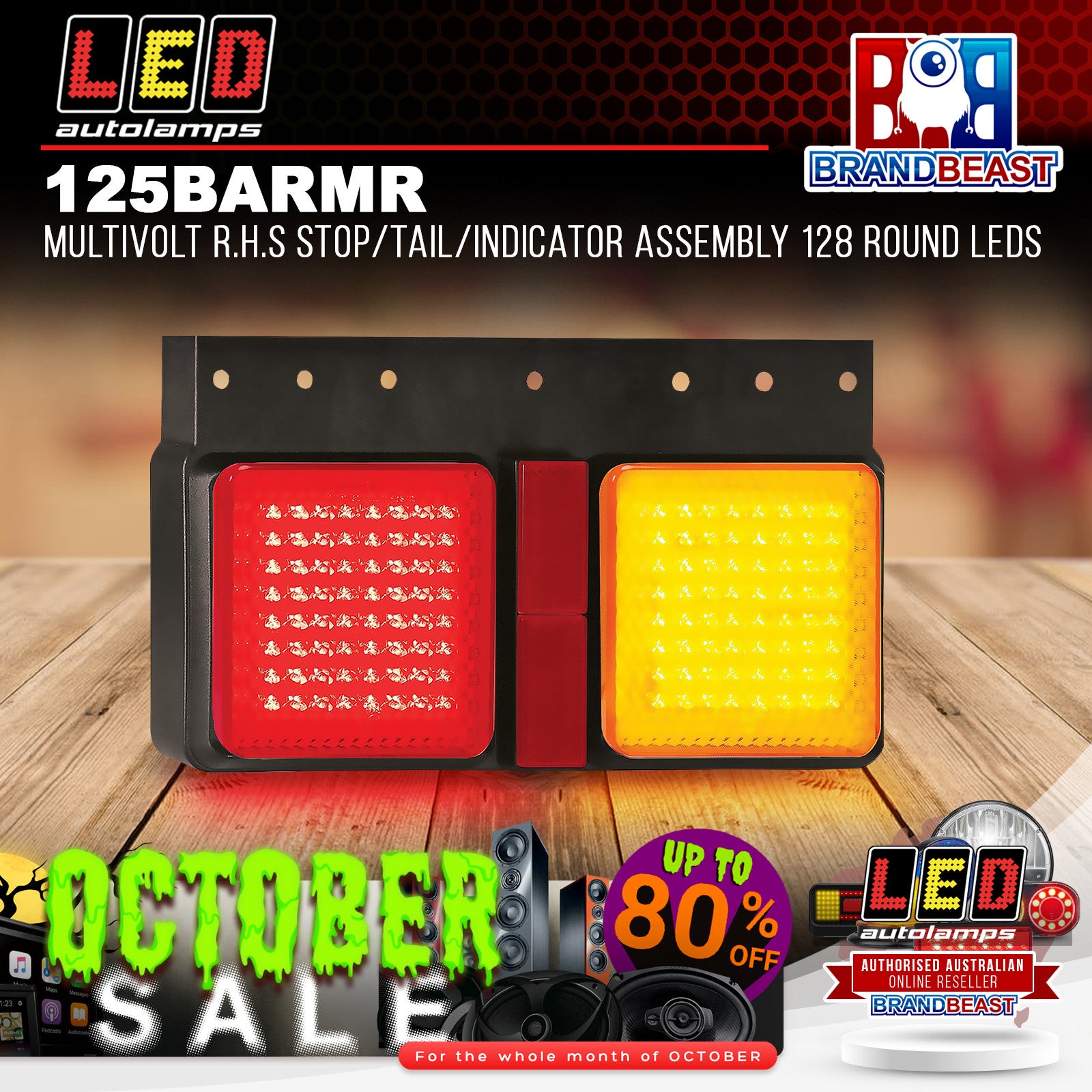

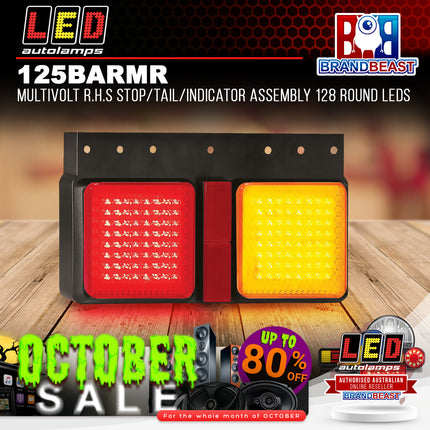

LED Autolamps 125BARMR 12-24V Right Hand Rear Combination Assembly Stop Tail Indicator 128 LEDs 340mm ADR Approved IP67 Medium Truck
The LED Autolamps 125BARMR is a 12-24V right-hand rear combination lamp assembly covering stop, tail, and indicator functions across 128 LEDs. Designed for medium trucks. 340mm x 200mm x 60mm. ADR approved, IP67 waterproof. Five-year warranty. Pair with the 125BARML for a complete rear lighting installation.
Product overview
The 125BARMR is the right-hand counterpart to the 125BARML, completing a matched pair for medium truck rear combination lighting. The 128-LED array covers stop, tail, and indicator functions in a black housing. ADR approved for road use in Australia. IP67 rated for full waterproof and submersion protection. 12-24V compatible across light commercial vehicles and heavy transport. The matching left-hand assembly is the 125BARML.
Features and benefits
Right-hand specific: Designed for the right side of the vehicle. Pair with the 125BARML for a complete rear installation.
128 LEDs across stop, tail, and indicator functions: High LED count delivering strong, consistent rear lighting output.
Designed for medium trucks: 340mm x 200mm form factor suited to medium truck body applications.
ADR approved: Compliant for road use in Australia.
IP67 fully waterproof and submersible: Suited to demanding transport environments.
12V and 24V compatible: Suits light commercial vehicles and 24V heavy transport.
Black housing.
Five-year warranty.
Technical specs
| Specification |
Detail |
| SKU |
125BARMR |
| Brand |
LED Autolamps |
| Side |
Right hand |
| Type |
Stop/tail/indicator combination assembly |
| LED Count |
128 |
| Light Type |
LED |
| Operating Voltage |
12V to 24V |
| Housing Colour |
Black |
| Dimensions |
340mm x 200mm x 60mm |
| Waterproof Rating |
IP67 |
| ADR Approved |
Yes |
| Weight |
1.4kg |
| Manufactured In |
China (Taiwan) |
| Left-Hand Pair |
125BARML |
| Warranty |
Five years |
Frequently asked questions
Is the 125BARMR approved for road use in Australia? Yes. The 125BARMR carries ADR approval, confirming compliance for road use in Australia as a rear combination lamp. Contact us to confirm the specific ADR CRN and CTA approval references before purchasing for compliance documentation purposes.
What is the left-hand pair for the 125BARMR? The matching left-hand assembly is the LED Autolamps 125BARML. Both should be fitted together for a complete and compliant rear lighting installation.
What functions does the 125BARMR cover? The 125BARMR combines stop, tail, and indicator functions in a single right-hand assembly, providing a complete rear lighting solution for medium trucks in one unit per side.
What voltage does the 125BARMR operate on? The 125BARMR operates on 12V and 24V systems, making it suited to both light commercial vehicles and 24V heavy transport applications.
What warranty does the 125BARMR carry? Five-year manufacturer warranty.
