Description

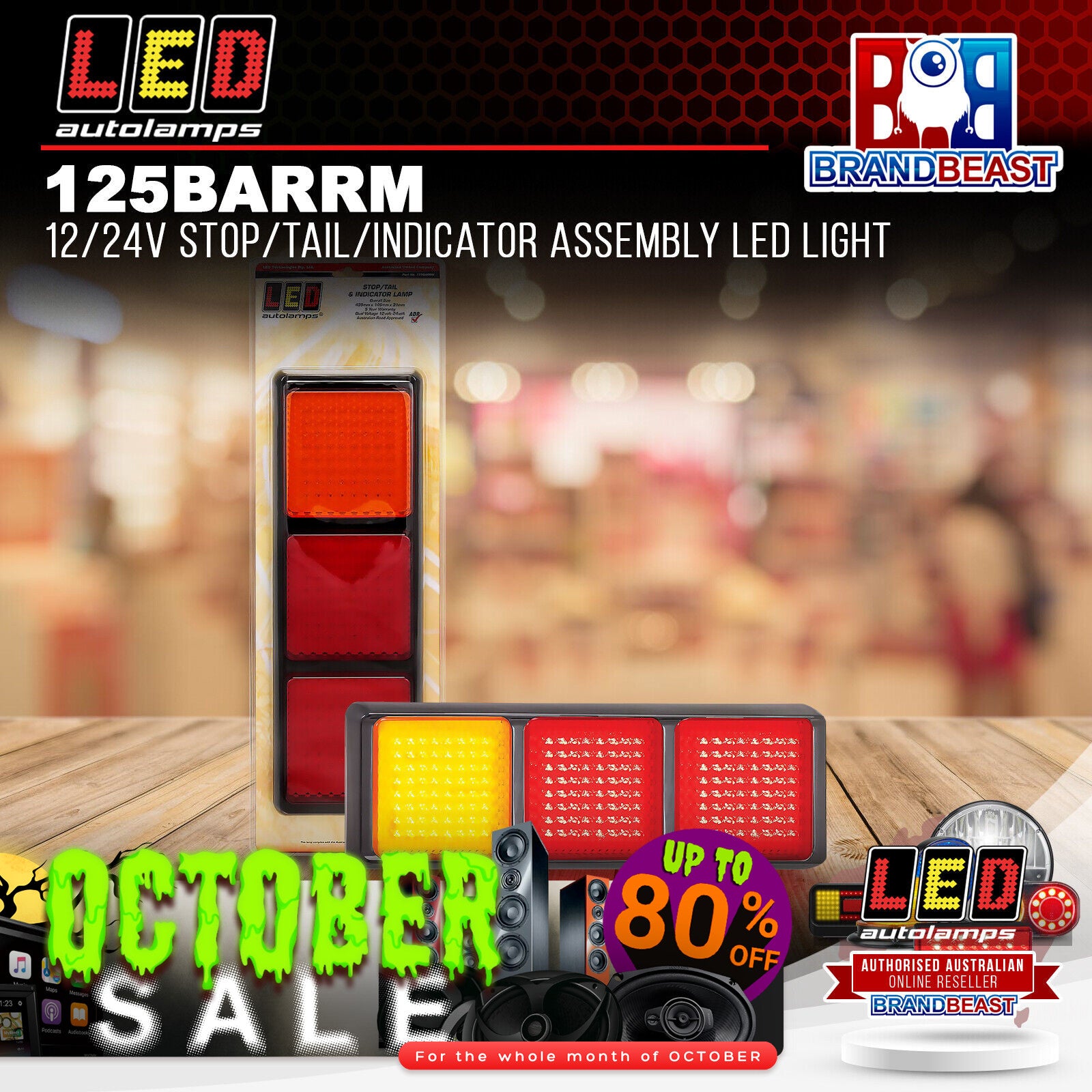

LED Autolamps 125BARRM 12-24V LED Stop Tail Indicator Combination Assembly 435mm Individual Replaceable Lenses ADR Approved IP67
The LED Autolamps 125BARRM is a 12-24V LED stop/tail/indicator combination lamp assembly in a 435mm x 146mm x 31mm black housing with individual replaceable lenses. ADR approved, IP67 waterproof. Five-year warranty.
Product overview
The 125BARRM is a larger format multi-module LED lamp assembly suited to trailers, caravans, and commercial vehicles requiring a combined stop, tail, and indicator cluster in a single 435mm unit. Individual lens replacements allow each lens section to be serviced independently without replacing the full assembly. ADR approved for road use in Australia. 12-24V compatible across light vehicle and heavy transport applications. IP67 rated.
Features and benefits
Stop, tail, and indicator in a single 435mm assembly: Combined lamp cluster for trailer, caravan, and commercial vehicle rear lighting.
Individual replaceable lenses: Each lens section can be replaced independently without removing or replacing the full assembly.
ADR approved: Compliant for road use in Australia.
IP67 fully waterproof and submersible: Suited to outdoor and trailer environments.
12V and 24V compatible: Suits light vehicle trailers, caravans, trucks, and heavy transport.
Black housing.
Five-year warranty.
Technical specs
| Specification |
Detail |
| SKU |
125BARRM |
| Brand |
LED Autolamps |
| Type |
Stop/tail/indicator combination assembly |
| Light Type |
LED |
| Operating Voltage |
12V to 24V |
| Housing Colour |
Black |
| Dimensions |
435mm x 146mm x 31mm |
| Lens |
Individual replaceable |
| Waterproof Rating |
IP67 |
| ADR Approved |
Yes |
| Weight |
0.991kg |
| Manufactured In |
China (Taiwan) |
| Warranty |
Five years |
Frequently asked questions
Is the 125BARRM ADR approved? Yes. The 125BARRM carries ADR approval, confirming compliance for road use in Australia as a stop/tail/indicator combination lamp. Contact us to confirm specific ADR CRN approval references before purchasing for compliance documentation purposes.
What voltage does the 125BARRM operate on? The 125BARRM operates on 12V and 24V systems, making it suited to light vehicle trailers, caravans, trucks, and commercial vehicles.
What does individual lens replacement mean? The 125BARRM features individually replaceable lens sections for each lamp function. If one lens is damaged, only that section needs to be replaced rather than the full assembly, reducing servicing cost and downtime.
How does the 125BARRM compare to the 100BARRM? The 125BARRM measures 435mm x 146mm and is suited to applications requiring a larger stop/tail/indicator assembly. The 100BARRM measures 350mm x 120mm. Both feature individual replaceable lenses and 12-24V compatibility. Confirm which size suits your mounting location before purchasing.
