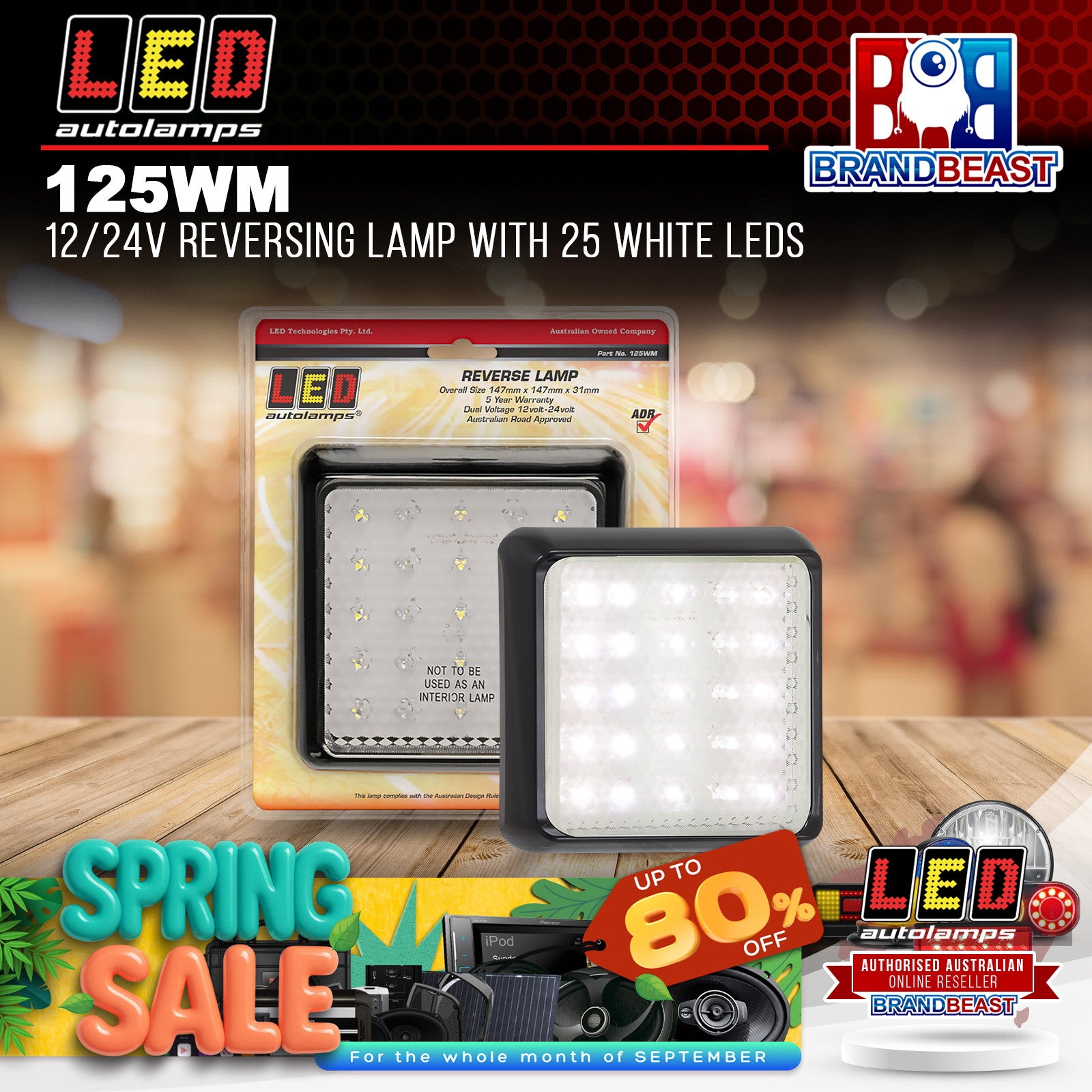

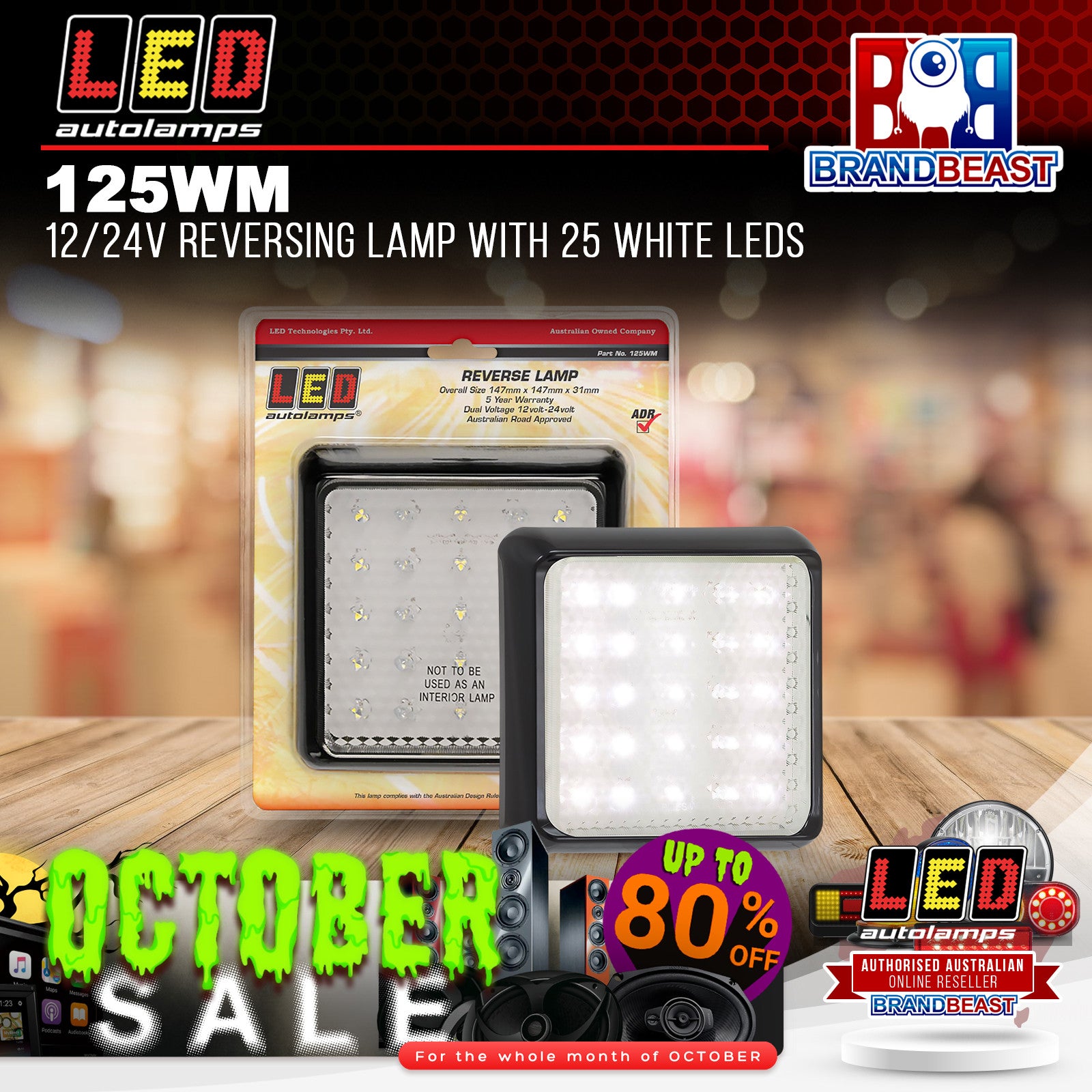

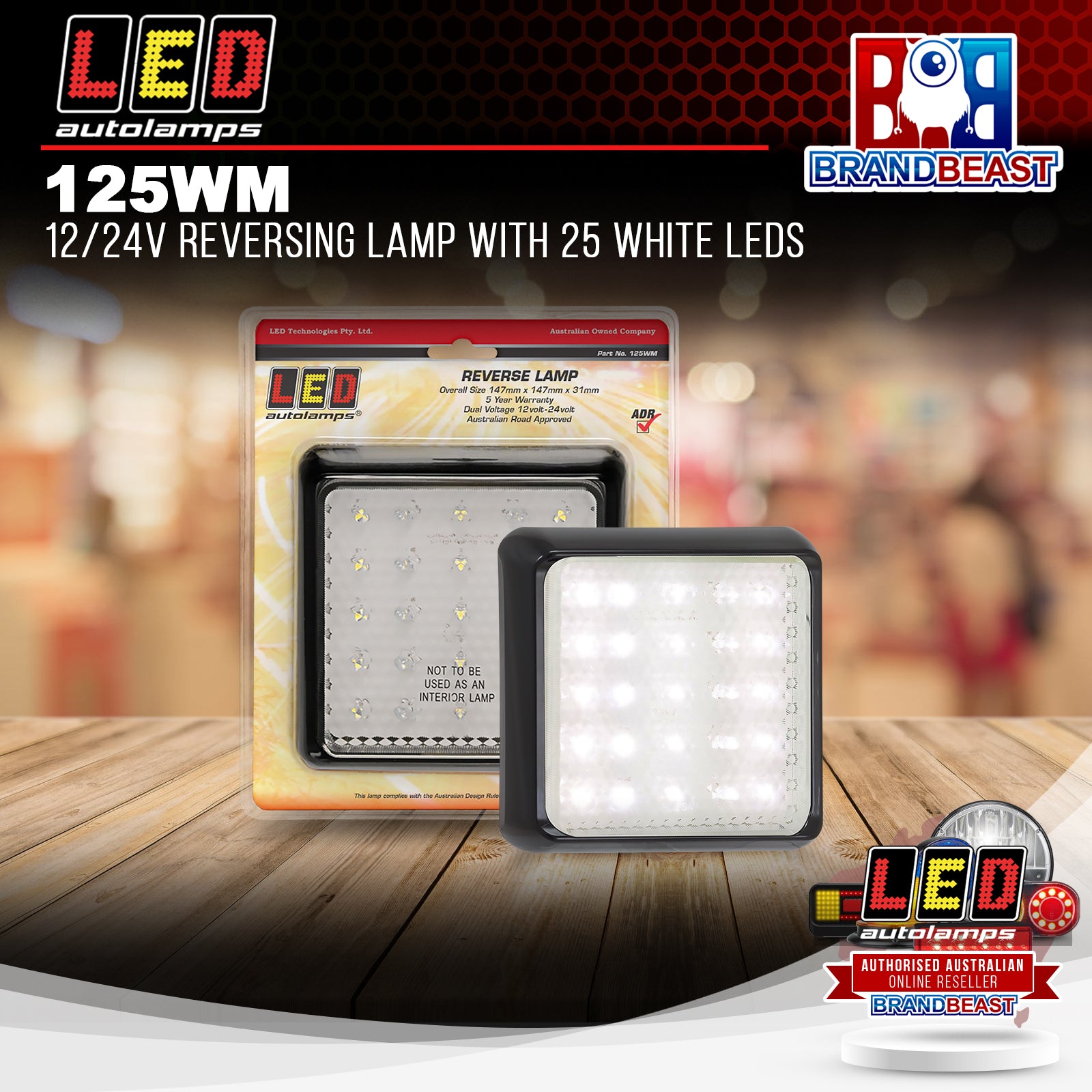

LED Autolamps 125WM 12-24V Square LED Reversing Lamp 25 White LEDs 147mm Clip-In Replaceable Lens ADR Approved IP67
The LED Autolamps 125WM is a 12-24V square reversing lamp with 25 white LEDs in the 147mm x 147mm x 31mm 125 series form factor. ADR approved, IP67 waterproof, clip-in replaceable lens, surface mount. Five-year warranty. Matches the 125AM indicator and 125RM stop/tail lamps for a uniform rear lighting set.
Product overview
The 125WM completes the LED Autolamps 125 series rear lighting set, adding a reversing lamp in the same 147mm square form factor as the 125AM and 125RM. Suited to trailers, trucks, caravans, and tray body applications requiring a larger-format ADR-approved reversing lamp. The clip-in replaceable lens allows quick lens swaps without replacing the full housing. Pre-wired surface mount. ADR approved for road use in Australia. IP67 rated. 12-24V compatible.
Features and benefits
25 white LEDs: Clear, bright reverse light output for improved rearward visibility.
147mm square form factor: Matches the 125AM indicator and 125RM stop/tail lamps for a uniform rear lighting set.
Clip-in replaceable lens: Lens swaps independently from the housing without replacing the full unit.
ADR road approved: Compliant for road use in Australia as a reversing lamp.
IP67 fully waterproof and submersible: Suited to exposed outdoor and transport environments.
12V and 24V compatible: Suits light vehicles and 24V heavy transport.
Surface mount.
Five-year warranty.
Technical specs
| Specification |
Detail |
| SKU |
125WM |
| Brand |
LED Autolamps |
| Series |
125 Series |
| Type |
Reversing lamp |
| LED Count |
25 |
| LED Colour |
White |
| Operating Voltage |
12V to 24V |
| Dimensions |
147mm x 147mm x 31mm |
| Mount Type |
Surface mount |
| Lens |
Clip-in replaceable |
| Waterproof Rating |
IP67 |
| ADR Approved |
Yes |
| Warranty |
Five years |
Frequently asked questions
Is the 125WM approved for road use in Australia? Yes. The 125WM is ADR road approved, meeting Australian Design Rules requirements for road-legal use as a reversing lamp.
How does the 125WM fit with other 125 series lamps? The 125WM shares the same 147mm x 147mm x 31mm form factor as the 125AM indicator and 125RM stop/tail lamps, making it a natural match for a uniform full-function rear lighting set across all three.
What does the clip-in replaceable lens mean for maintenance? The lens clips out independently from the housing and can be replaced without swapping the entire lamp unit, saving cost and reducing installation time when a lens is damaged.
What is the IP rating on the 125WM? The 125WM is rated IP67, meaning it is fully sealed against dust and capable of withstanding water immersion, suited to exposed trailer and truck body mounting.
What warranty does the 125WM carry? Five-year manufacturer warranty.
