Description

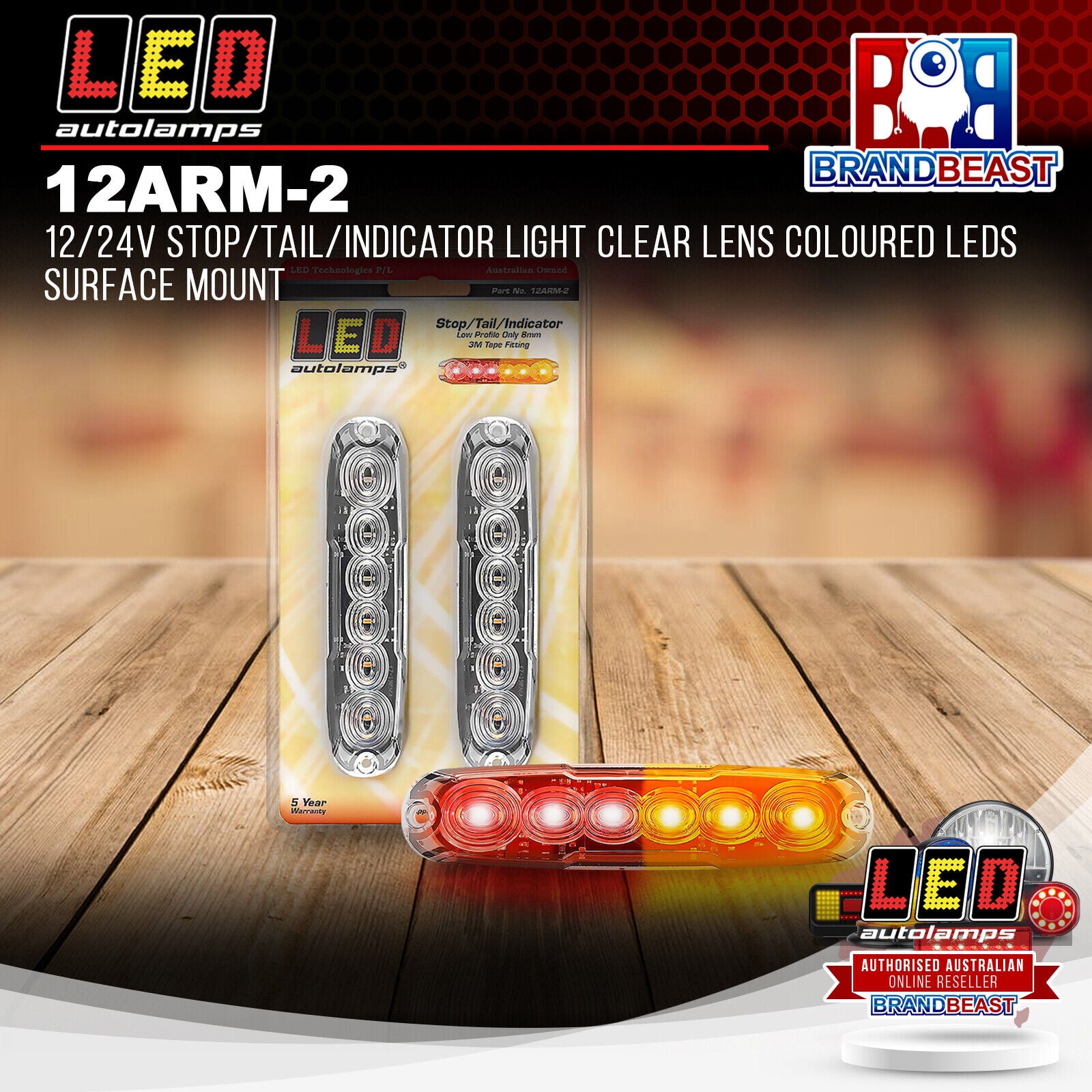

LED Autolamps 12ARM-2 12-24V Stop Tail Indicator Combination Lamp Clear Lens 131mm x 30mm x 8mm Low Profile 3M Tape or Screw Mount ECE Approved IP67
The LED Autolamps 12ARM-2 is a 12-24V LED stop/tail/indicator combination lamp with a clear polycarbonate lens in a low-profile 131mm x 30mm x 8mm format. ECE approved, IP67 waterproof, 3M tape or screw mount, horizontal or vertical fitting, 0.25m cable. 48mm mounting centres. Five-year warranty. Sold individually.
Product overview
The 12ARM-2 combines stop, tail, and indicator functions in a single low-profile unit suited to trailers, caravans, trucks, and commercial vehicles where a slim, flexible-mount combination lamp is required. The clear polycarbonate lens appears neutral when inactive. At just 8mm deep, the lamp mounts almost flush to the surface using 3M tape or screw fixing. Current draw at 13.3V: stop 0.20A, tail 0.02A, indicator 0.16A. Mounting centres are 48mm. 0.25m cable. ECE approved. IP67 rated. 12-24V compatible.
Features and benefits
Stop, tail, and indicator in a single 131mm unit: Low-profile combination lamp with clear lens for discreet trailer and vehicle body mounting.
Clear polycarbonate lens: Appears neutral when inactive, illuminates with correct stop/tail/indicator output when active.
8mm low-profile depth: 131mm x 30mm x 8mm housing for a near-flush surface mount.
3M tape or screw fixing: Flexible mounting in horizontal or vertical orientation. 3M tape supplied.
ECE road approved: Meets international road approval standards accepted for on-road use in Australia.
IP67 fully waterproof and submersible: Suited to trailer, caravan, and off-road environments.
12V and 24V compatible: Suits light vehicle trailers, caravans, trucks, and heavy transport.
0.25m cable.
48mm mounting centres.
Five-year warranty.
Sold individually.
Technical specs
| Specification |
Detail |
| SKU |
12ARM-2 |
| Brand |
LED Autolamps |
| Type |
Stop/tail/indicator combination lamp |
| Light Type |
LED |
| Lens |
Clear polycarbonate |
| Base Material |
Polycarbonate |
| Operating Voltage |
12V to 24V |
| Current Draw (Stop) |
0.20A at 13.3V |
| Current Draw (Tail) |
0.02A at 13.3V |
| Current Draw (Indicator) |
0.16A at 13.3V |
| Dimensions |
131mm x 30mm x 8mm |
| Mounting Centres |
48mm |
| Mount Type |
Surface mount |
| Orientation |
Horizontal or vertical |
| Connector |
0.25m cable |
| Includes |
3M tape |
| Waterproof Rating |
IP67 |
| ECE Approved |
Yes |
| Weight |
0.1kg |
| Manufactured In |
China (Taiwan) |
| Sold As |
Each |
| Warranty |
Five years |
Frequently asked questions
Is the 12ARM-2 ECE approved? Yes. The 12ARM-2 carries ECE approval, meeting international road approval standards accepted for on-road use in Australia.
What mounting options does the 12ARM-2 offer? The 12ARM-2 can be mounted using the supplied 3M adhesive tape or screws in either horizontal or vertical orientation, suited to a wide range of panel types and installation positions.
What are the mounting centres for the 12ARM-2? The 12ARM-2 has 48mm mounting centres between fixing points. Confirm this suits your mounting location before purchasing.
What is the current draw of the 12ARM-2? At 13.3V: stop draws 0.20A, tail draws 0.02A, and indicator draws 0.16A.
Is the 12ARM-2 sold as a single unit or a pair? Sold individually.
