Description

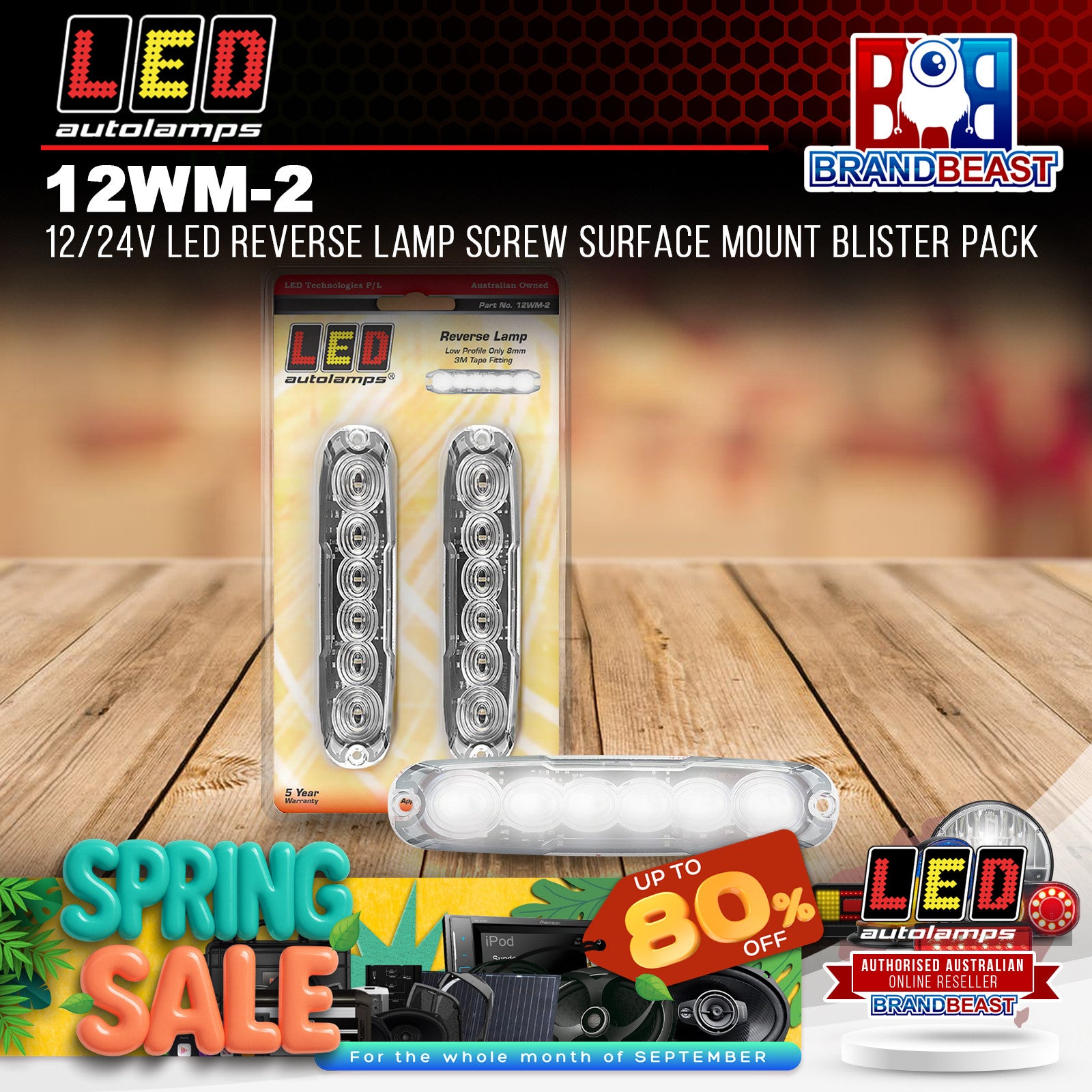

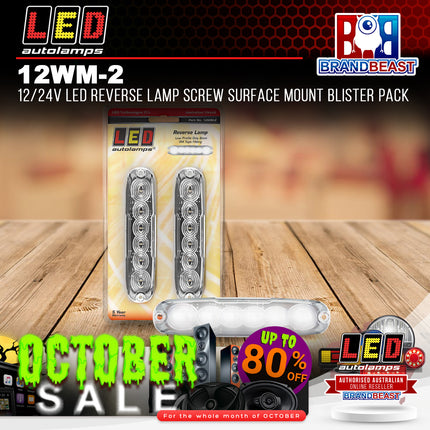

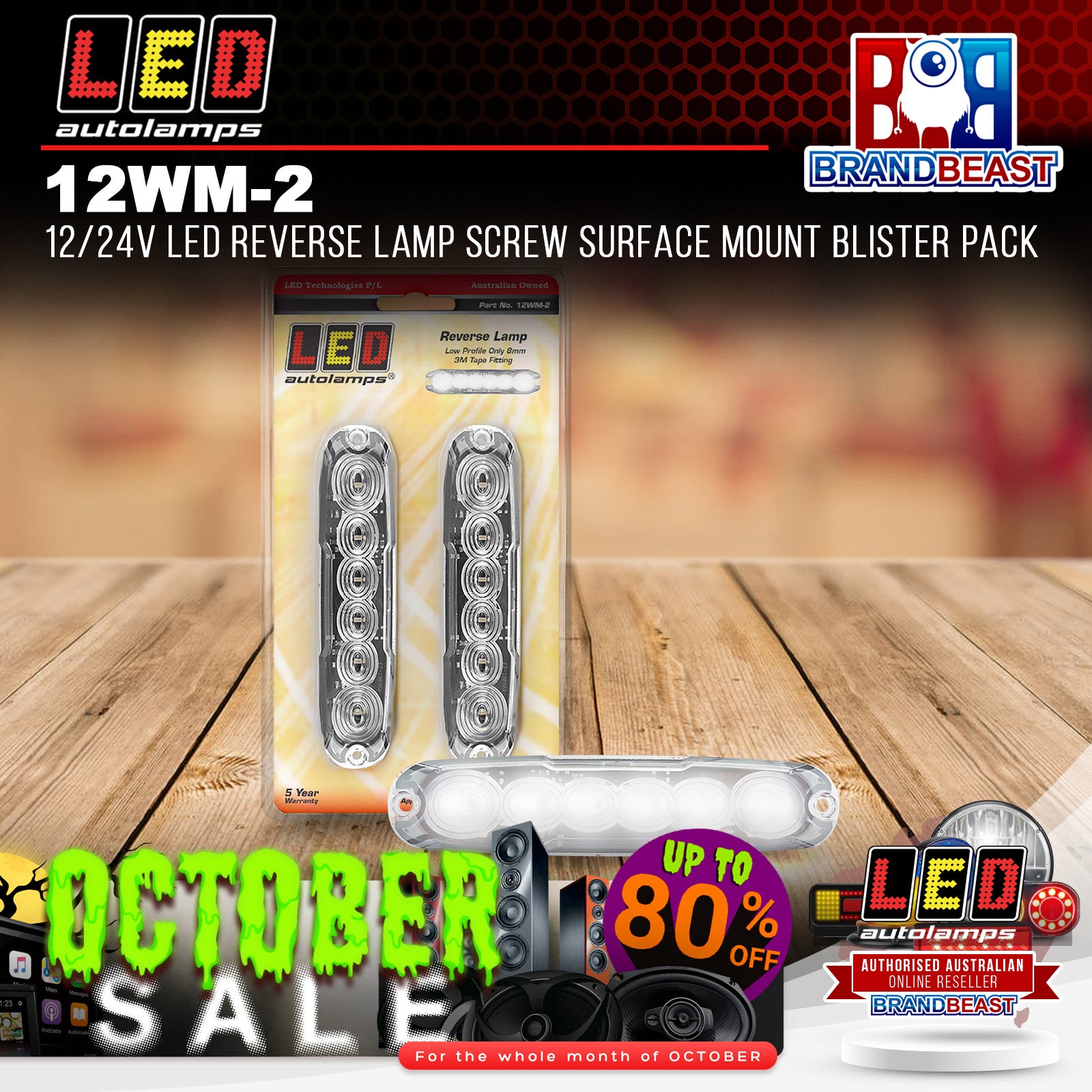

LED Autolamps 12WM-2 12-24V LED Reverse Lamp Low Profile 131mm x 30mm x 8mm 3M Tape or Screw Mount ECE Approved CTA060224 IP67
The LED Autolamps 12WM-2 is a 12-24V LED reverse lamp in a low-profile 131mm x 30mm x 8mm format. ECE approved (ECE E9 23R, CTA060224), IP67 waterproof, 0.21A at 13.8V, 0.4m cable, 3M tape or screw mount. Five-year warranty. Sold individually.
Product overview
The 12WM-2 is a compact low-profile reverse lamp suited to trailers, caravans, trucks, and commercial vehicles where a slim surface-mount solution is required. At just 8mm deep, it mounts almost flush with the surface using 3M tape or screw fixing. ECE approval CTA060224 confirms road-legal use as a reverse lamp. Current draw is 0.21A at 13.8V. The 0.4m cable allows direct wiring to the reverse circuit. IP67 rated. 12-24V compatible. For matched stop/tail and indicator lamps in the same format, see the 12RCM-2 and 12ACM-2.
Features and benefits
LED reverse lamp output: White reverse light output for improved rearward visibility.
Low-profile 8mm depth: 131mm x 30mm x 8mm compact housing for a near-flush surface mount.
3M tape or screw fixing: Flexible mounting on flat and curved surfaces.
ECE approved (CTA060224): Meets international road approval standards accepted for on-road use in Australia.
IP67 fully waterproof and submersible: Suited to trailer, caravan, and off-road environments.
12V and 24V compatible: Suits light vehicle trailers, caravans, trucks, and heavy transport.
0.4m cable.
0.21A current draw at 13.8V.
Five-year warranty.
Sold individually.
Technical specs
| Specification |
Detail |
| SKU |
12WM-2 |
| Brand |
LED Autolamps |
| Type |
Reverse lamp |
| Light Type |
LED |
| Operating Voltage |
12V to 24V |
| Current Draw |
0.21A at 13.8V |
| Dimensions |
131mm x 30mm x 8mm |
| Mount Type |
3M tape or screw |
| Connector |
0.4m cable |
| Waterproof Rating |
IP67 |
| ECE Compliance |
ECE E9 23R, CTA060224 |
| Weight |
0.1kg |
| Manufactured In |
China (Taiwan) |
| Sold As |
Each |
| Warranty |
Five years |
Frequently asked questions
Is the 12WM-2 ECE approved? Yes. The 12WM-2 holds ECE approval CTA060224 (ECE E9 23R), confirming compliance for road use in Australia as a reverse lamp.
What mounting options does the 12WM-2 offer? The 12WM-2 can be mounted using 3M adhesive tape or screws, suited to flat and curved panel surfaces.
Are matched stop/tail and indicator lamps available in the same format? Yes. The 12RCM-2 stop/tail and 12ACM-2 indicator are available in the same 131mm x 30mm x 8mm format, allowing a fully matched rear lighting set across all three functions.
What is the current draw of the 12WM-2? The 12WM-2 draws 0.21A at 13.8V.
Is the 12WM-2 sold as a single unit or a pair? Sold individually.
