Description

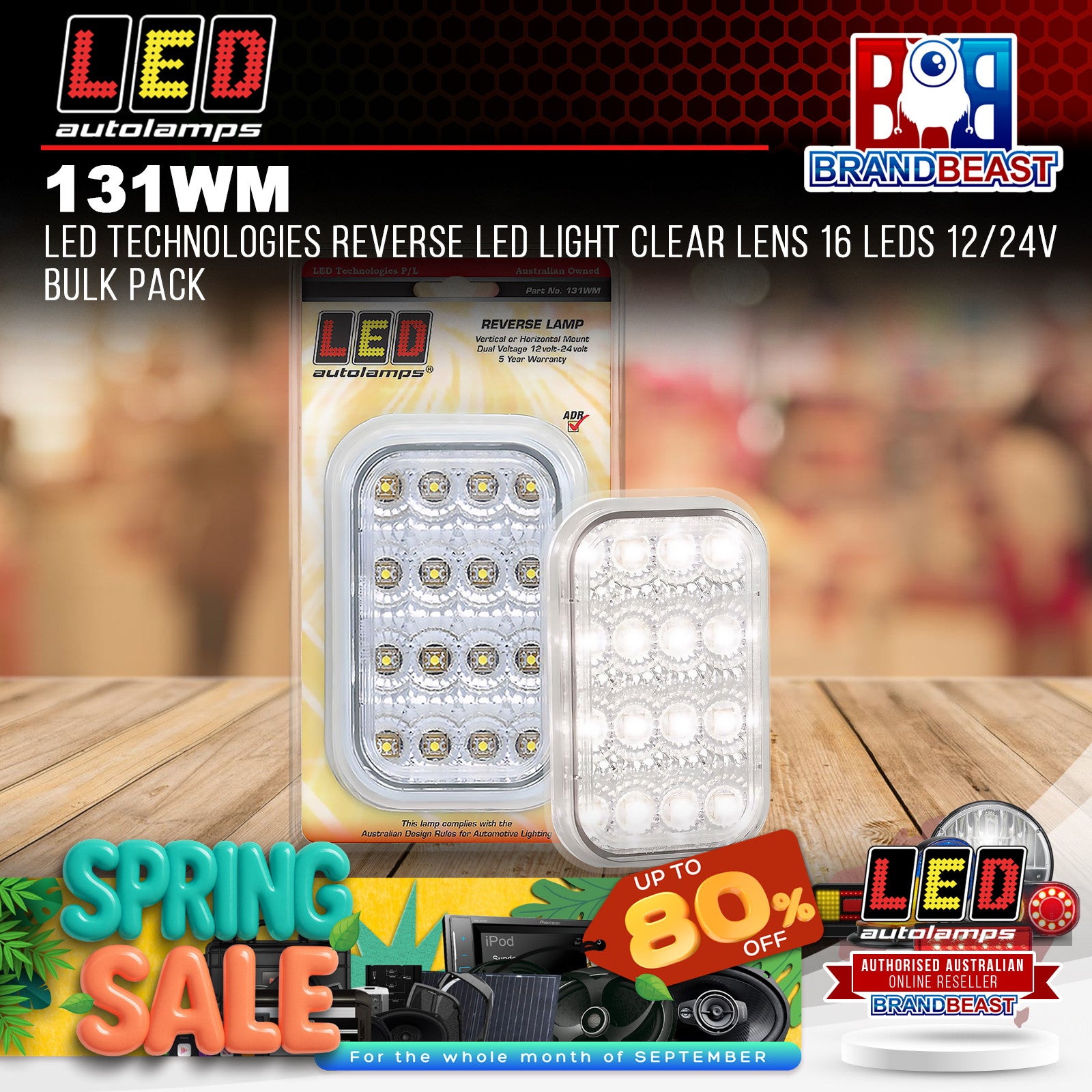

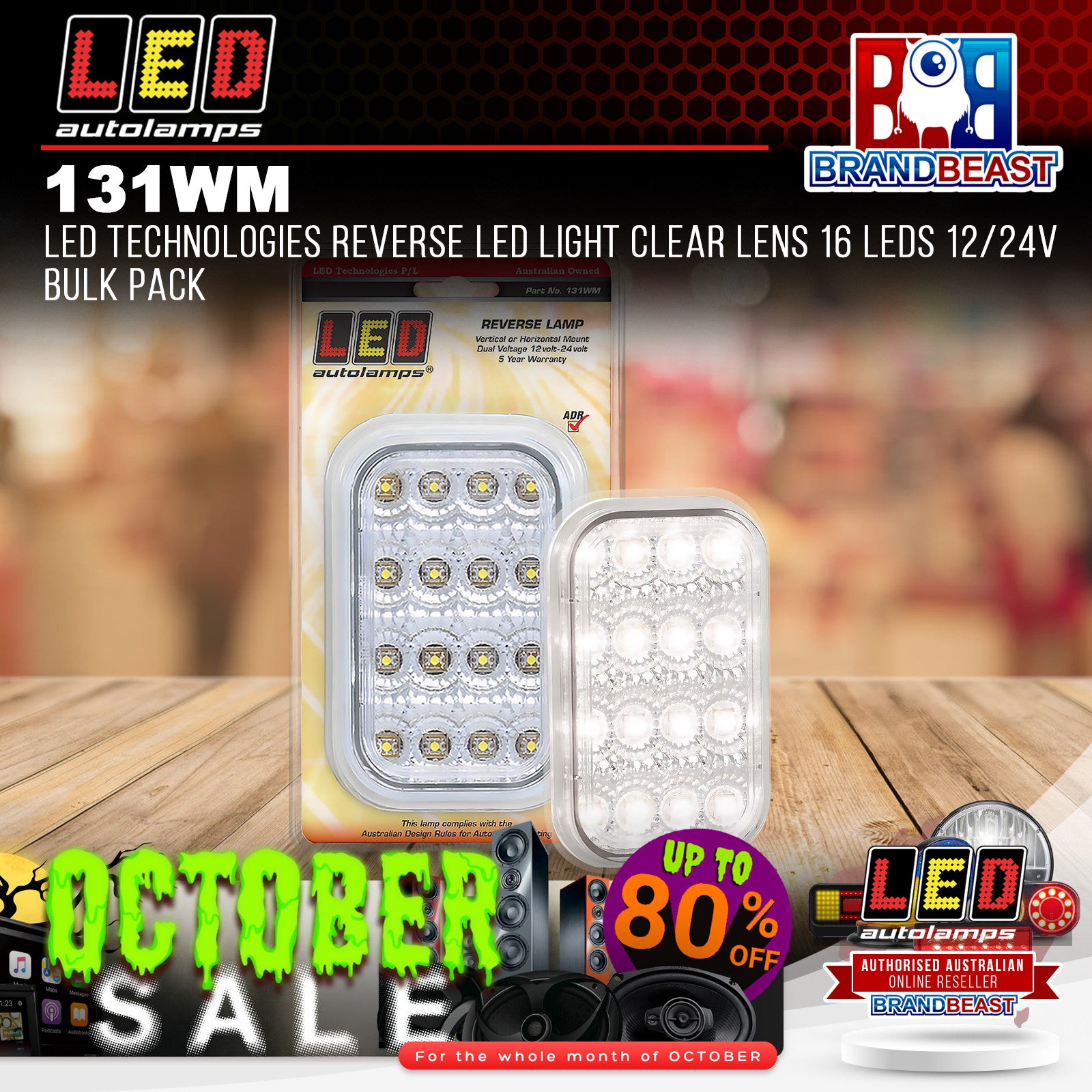

LED Autolamps 131WM 12-24V LED Reverse Lamp Clear Lens 16 LEDs with Internal Chrome Reflector 134mm ADR Approved CTA046432 IP67
The LED Autolamps 131WM is a 12-24V LED reverse lamp with a clear lens, 16 LEDs, and an internal chrome reflector. ADR approved (CTA046432, ADR 1/00), IP67 waterproof, horizontal or vertical mount, pre-wired, 0.17A at 13.8V. 134mm x 87mm x 12mm. Five-year warranty. Sold individually.
Product overview
The 131WM completes the LED Autolamps 131 series chrome reflector lamp range, providing a reverse lamp in the same 134mm format as the 131AM indicator and 131RM stop/tail. The clear lens appears neutral when inactive. The internal chrome reflector maximises LED output when the reverse circuit is active. ADR 1/00 compliance and CTA046432 approval confirm road-legal use as a reverse lamp in Australia. 0.17A current draw at 13.8V. Pre-wired. Recessed mount. 12-24V compatible. IP67 rated.
Features and benefits
Clear lens with 16 white LEDs: Clear appearance when inactive, bright white reverse output when active.
Internal chrome reflector: Maximises LED output for strong reverse light visibility.
Matches the 131 series form factor: Pairs with the 131AM indicator and 131RM stop/tail for a uniform rear lighting set.
ADR approved (ADR 1/00, CTA046432): Compliant for road use in Australia as a reverse lamp.
Horizontal or vertical mount: Flexible installation orientation.
Pre-wired.
IP67 fully waterproof and submersible: Suited to trailer, caravan, and off-road environments.
12V and 24V compatible: Suits light vehicle trailers, caravans, trucks, and heavy transport.
0.17A current draw at 13.8V.
134mm x 87mm x 12mm housing.
Five-year warranty.
Sold individually.
Technical specs
| Specification |
Detail |
| SKU |
131WM |
| Brand |
LED Autolamps |
| Type |
Reverse lamp |
| Light Type |
LED |
| LED Count |
16 |
| Lens |
Clear |
| Reflector |
Internal chrome |
| Operating Voltage |
12V to 24V |
| Current Draw |
0.17A at 13.8V |
| Mount Type |
Recessed, horizontal or vertical |
| Connector |
Pre-wired |
| Dimensions |
134mm x 87mm x 12mm |
| Waterproof Rating |
IP67 |
| ADR Compliance |
ADR 1/00, CTA046432 |
| Weight |
0.201kg |
| Manufactured In |
China (Taiwan) |
| Sold As |
Each |
| Warranty |
Five years |
Frequently asked questions
Is the 131WM ADR approved? Yes. The 131WM holds ADR 1/00 compliance and CTA046432 approval, confirming road-legal use in Australia as a reverse lamp.
How does the 131WM fit with other 131 series lamps? The 131WM shares the same 134mm x 87mm x 12mm form factor as the 131AM indicator and 131RM stop/tail, making it a natural fit for a complete matched rear lighting set across all three functions.
What does the clear lens look like when the lamp is inactive? The clear lens appears visually neutral when the lamp is not powered. When the reverse circuit is active, the 16 white LEDs illuminate through the clear lens.
What is the current draw of the 131WM? The 131WM draws 0.17A at 13.8V.
Is the 131WM sold as a single unit or a pair? Sold individually.
