Description

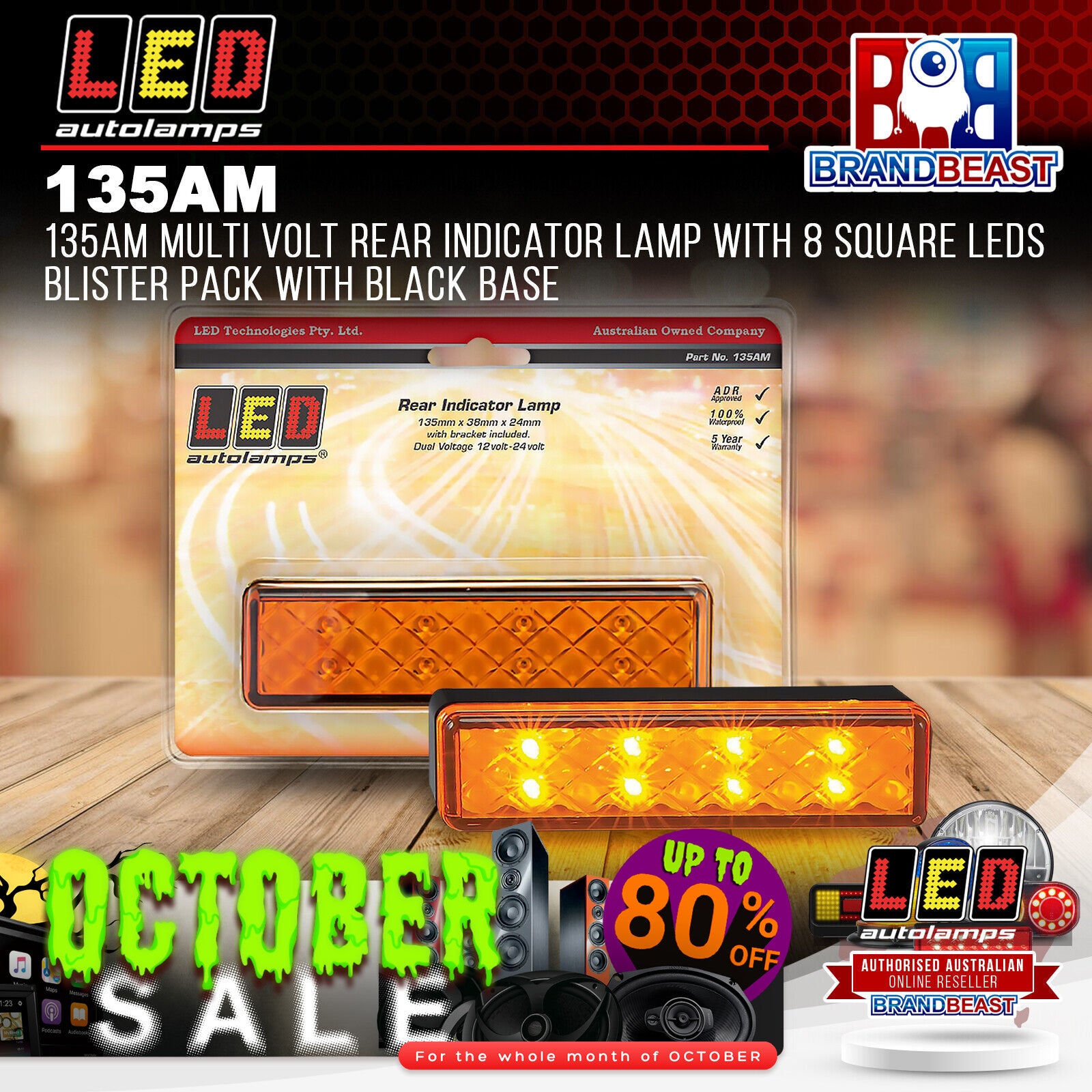

LED Autolamps 135AM 12-24V Rear Indicator Lamp 8 Square LEDs 135mm Black Base Surface Mount ADR Approved CTA060176 IP67
The LED Autolamps 135AM is a 12-24V rear indicator lamp with 8 square LEDs in a 135mm x 38mm x 24mm black base housing. ADR approved (CTA060176, CRN 39845), IP67 waterproof, pre-wired, surface mount, 0.2A current draw. Five-year warranty.
Product overview
The 135AM is a surface-mount rear indicator lamp suited to trailers, caravans, trucks, and commercial vehicles. The 8 square LED array provides a distinctive, high-visibility amber output. ADR approval CTA060176 with CRN 39845 confirms road-legal compliance in Australia. Pre-wired for straightforward surface mounting. 12-24V compatible across light vehicle and heavy transport applications. IP67 rated.
Features and benefits
8 square LEDs: Distinctive square LED array for high-visibility rear amber indicator output.
135mm x 38mm x 24mm black base housing: Surface mount form factor suited to trailer and vehicle rear panels.
ADR approved (CTA060176, CRN 39845): Compliant for road use in Australia as an indicator lamp.
IP67 fully waterproof and submersible: Suited to trailer, caravan, and off-road environments.
Pre-wired surface mount: Ready for direct installation without additional wiring preparation.
12V and 24V compatible: Suits light vehicle trailers, caravans, trucks, and heavy transport.
0.2A current draw.
Five-year warranty.
Technical specs
| Specification |
Detail |
| SKU |
135AM |
| Brand |
LED Autolamps |
| Type |
Rear indicator lamp |
| Light Type |
LED |
| LED Count |
8 square |
| Housing Colour |
Black |
| Operating Voltage |
12V to 24V |
| Current Draw |
0.2A |
| Mount Type |
Surface mount |
| Connector |
Pre-wired |
| Dimensions |
135mm x 38mm x 24mm |
| Waterproof Rating |
IP67 |
| ADR Compliance |
CTA060176, CRN 39845 |
| Weight |
0.134kg |
| Manufactured In |
China (Taiwan) |
| Warranty |
Five years |
Frequently asked questions
Is the 135AM ADR approved? Yes. The 135AM holds ADR approval CTA060176 with CRN 39845, confirming compliance for road use in Australia as a rear indicator lamp.
What voltage does the 135AM operate on? The 135AM operates on 12V and 24V systems, making it suited to light vehicle trailers, caravans, trucks, and commercial vehicles.
What is the current draw of the 135AM? The 135AM draws 0.2A.
What are the dimensions of the 135AM? The 135AM measures 135mm x 38mm x 24mm with a black base housing.
Is the 135AM sold as a single unit or a pair? Sold individually.
