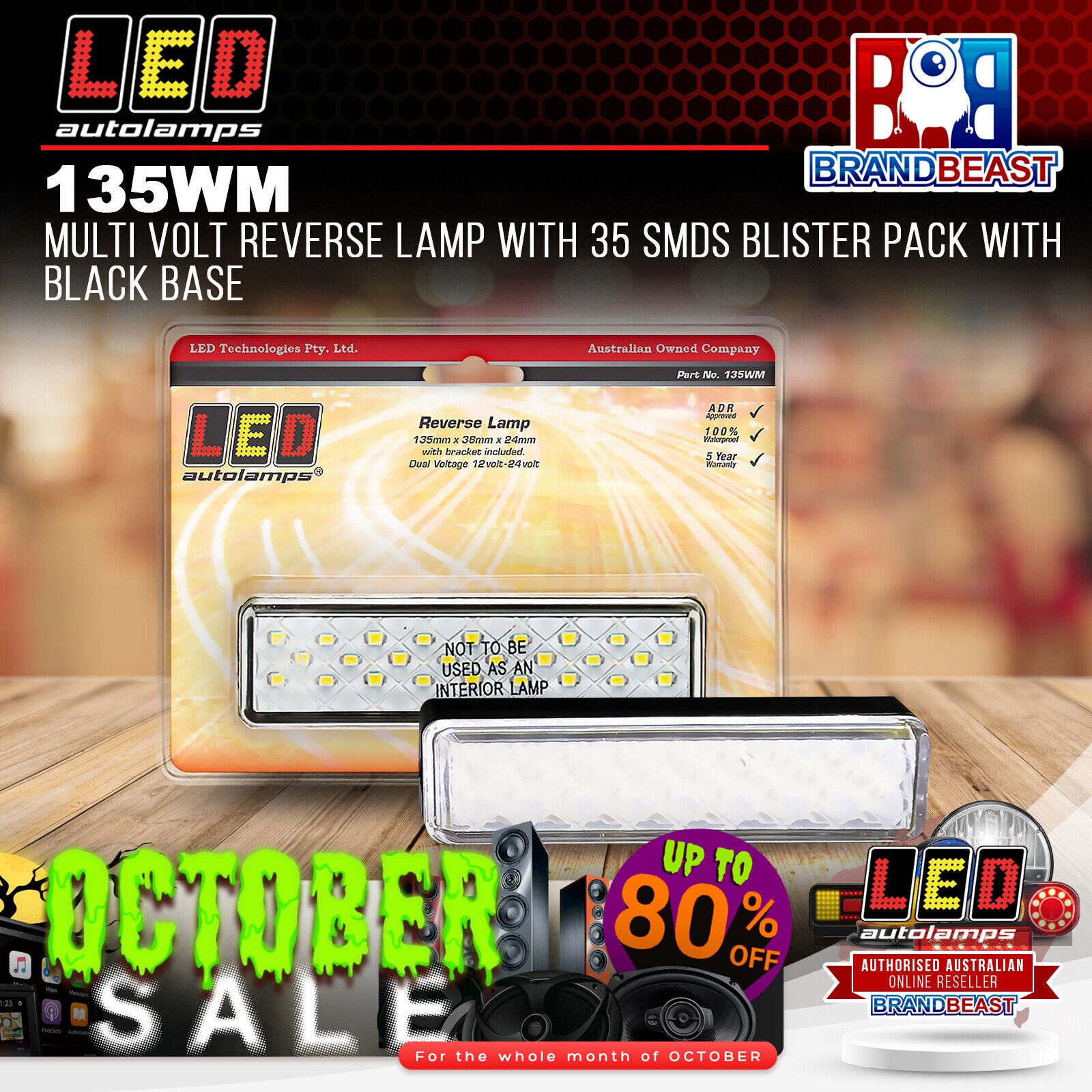

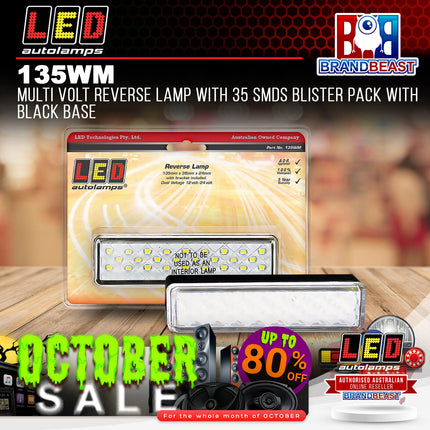

LED Autolamps 135WM 12-24V Reverse Lamp 35 SMD LEDs 135mm Black Base Surface or Recessed Mount ADR Approved CTA060199 ADR 1/00 IP67
The LED Autolamps 135WM is a 12-24V LED reverse lamp with 35 SMD LEDs in a 135mm black base housing. ADR approved (CTA060199, ADR 1/00), IP67 waterproof, surface or recessed mount, 0.4m cable, 0.16A at 13.8V. Five-year warranty.
Product overview
The 135WM is the reverse lamp in the LED Autolamps 135 series, completing the matched set alongside the 135AM indicator and 135RM stop/tail. The 35 SMD LED array provides strong white reverse output. ADR 1/00 compliance and CTA060199 approval confirm road-legal use in Australia as a reverse lamp. Surface or recessed mount options available. 0.4m pre-wired cable. 0.16A at 13.8V. 12-24V compatible. IP67 rated.
Features and benefits
35 SMD LEDs: High-brightness white reverse light output.
Surface or recessed mount: Flexible installation options for trailers, caravans, and commercial vehicle bodies.
ADR approved (ADR 1/00, CTA060199): Compliant for road use in Australia as a reverse lamp.
IP67 fully waterproof and submersible: Suited to trailer, caravan, and off-road environments.
0.4m pre-wired cable: Ready for connection to the reverse circuit.
12V and 24V compatible: Suits light vehicle trailers, caravans, trucks, and heavy transport.
0.16A current draw at 13.8V.
Black housing.
Five-year warranty.
Technical specs
| Specification |
Detail |
| SKU |
135WM |
| Brand |
LED Autolamps |
| Type |
Reverse lamp |
| Light Type |
LED |
| LED Count |
35 SMD |
| Housing Colour |
Black |
| Operating Voltage |
12V to 24V |
| Current Draw |
0.16A at 13.8V |
| Mount Type |
Surface or recessed |
| Connector |
0.4m cable |
| Dimensions |
135mm x 38mm x 24mm |
| Waterproof Rating |
IP67 |
| ADR Compliance |
ADR 1/00, CTA060199 |
| Weight |
0.054kg |
| Manufactured In |
China (Taiwan) |
| Warranty |
Five years |
Frequently asked questions
Is the 135WM ADR approved? Yes. The 135WM holds ADR 1/00 compliance and CTA060199 approval, confirming road-legal use in Australia as a reverse lamp.
What voltage does the 135WM operate on? The 135WM operates on 12V and 24V systems, making it suited to light vehicle trailers, caravans, trucks, and commercial vehicles.
How does the 135WM fit with other 135 series lamps? The 135WM is the reverse lamp in the LED Autolamps 135 series, matching the 135AM indicator and 135RM stop/tail in the same black base surface-mount format for a uniform rear lighting set.
What mounting options does the 135WM support? The 135WM supports both surface mount and recessed mount installations.
What is the current draw of the 135WM? The 135WM draws 0.16A at 13.8V.
