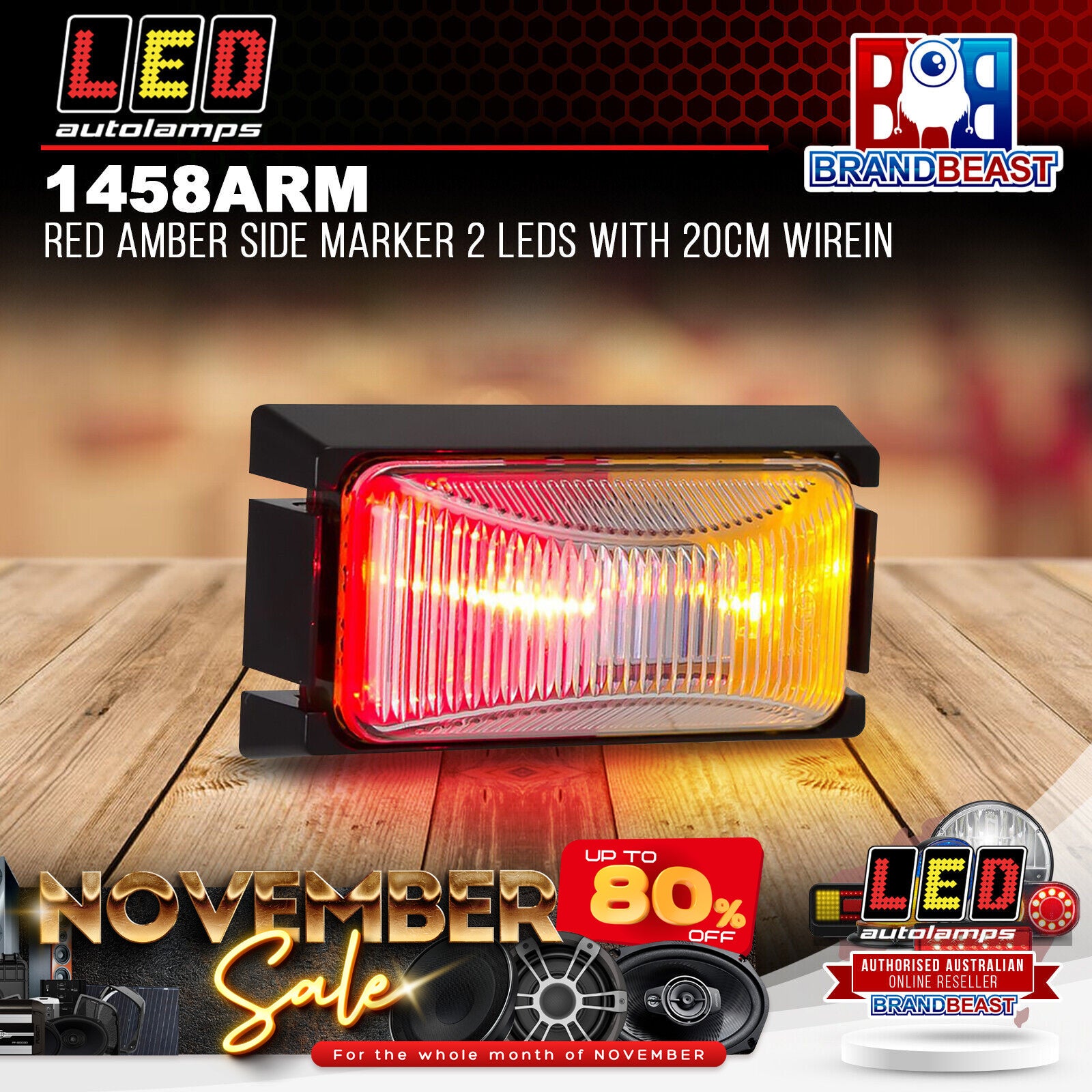

LED Autolamps 1458ARM 12-24V Red and Amber LED Side Marker Lamp 2 LEDs 74mm x 38mm Clear Lens Clip-In ADR Approved CTA039468 IP67 with 20cm Wire
The LED Autolamps 1458ARM is a 12-24V red and amber LED side marker lamp with 2 LEDs, a clip-in clear lens, and 20cm pre-wired lead. ADR approved (CTA039468), IP67 waterproof, black housing. 74mm x 38mm x 26mm. Five-year warranty. Sold individually.
Product overview
The 1458ARM is the dual-colour red and amber version in the LED Autolamps 1458 series side marker range, sharing the same 74mm x 38mm rectangular form factor as the 1458AM and 1458RM. The clip-in lens allows replacement without removing the full lamp assembly. ADR approval CTA039468 confirms road-legal use in Australia. 20cm pre-wired lead. Black housing with clear lens. 12-24V compatible. IP67 rated.
Features and benefits
Red and amber LED output: Dual-colour side marker output in a single unit.
Clip-in lens design: Lens can be replaced without removing or replacing the full lamp assembly.
ADR approved (CTA039468): Compliant for road use in Australia as a side marker lamp.
IP67 fully waterproof and submersible: Suited to trailer, truck, and off-road environments.
20cm pre-wired lead: Ready for connection at the installation point.
74mm x 38mm x 26mm black housing: Matches the 1458 series form factor for consistent side lighting builds.
12V and 24V compatible: Suits light vehicles and 24V heavy transport.
Five-year warranty.
Sold individually.
Technical specs
| Specification |
Detail |
| SKU |
1458ARM |
| Brand |
LED Autolamps |
| Type |
Side marker lamp |
| LED Count |
2 |
| LED Colour |
Red and amber |
| Lens |
Clear, clip-in |
| Housing Colour |
Black |
| Operating Voltage |
12V to 24V |
| Dimensions |
74mm x 38mm x 26mm |
| Cable |
20cm pre-wired |
| Waterproof Rating |
IP67 |
| ADR Compliance |
CTA039468 |
| Weight |
0.034kg |
| Manufactured In |
China (Taiwan) |
| Sold As |
Each |
| Warranty |
Five years |
Frequently asked questions
Is the 1458ARM ADR approved? Yes. The 1458ARM holds ADR approval CTA039468, confirming compliance for road use in Australia as a side marker lamp.
What is the difference between the 1458ARM and the 1458AM? The 1458AM is an amber-only side marker. The 1458ARM combines red and amber LEDs in a single unit for dual-colour side marker applications. Both share the same 74mm x 38mm form factor.
What does the clip-in lens design mean? The clip-in lens can be removed and replaced independently from the lamp housing, simplifying servicing if the lens is damaged without replacing the full unit.
What voltage does the 1458ARM operate on? The 1458ARM operates on 12V and 24V systems, making it suited to light vehicle trailers, trucks, and commercial vehicles.
Is the 1458ARM sold as a single unit or a pair? Sold individually.
