Description

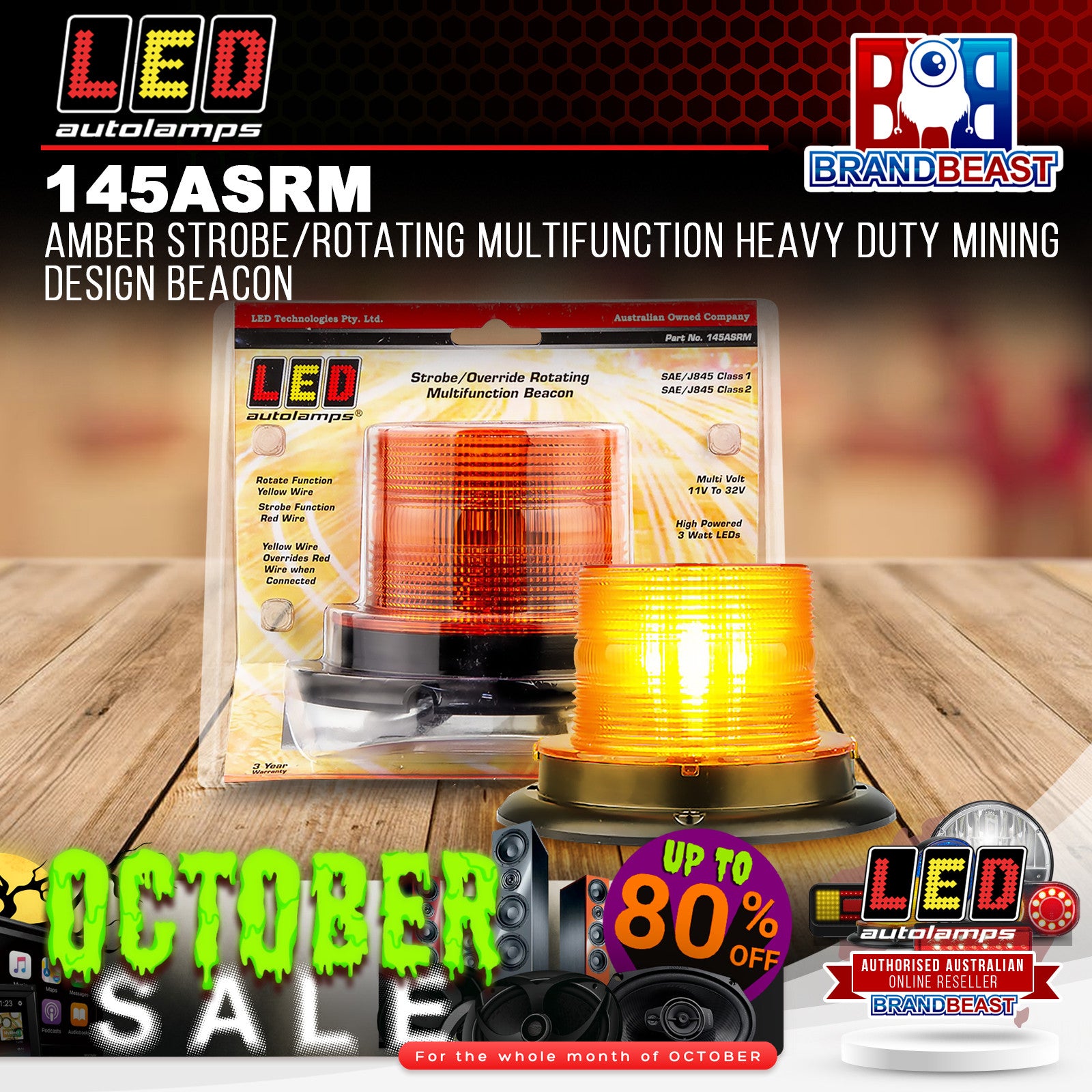

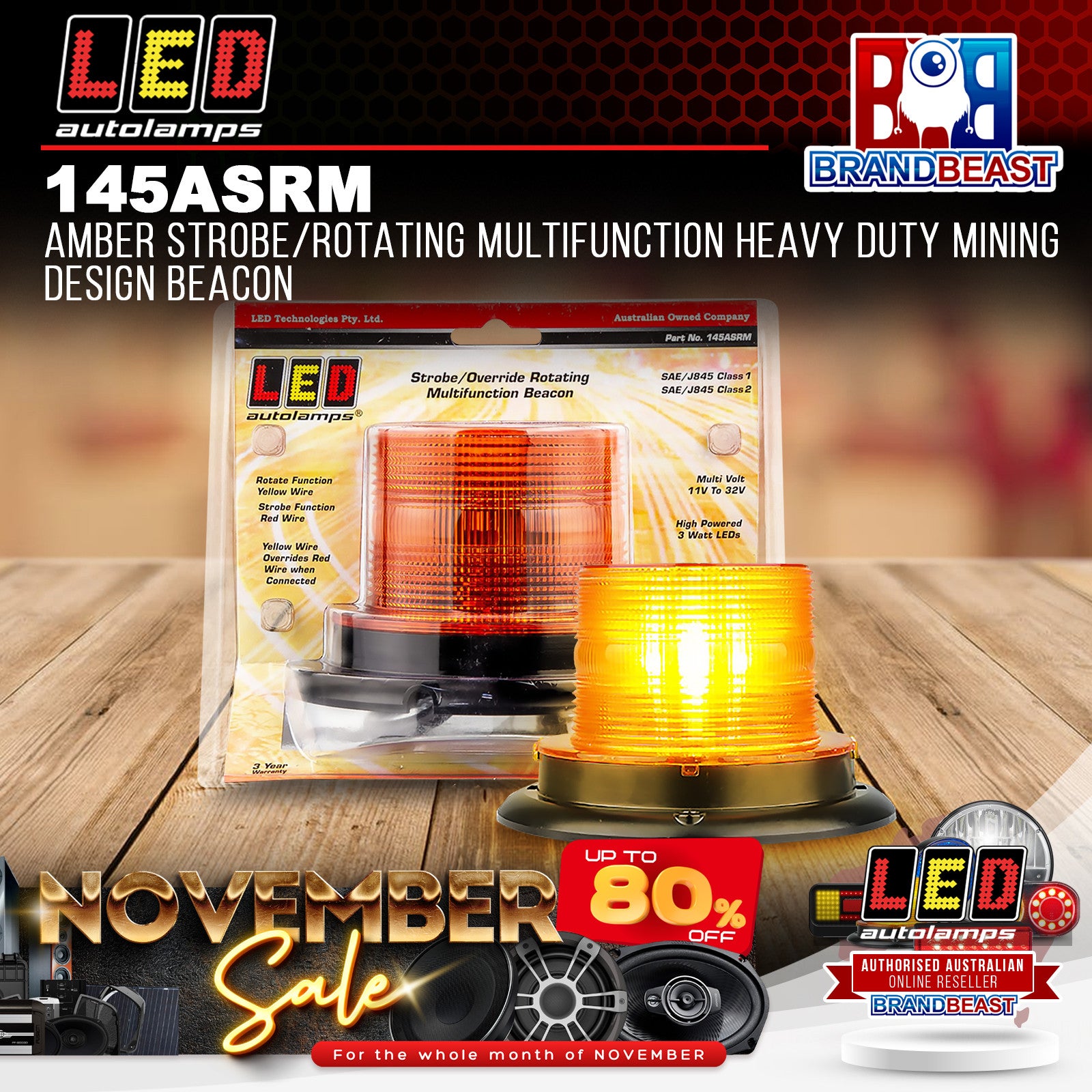

LED Autolamps 145ASRM Amber LED Strobe and Rotating Multifunction Mining Beacon 12 x 3W LEDs SAE J845 Class 1 Rotate Class 2 Strobe NHVR OSOM IP67 12-30V
The LED Autolamps 145ASRM is a 12-30V amber LED multifunction beacon switchable between rotating and strobe modes via an external SPDT switch (not supplied). 12 x 3W LEDs. SAE J845 Class 1 in rotating mode, SAE J845 Class 2 in strobe mode. Meets NHVR oversize overmass (OSOM) warning device requirements. Aluminium base, polycarbonate lens, permanent fixed mount. 0.46A rotating / 0.70A strobe at 13.8V. 130 RPM rotating. In-cab override function. Synchronises multiple units. 144mm x 91mm. Three-year warranty. Sold individually.
Product overview
The 145ASRM is a heavy-duty mining-grade multifunction beacon suited to mining vehicles, oversize load pilot vehicles, and heavy commercial equipment. Switching between rotating and strobe modes is done via an external SPDT switch (not included). In rotating mode, it achieves SAE J845 Class 1 the highest SAE certification for warning beacons at 130 RPM. In strobe mode it operates at SAE J845 Class 2. The in-cab override function allows switching without leaving the vehicle. Multiple units can be synchronised. The 145ASRM meets NHVR OSOM warning device requirements for oversize and overmass vehicle compliance in Australia. Aluminium base provides heavy-duty durability. 12-30V covers 12V and 24V systems. IP67 rated.
Features and benefits
Switchable rotate and strobe modes: External SPDT switch (not supplied) selects between rotating and strobe operation.
SAE J845 Class 1 in rotating mode: Highest SAE classification for warning beacons in rotating operation.
SAE J845 Class 2 in strobe mode: High-intensity strobe certification for strobe operation.
Meets NHVR OSOM requirements: Compliant for oversize and overmass vehicle warning device requirements under NHVR guidelines.
12 x 3W high-power LEDs: Heavy-duty LED array for high-visibility mining and heavy transport applications.
130 RPM rotating speed.
In-cab override function: Switch between modes without leaving the vehicle.
Synchronise multiple units: Multiple beacons can be wired for coordinated operation.
Aluminium base: Heavy-duty construction suited to mining and harsh environment use.
Amber polycarbonate lens.
IP67 fully waterproof and submersible.
12-30V operating range: Covers 12V and 24V electrical systems.
Fixed permanent mount.
Three-year warranty.
Sold individually.
SPDT switch not included.
Technical specs
| Specification |
Detail |
| SKU |
145ASRM |
| Brand |
LED Autolamps |
| Type |
Strobe/rotating multifunction beacon |
| LED Count |
12 |
| LED Configuration |
12 x 3W |
| LED Colour |
Amber |
| Lens Colour |
Amber |
| Lens Material |
Polycarbonate |
| Housing Colour |
Black |
| Base Material |
Aluminium |
| Mount Type |
Fixed permanent |
| Operating Voltage |
12V to 30V |
| Current Draw (Rotate) |
0.46A at 13.8V |
| Current Draw (Strobe) |
0.70A at 13.8V |
| Rotating Speed |
130 RPM |
| SAE Certification (Rotate) |
SAE J845 Class 1 |
| SAE Certification (Strobe) |
SAE J845 Class 2 |
| NHVR OSOM Compliant |
Yes |
| In-Cab Override |
Yes |
| Multi-Unit Sync |
Yes |
| Mode Switch |
External SPDT (not included) |
| Dimensions |
144mm (diameter) x 91mm (height) |
| Waterproof Rating |
IP67 |
| Weight |
0.2kg |
| Manufactured In |
China (Taiwan) |
| Sold As |
Each |
| Warranty |
Three years |
Frequently asked questions
What compliance certifications does the 145ASRM carry? The 145ASRM is certified to SAE J845 Class 1 in rotating mode and SAE J845 Class 2 in strobe mode. It also meets NHVR oversize overmass (OSOM) warning device requirements for oversize and overmass vehicle compliance in Australia.
What is the NHVR OSOM requirement? NHVR (National Heavy Vehicle Regulator) OSOM requirements specify warning device standards for oversize and overmass vehicles operating on Australian roads. The 145ASRM meets these requirements, making it suited to pilot and escort vehicles for oversize loads.
How do I switch between rotating and strobe modes? An external SPDT switch is required to switch between rotating and strobe modes. This switch is not included with the 145ASRM. The in-cab override function allows mode switching from inside the vehicle without additional wiring.
How does the 145ASRM compare to the 128AMF and 144AMF? The 145ASRM is a multifunction rotating and strobe beacon designed for the mining industry and NHVR OSOM compliance. The 128AMF and 144AMF are single-mode fixed-flash beacons. The 145ASRM is the appropriate choice where both rotating and strobe capability, mining-grade construction, or OSOM compliance is required.
What voltage systems is the 145ASRM compatible with? The 145ASRM operates from 12V to 30V, covering 12V and 24V electrical systems used in light vehicles, mining equipment, and heavy transport.
