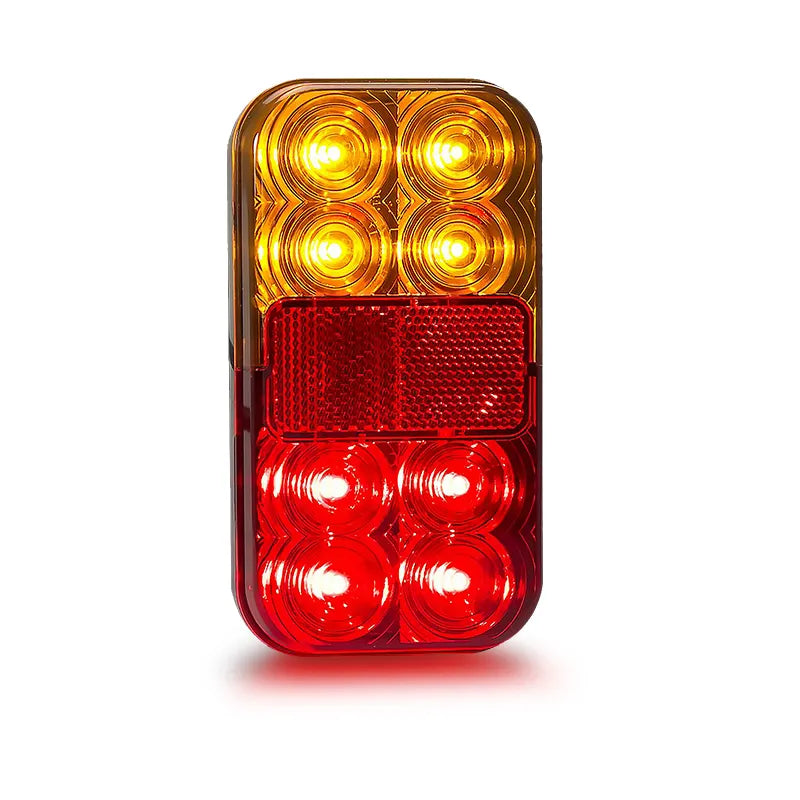

LED Autolamps 149BAR4P 12-24V LED Stop Tail Indicator and Reflector Combination Lamp 4 Pin Plug 150mm x 80mm x 29mm ECE Approved CTA060140 IP67
The LED Autolamps 149BAR4P is a 12-24V LED combination lamp covering stop, tail, indicator, and reflector functions with a 4-pin plug connector. ECE approved (CTA060140), IP67 waterproof, vertical or horizontal mount options. 150mm x 80mm x 29mm black housing. Five-year warranty. Sold individually.
Product overview
The 149BAR4P is a compact combination lamp suited to trailers, caravans, and commercial vehicles requiring stop, tail, indicator, and reflector functions in a single unit with a plug-in 4-pin harness connection. The 4-pin plug is compatible with certain cable system harnesses — confirm compatibility with your wiring system before purchasing. Vertical and horizontal mount options provide installation flexibility. ECE approval CTA060140 confirms road-legal use in Australia. 12-24V compatible. IP67 rated.
Features and benefits
Stop, tail, indicator, and reflector in one unit: Complete combination lamp for trailer and caravan rear lighting.
4-pin plug-in connector: Harness compatible for simplified connection — confirm cable system compatibility before purchasing.
Vertical or horizontal mount options: Installation flexibility for different trailer and body panel positions.
ECE approved (CTA060140): Meets international road approval standards accepted for on-road use in Australia.
IP67 fully waterproof and submersible: Suited to trailer, caravan, and off-road environments.
12V and 24V compatible: Suits light vehicle trailers, caravans, and commercial vehicles.
150mm x 80mm x 29mm black housing.
Five-year warranty.
Sold individually.
Technical specs
| Specification |
Detail |
| SKU |
149BAR4P |
| Brand |
LED Autolamps |
| Type |
Stop/tail/indicator/reflector combination lamp |
| Light Type |
LED |
| Operating Voltage |
12V to 24V |
| Connector |
4-pin plug |
| Mount Type |
Vertical or horizontal |
| Dimensions |
150mm x 80mm x 29mm |
| Housing Colour |
Black |
| Waterproof Rating |
IP67 |
| ECE Compliance |
CTA060140 |
| Weight |
0.196kg |
| Manufactured In |
China (Taiwan) |
| Sold As |
Each |
| Warranty |
Five years |
Frequently asked questions
Is the 149BAR4P ECE approved? Yes. The 149BAR4P holds ECE approval CTA060140, meeting international road approval standards accepted for on-road use in Australia as a stop/tail/indicator and reflector combination lamp.
What functions does the 149BAR4P cover? The 149BAR4P provides stop, tail, indicator, and reflector functions in a single unit, covering the primary rear lighting compliance requirements for trailer and caravan applications.
Is the 4-pin plug compatible with my wiring harness? The 149BAR4P uses a 4-pin plug-in connector that is compatible with certain cable system harnesses. Contact us to confirm compatibility with your specific wiring system before purchasing.
What mounting orientations does the 149BAR4P support? The 149BAR4P can be mounted vertically or horizontally, providing flexibility for different trailer and vehicle body panel installations.
What voltage does the 149BAR4P operate on? The 149BAR4P operates on 12V and 24V systems.
