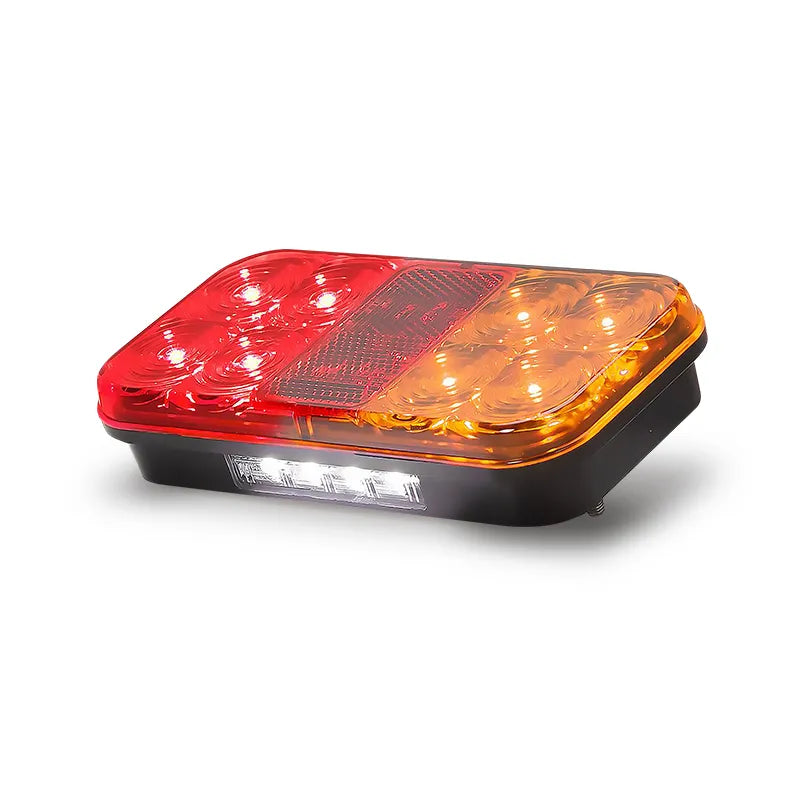

LED Autolamps 149BARL4P 12-24V LED Stop Tail Indicator Licence Plate and Reflector Combination Lamp 4 Pin Plug 150mm x 80mm x 29mm ECE Approved CTA060140 IP67
The LED Autolamps 149BARL4P is a 12-24V LED combination lamp covering stop, tail, indicator, licence plate, and reflector functions with a 4-pin plug connector. ECE approved (CTA060140), IP67 waterproof, vertical or horizontal mount options. 150mm x 80mm x 29mm black housing. Five-year warranty. Sold individually.
Product overview
The 149BARL4P extends the 149BAR4P combination lamp format by adding a licence plate lamp function, providing five rear lighting functions in a single unit. Suited to trailers, caravans, and commercial vehicles where the licence plate illumination is required from the same rear lamp position. The 4-pin plug is compatible with certain cable system harnesses — confirm compatibility with your wiring system before purchasing. Vertical and horizontal mount options. ECE approval CTA060140 confirms road-legal use in Australia. 12-24V compatible. IP67 rated.
Features and benefits
Stop, tail, indicator, licence plate, and reflector in one unit: Five-function combination lamp for complete rear lighting compliance.
Licence plate illumination included: Eliminates the need for a separate number plate light.
4-pin plug-in connector: Harness compatible for simplified connection — confirm cable system compatibility before purchasing.
Vertical or horizontal mount options: Installation flexibility for different trailer and body panel positions.
ECE approved (CTA060140): Meets international road approval standards accepted for on-road use in Australia.
IP67 fully waterproof and submersible: Suited to trailer, caravan, and off-road environments.
12V and 24V compatible: Suits light vehicle trailers, caravans, and commercial vehicles.
150mm x 80mm x 29mm black housing.
Five-year warranty.
Sold individually.
Technical specs
| Specification |
Detail |
| SKU |
149BARL4P |
| Brand |
LED Autolamps |
| Type |
Stop/tail/indicator/licence plate/reflector combination lamp |
| Light Type |
LED |
| Operating Voltage |
12V to 24V |
| Connector |
4-pin plug |
| Mount Type |
Vertical or horizontal |
| Dimensions |
150mm x 80mm x 29mm |
| Housing Colour |
Black |
| Waterproof Rating |
IP67 |
| ECE Compliance |
CTA060140 |
| Weight |
0.196kg |
| Manufactured In |
China (Taiwan) |
| Sold As |
Each |
| Warranty |
Five years |
Frequently asked questions
Is the 149BARL4P ECE approved? Yes. The 149BARL4P holds ECE approval CTA060140, meeting international road approval standards accepted for on-road use in Australia.
What is the difference between the 149BARL4P and the 149BAR4P? The 149BARL4P adds a licence plate lamp function to the 149BAR4P, providing stop, tail, indicator, licence plate, and reflector functions in a single unit. The 149BAR4P covers stop, tail, indicator, and reflector only, without licence plate illumination.
Is the 4-pin plug compatible with my wiring harness? The 149BARL4P uses a 4-pin plug-in connector compatible with certain cable system harnesses. Contact us to confirm compatibility with your specific wiring system before purchasing.
What mounting orientations does the 149BARL4P support? The 149BARL4P can be mounted vertically or horizontally, providing flexibility for different trailer and vehicle body panel installations.
What voltage does the 149BARL4P operate on? The 149BARL4P operates on 12V and 24V systems.
