Description

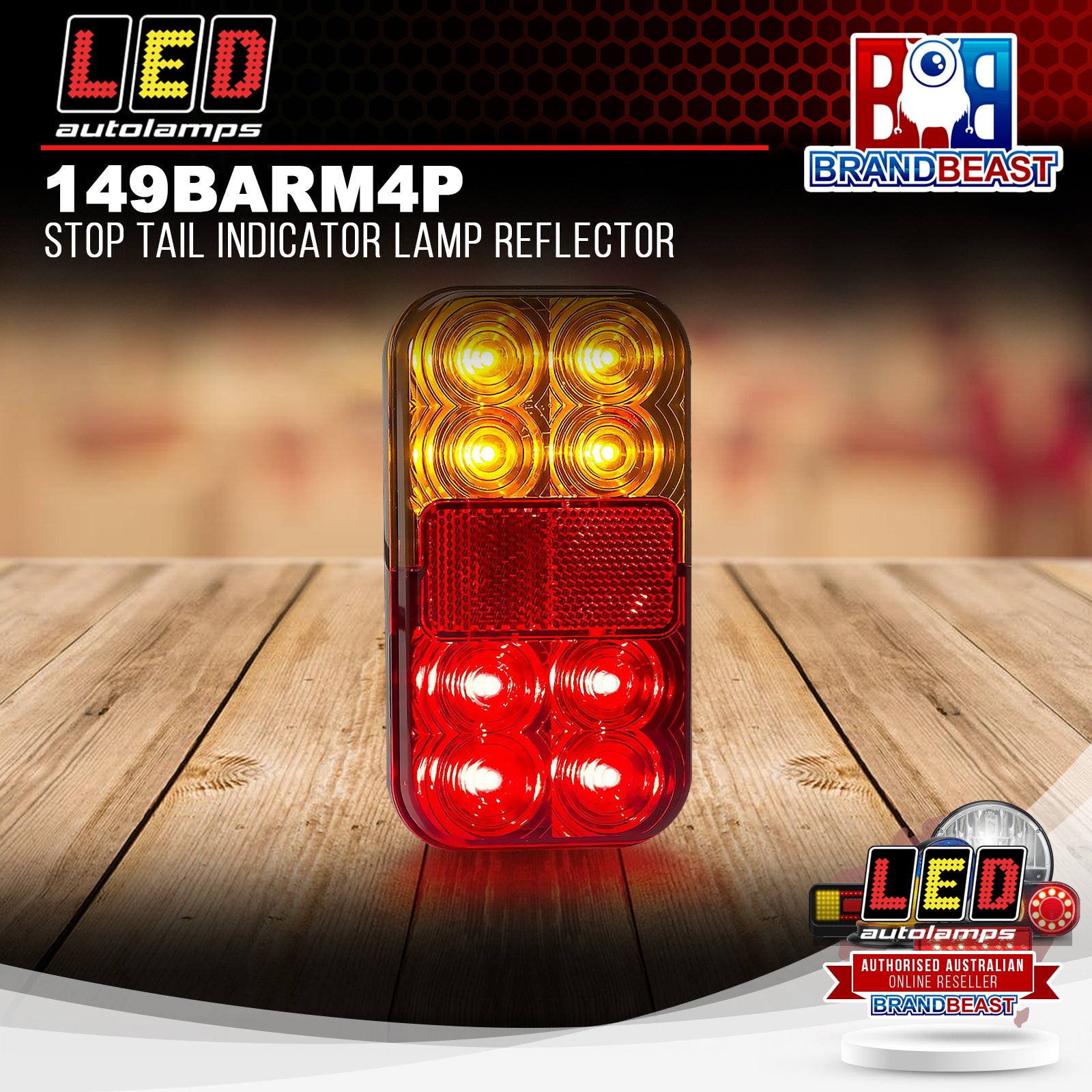

LED Autolamps 149BARM4P 12-24V LED Stop Tail Indicator and Reflector Combination Lamp 4 Pin Plug 150mm x 80mm x 29mm ECE Approved CTA060140 IP67
The LED Autolamps 149BARM4P is a 12-24V LED combination lamp covering stop, tail, indicator, and reflector functions with a 4-pin plug connector. ECE approved (CTA060140), IP67 waterproof, vertical or horizontal mount options. 150mm x 80mm x 29mm black housing. Five-year warranty. Sold individually.
Product overview
The 149BARM4P is a combination lamp in the LED Autolamps 149 series, covering stop, tail, indicator, and reflector functions in a single unit with a 4-pin plug-in connector. The 4-pin plug is compatible with certain cable system harnesses — confirm compatibility with your wiring system before purchasing. Vertical and horizontal mount options provide installation flexibility. ECE approval CTA060140 confirms road-legal use in Australia. 12-24V compatible. IP67 rated.
Features and benefits
Stop, tail, indicator, and reflector in one unit: Combination lamp for trailer and caravan rear lighting.
4-pin plug-in connector: Harness compatible for simplified connection — confirm cable system compatibility before purchasing.
Vertical or horizontal mount options: Installation flexibility for different trailer and body panel positions.
ECE approved (CTA060140): Meets international road approval standards accepted for on-road use in Australia.
IP67 fully waterproof and submersible: Suited to trailer, caravan, and off-road environments.
12V and 24V compatible: Suits light vehicle trailers, caravans, and commercial vehicles.
150mm x 80mm x 29mm black housing.
Five-year warranty.
Sold individually.
Technical specs
| Specification |
Detail |
| SKU |
149BARM4P |
| Brand |
LED Autolamps |
| Type |
Stop/tail/indicator/reflector combination lamp |
| Light Type |
LED |
| Operating Voltage |
12V to 24V |
| Connector |
4-pin plug |
| Mount Type |
Vertical or horizontal |
| Dimensions |
150mm x 80mm x 29mm |
| Housing Colour |
Black |
| Waterproof Rating |
IP67 |
| ECE Compliance |
CTA060140 |
| Weight |
0.196kg |
| Manufactured In |
China (Taiwan) |
| Sold As |
Each |
| Warranty |
Five years |
Frequently asked questions
Is the 149BARM4P ECE approved? Yes. The 149BARM4P holds ECE approval CTA060140, meeting international road approval standards accepted for on-road use in Australia.
What functions does the 149BARM4P cover? The 149BARM4P provides stop, tail, indicator, and reflector functions in a single unit.
Is the 4-pin plug compatible with my wiring harness? The 149BARM4P uses a 4-pin plug-in connector compatible with certain cable system harnesses. Contact us to confirm compatibility with your specific wiring system before purchasing.
What mounting orientations does the 149BARM4P support? The 149BARM4P can be mounted vertically or horizontally, providing flexibility for different trailer and vehicle body panel installations.
What voltage does the 149BARM4P operate on? The 149BARM4P operates on 12V and 24V systems.
