Description

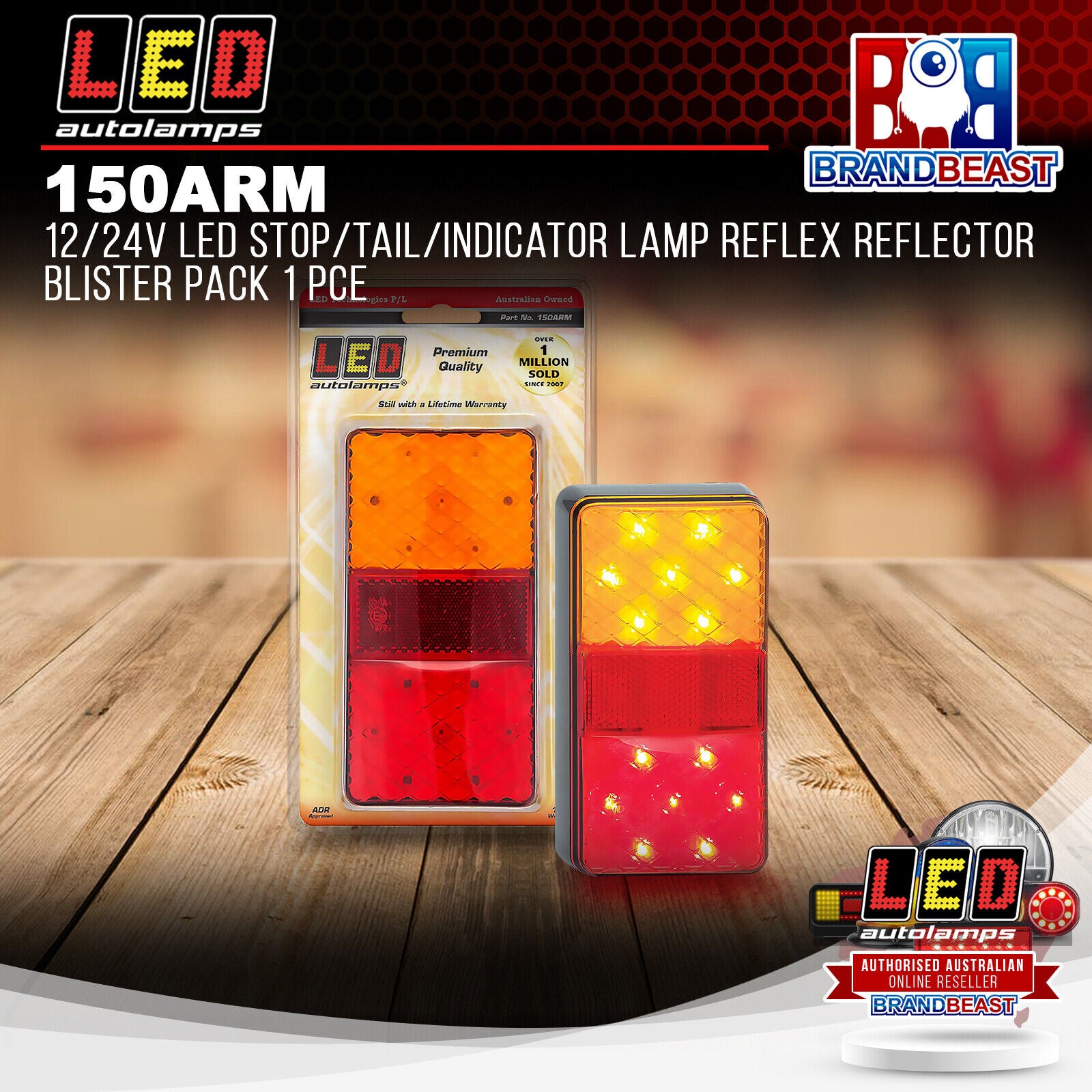

LED Autolamps 150ARM 12-24V LED Stop Tail Indicator and Reflex Reflector Combination Lamp 150mm x 80mm Diamond Lens ADR Approved CTA060294 IP67 Lifetime Warranty
The LED Autolamps 150ARM is a 12-24V LED combination lamp covering stop, tail, indicator, and reflex reflector functions in a 150mm x 80mm x 24mm low-profile black housing. Diamond pattern lens. ADR approved (CTA060294, stop/tail CRN 37381, indicator CRN 37380, reflector CRN 38102), IP67 waterproof, pre-wired, surface mount, 100mm mounting centres. Lifetime warranty.
Product overview
The 150ARM is a premium trailer lamp in the LED Autolamps range, providing four rear lighting functions in a single surface-mount unit. The diamond pattern lens and low-profile 24mm depth provide a clean, premium appearance on trailer rear panels. Current draw at 12V: stop 0.13A, tail 0.04A, indicator 0.12A. Pre-wired with 100mm mounting centres. ADR compliance is individually confirmed for stop/tail, indicator, and reflector functions. Lifetime manufacturer warranty.
Features and benefits
Stop, tail, indicator, and reflex reflector in one unit: Four-function premium trailer lamp.
Diamond pattern lens: Premium lens design for enhanced optical output and visibility.
Low-profile 24mm depth: Clean, integrated appearance on trailer rear panels.
ADR approved across all functions: Stop/tail CRN 37381, indicator CRN 37380, reflector CRN 38102. CTA approval CTA060294.
IP67 fully waterproof and submersible: Suited to trailer, caravan, and off-road environments.
Pre-wired with 100mm mounting centres.
12V and 24V compatible: Suits light vehicle trailers, caravans, trucks, and heavy transport.
Lifetime warranty.
Technical specs
| Specification |
Detail |
| SKU |
150ARM |
| Brand |
LED Autolamps |
| Type |
Stop/tail/indicator/reflector combination lamp |
| Light Type |
LED |
| Operating Voltage |
12V to 24V |
| Current Draw (Stop) |
0.13A at 12V |
| Current Draw (Tail) |
0.04A at 12V |
| Current Draw (Indicator) |
0.12A at 12V |
| Housing Colour |
Black |
| Lens Pattern |
Diamond |
| Dimensions |
150mm x 80mm x 24mm |
| Mounting Centres |
100mm |
| Mount Type |
Surface mount |
| Connector |
Pre-wired |
| Waterproof Rating |
IP67 |
| ADR Stop/Tail |
CRN 37381 |
| ADR Indicator |
CRN 37380 |
| ADR Reflector |
CRN 38102 |
| CTA Approval |
CTA060294 |
| Weight |
0.3kg |
| Manufactured In |
China (Taiwan) |
| Warranty |
Lifetime |
ADR approvals
| Function |
CRN |
CTA |
| Stop/Tail |
CRN 37381 |
CTA060294 |
| Indicator |
CRN 37380 |
CTA060294 |
| Reflector |
CRN 38102 |
CTA060294 |
Frequently asked questions
Is the 150ARM ADR approved? Yes. The 150ARM holds ADR approval CTA060294 with individual CRN approvals for stop/tail (CRN 37381), indicator (CRN 37380), and reflector (CRN 38102), confirming compliance for road use in Australia.
What is the warranty on the 150ARM? The 150ARM carries a lifetime manufacturer warranty.
What is the current draw of the 150ARM? At 12V: stop draws 0.13A, tail draws 0.04A, and indicator draws 0.12A.
What are the mounting centres for the 150ARM? The 150ARM has 100mm mounting centres between fixing points. Confirm this suits your mounting location before purchasing.
Is the 150ARM sold as a single unit or a pair? Sold individually.
