LED Autolamps 150BAR2 12V LED Stop Tail Indicator and Reflex Reflector Combination Lamp 150mm x 80mm Diamond Lens ADR Approved CTA060113 IP67 Twin Pack Lifetime Warranty
The LED Autolamps 150BAR2 is the twin pack version of the 150BAR stop/tail/indicator/reflector combination lamp. 12V LED, 150mm x 80mm x 24mm low-profile black housing, diamond pattern lens. ADR approved (CTA060113, stop/tail CRN 37381, indicator CRN 37380, reflector CRN 38102), IP67 waterproof, pre-wired, surface mount, 100mm mounting centres. Lifetime warranty. Two lamps per pack.
Product overview

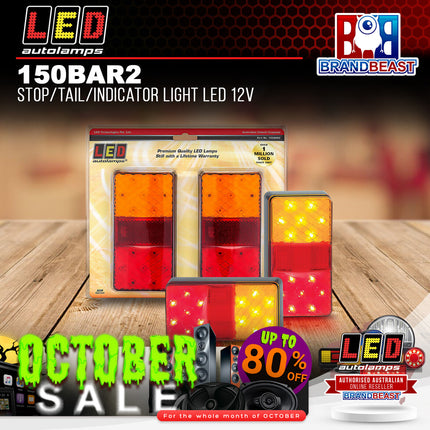

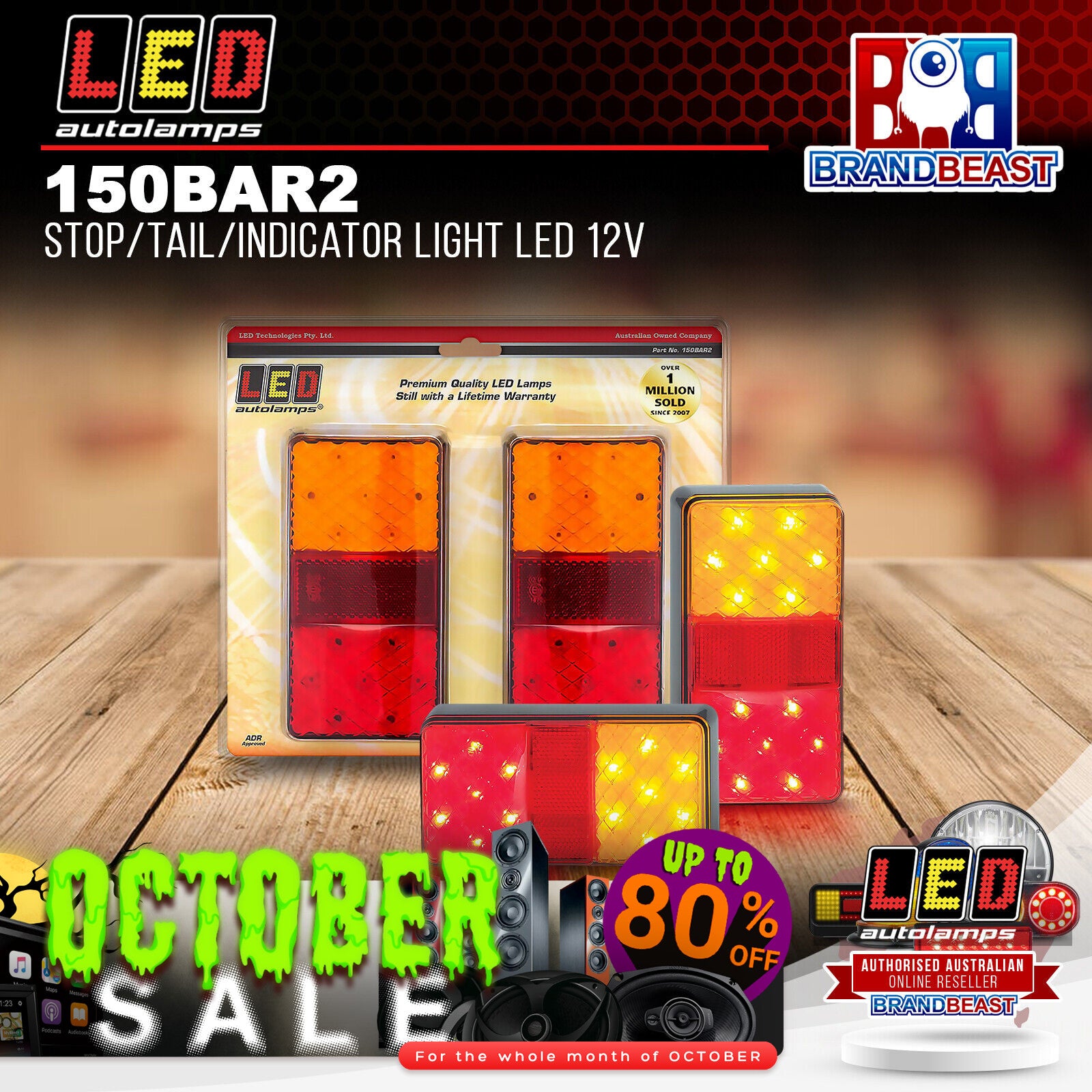

The 150BAR2 is a twin blister pack providing two matched 150BAR stop/tail/indicator/reflector combination lamps for a complete left and right rear installation in a single purchase. Current draw at 12V: stop 0.13A, tail 0.04A, indicator 0.12A. Pre-wired with 100mm mounting centres. Diamond pattern lens with low-profile 24mm depth. ADR compliance individually confirmed for stop/tail, indicator, and reflector functions. Lifetime manufacturer warranty. 12V only. IP67 rated.
Features and benefits
Twin pack: Two matched lamps for a complete left and right rear installation.
Stop, tail, indicator, and reflex reflector in one unit: Four-function combination lamp for trailer and caravan rear lighting.
Diamond pattern lens: Enhanced optical output and visibility.
Low-profile 24mm depth: Clean, integrated appearance on trailer rear panels.
ADR approved across all functions: Stop/tail CRN 37381, indicator CRN 37380, reflector CRN 38102. CTA approval CTA060113.
IP67 fully waterproof and submersible: Suited to trailer, caravan, and off-road environments.
Pre-wired with 100mm mounting centres.
12V only.
Lifetime warranty.
Technical specs
| Specification |
Detail |
| SKU |
150BAR2 |
| Brand |
LED Autolamps |
| Type |
Stop/tail/indicator/reflector combination lamp |
| Light Type |
LED |
| Operating Voltage |
12V |
| Current Draw (Stop) |
0.13A at 12V |
| Current Draw (Tail) |
0.04A at 12V |
| Current Draw (Indicator) |
0.12A at 12V |
| Housing Colour |
Black |
| Lens Pattern |
Diamond |
| Dimensions |
150mm x 80mm x 24mm |
| Mounting Centres |
100mm |
| Mount Type |
Surface mount |
| Connector |
Pre-wired |
| Waterproof Rating |
IP67 |
| ADR Stop/Tail |
CRN 37381 |
| ADR Indicator |
CRN 37380 |
| ADR Reflector |
CRN 38102 |
| CTA Approval |
CTA060113 |
| Weight |
0.5kg |
| Manufactured In |
China (Taiwan) |
| Sold As |
Twin pack (2 lamps) |
| Warranty |
Lifetime |
ADR approvals
| Function |
CRN |
CTA |
| Stop/Tail |
CRN 37381 |
CTA060113 |
| Indicator |
CRN 37380 |
CTA060113 |
| Reflector |
CRN 38102 |
CTA060113 |
Frequently asked questions
Is the 150BAR2 ADR approved? Yes. The 150BAR2 holds ADR approval CTA060113 with individual CRN approvals for stop/tail (CRN 37381), indicator (CRN 37380), and reflector (CRN 38102).
What is the difference between the 150BAR2 and the 150BAR? The 150BAR is sold individually. The 150BAR2 is sold as a twin pack containing two matched lamps for a complete left and right rear installation in a single purchase. Both share the same specifications.
What is the current draw of the 150BAR2? At 12V: stop draws 0.13A, tail draws 0.04A, and indicator draws 0.12A per lamp.
Is the 150BAR2 suitable for 24V systems? No. The 150BAR2 is 12V only. For 12-24V applications, see the 150ARM.
What warranty does the 150BAR2 carry? Lifetime manufacturer warranty.
