Description

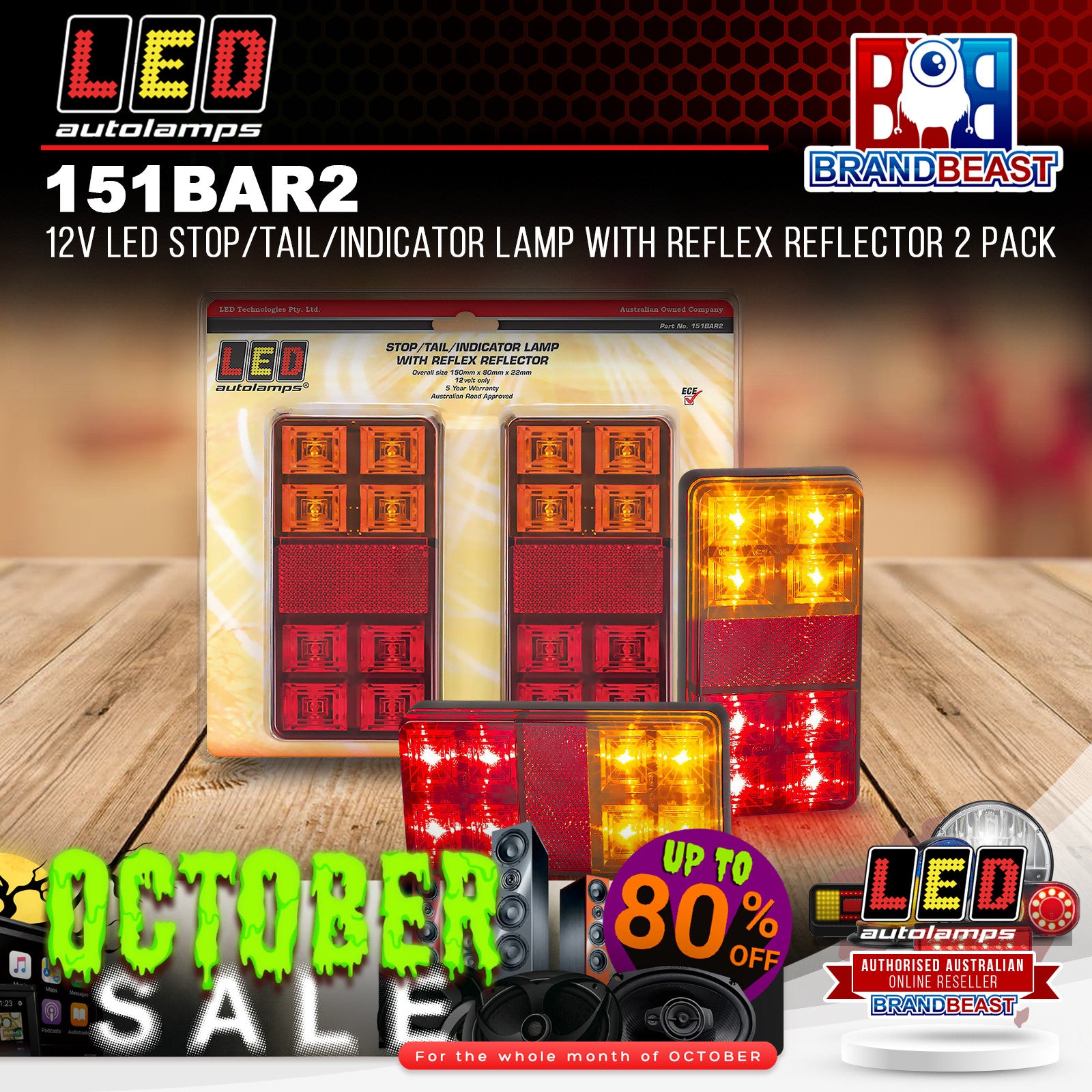

LED Autolamps 151BAR2 12V LED Stop Tail Indicator and Reflex Reflector Combination Lamp 150mm x 80mm x 22mm ADR Approved CTA060147 ECE Approved IP67 Twin Pack
The LED Autolamps 151BAR2 is the twin pack version of the 151BAR stop/tail/indicator/reflector combination lamp. 12V LED, 150mm x 80mm x 22mm low-profile black housing. ADR approved (CTA060147), ECE approved (stop/tail ECE 02R1-S1, indicator ECE 01 2a, reflector ECE 02 1a), IP67 waterproof, pre-wired, surface mount. Current draw at 13.8V: stop 0.13A, tail 0.04A, indicator 0.12A. Five-year warranty. Two lamps per pack.
Product overview
The 151BAR2 is a twin blister pack providing two matched 151BAR stop/tail/indicator/reflector combination lamps for a complete left and right rear installation in a single purchase. ADR approval CTA060147 and individual ECE compliance across stop/tail, indicator, and reflector functions confirm road-legal compliance in Australia. Low-profile 22mm depth. Pre-wired surface mount. 12V only. IP67 rated.
Features and benefits
Twin pack: Two matched lamps for a complete left and right rear installation.
Stop, tail, indicator, and reflex reflector in one unit: Four-function budget combination lamp for trailer and caravan rear lighting.
Low-profile 22mm depth: Clean, integrated appearance on trailer rear panels.
ADR approved (CTA060147) and ECE approved: Dual compliance for road use in Australia.
IP67 fully waterproof and submersible: Suited to trailer, caravan, and off-road environments.
Pre-wired surface mount.
12V only.
Five-year warranty.
Technical specs
| Specification |
Detail |
| SKU |
151BAR2 |
| Brand |
LED Autolamps |
| Type |
Stop/tail/indicator/reflector combination lamp |
| Light Type |
LED |
| Operating Voltage |
12V |
| Current Draw (Stop) |
0.13A at 13.8V |
| Current Draw (Tail) |
0.04A at 13.8V |
| Current Draw (Indicator) |
0.12A at 13.8V |
| Housing Colour |
Black |
| Dimensions |
150mm x 80mm x 22mm |
| Mount Type |
Surface mount |
| Connector |
Pre-wired |
| Waterproof Rating |
IP67 |
| ADR Compliance |
CTA060147 |
| ECE Stop/Tail |
ECE 02R1-S1 |
| ECE Indicator |
ECE 01 2a |
| ECE Reflector |
ECE 02 1a |
| Weight |
0.35kg |
| Manufactured In |
China (Taiwan) |
| Sold As |
Twin pack (2 lamps) |
| Warranty |
Five years |
Frequently asked questions
Is the 151BAR2 ADR and ECE approved? Yes. The 151BAR2 holds ADR approval CTA060147 and ECE compliance for stop/tail (ECE 02R1-S1), indicator (ECE 01 2a), and reflector (ECE 02 1a), confirming dual compliance for road use in Australia.
What is the difference between the 151BAR2 and the 151BAR? The 151BAR is sold individually. The 151BAR2 is sold as a twin pack containing two matched lamps for a complete left and right rear installation in a single purchase. Both share the same specifications.
What is the current draw of the 151BAR2? At 13.8V: stop draws 0.13A, tail draws 0.04A, and indicator draws 0.12A per lamp.
Is the 151BAR2 suitable for 24V systems? No. The 151BAR2 is 12V only. For 12-24V applications, see the 150ARM.
What warranty does the 151BAR2 carry? Five-year manufacturer warranty.
