Description

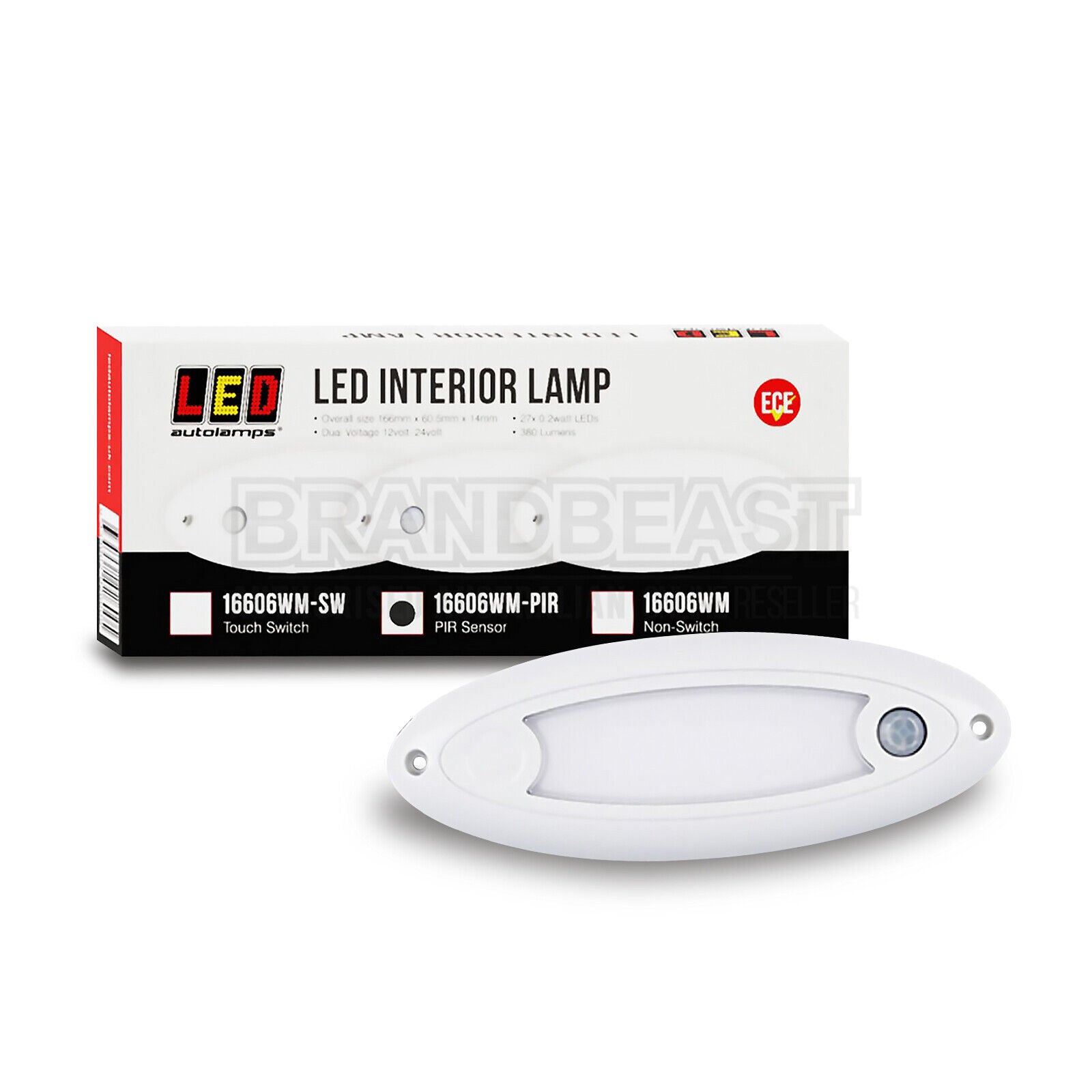

LED Autolamps 16606WM-PIR 10-30V 240lm Small Oval LED Interior and Exterior Lamp with PIR Motion Sensor 4500K Natural White IP67 White Housing
The LED Autolamps 16606WM-PIR is a 10-30V small oval LED lamp with a PIR motion sensor, delivering 240 effective lumens of 4500K natural white light at 74 lux at 1 metre. IP67 waterproof, low-profile design, white housing. Suited to caravan, campervan, and boat interior and exterior lighting where automatic hands-free activation is practical. Two-year warranty.
Product overview
The 16606WM-PIR adds a PIR (passive infrared) motion sensor to the 16606WM, activating the light automatically when movement is detected. The compact oval form factor suits installations where a round or rectangular lamp is not ideal. The 4500K colour temperature provides a neutral white output suited to enclosed interior spaces. 240 effective lumens and 74 lux at 1 metre. IP67 rated. 10-30V covering 12V and 24V systems. White housing.
Features and benefits
PIR motion sensor: Automatically activates the lamp when movement is detected.
240 effective lumens: High-brightness output for compact interior and exterior applications.
4500K natural white: Neutral white colour temperature suited to interior environments.
74 lux at 1 metre: Confirmed illuminance for task and area lighting.
Small oval form factor: Suits installations where a round or rectangular lamp is not practical.
10-30V operating range: Compatible with 12V and 24V electrical systems.
IP67 fully waterproof and submersible: Suited to exterior mounting and wet environments.
Low-profile design.
White housing.
Two-year warranty.
Technical specs
| Specification |
Detail |
| SKU |
16606WM-PIR |
| Brand |
LED Autolamps |
| Type |
Interior/exterior LED lamp with PIR sensor |
| Light Type |
LED |
| Sensor |
PIR motion sensor |
| Lumens |
240 effective |
| Colour Temperature |
4500K natural white |
| Illuminance |
74 lux at 1m |
| Housing Colour |
White |
| LED Colour |
White |
| Operating Voltage |
10V to 30V |
| Waterproof Rating |
IP67 |
| Weight |
0.149kg |
| Manufactured In |
China |
| Warranty |
Two years |
Frequently asked questions
What does the PIR sensor do? The PIR (passive infrared) sensor detects movement and automatically activates the lamp when someone enters the detection area — well suited to caravan entries, storage lockers, and boat cabins where hands-free automatic lighting is practical.
What is the difference between the 16606WM-PIR and the 16606WM? The 16606WM-PIR includes a PIR motion sensor for automatic activation. The 16606WM is the standard version without a sensor. Both share the same 240lm output, 4500K colour temperature, 10-30V range, and IP67 rating.
What voltage does the 16606WM-PIR operate on? The 16606WM-PIR operates from 10V to 30V, covering 12V and 24V electrical systems.
Is the 16606WM-PIR suitable for exterior use? Yes. The IP67 rating confirms the 16606WM-PIR is fully sealed against dust and submersible in water up to 1 metre for up to 30 minutes.
What warranty does the 16606WM-PIR carry? Two-year manufacturer warranty.
