Description

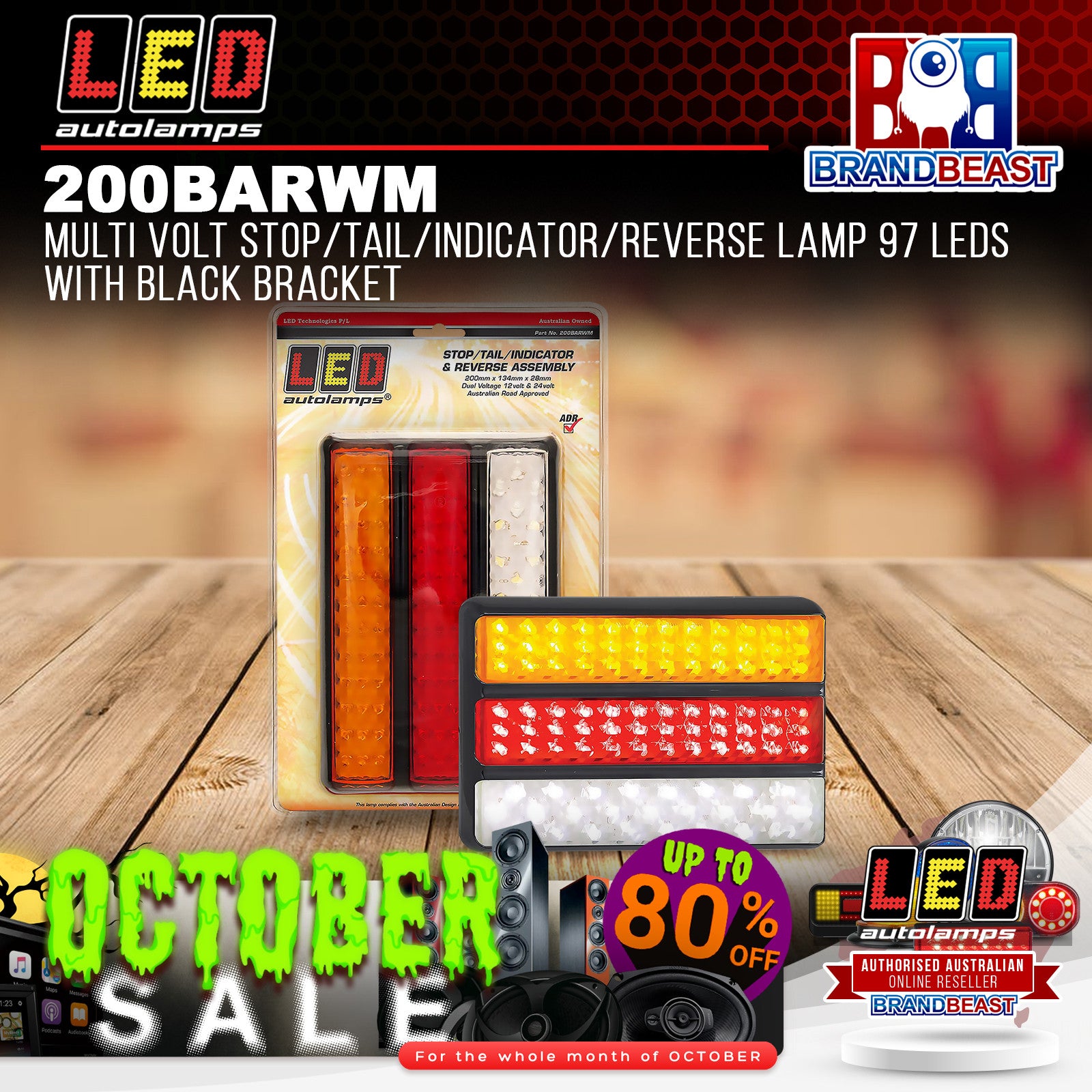

LED Autolamps 200BARWM 12-24V Stop Tail Indicator and Reverse Combination Lamp Assembly 97 LEDs 200mm x 134mm x 28mm Black Bracket Clip-In Lens ADR Approved CTA060095 IP67
The LED Autolamps 200BARWM is a 12-24V LED stop/tail/indicator/reverse combination lamp assembly with 97 LEDs in a 200mm x 134mm x 28mm housing with black bracket and clip-in replaceable lens. ADR approved (CTA060095), IP67 waterproof. Five-year warranty. Sold individually.
Product overview
The 200BARWM extends the 200BARM stop/tail/indicator assembly by adding a reverse lamp function, covering all four primary rear lighting functions in a single unit. The 97 LED array is distributed across stop, tail, indicator, and reverse zones within the larger 200mm x 134mm rectangular housing. The clip-in lens design allows lens replacement in the field without removing the full assembly from the vehicle. Black bracket included. ADR approval CTA060095 confirms road-legal compliance in Australia. 12-24V compatible. IP67 rated.
Features and benefits
97 LEDs across stop, tail, indicator, and reverse functions: Full four-function rear lighting coverage in a single rectangular assembly.
Clip-in replaceable lens: Lens removed and replaced without dismounting the full assembly, reducing field maintenance time.
Black bracket included: Complete assembly ready for surface mounting.
ADR approved (CTA060095): Compliant for road use in Australia as a stop/tail/indicator/reverse combination lamp.
IP67 fully waterproof and submersible: Suited to trailer, caravan, and off-road environments.
12V and 24V compatible: Suits light vehicle trailers, caravans, trucks, and heavy transport.
Five-year warranty.
Technical specs
| Specification |
Detail |
| SKU |
200BARWM |
| Brand |
LED Autolamps |
| Type |
Stop/tail/indicator/reverse combination lamp assembly |
| Light Type |
LED |
| LED Count |
97 |
| Housing Colour |
Black |
| Bracket Colour |
Black |
| Operating Voltage |
12V to 24V |
| Mount Type |
Surface mount |
| Dimensions |
200mm x 134mm x 28mm |
| Lens |
Clip-in replaceable |
| Waterproof Rating |
IP67 |
| ADR Compliance |
CTA060095 |
| Weight |
0.495kg |
| Manufactured In |
China (Taiwan) |
| Warranty |
Five years |
Frequently asked questions
Is the 200BARWM ADR approved? Yes. The 200BARWM holds ADR approval CTA060095, confirming compliance for road use in Australia as a stop/tail/indicator/reverse combination lamp.
How does the 200BARWM differ from the 200BARM? The 200BARM covers stop, tail, and indicator functions with 72 LEDs in a 200mm x 92mm housing. The 200BARWM adds a reverse lamp function, bringing the LED count to 97 and increasing the housing height to 200mm x 134mm. Choose the 200BARWM where reverse lamp coverage is required from the same assembly.
What does the clip-in lens design mean for maintenance? The clip-in lens can be removed and replaced without dismounting the full assembly from the vehicle, simplifying field lens replacement and reducing downtime.
What voltage does the 200BARWM operate on? The 200BARWM operates on 12V and 24V systems, making it suited to light vehicle trailers, caravans, trucks, and commercial vehicles.
Is the 200BARWM sold as a single unit or a pair? Sold individually.
