Description

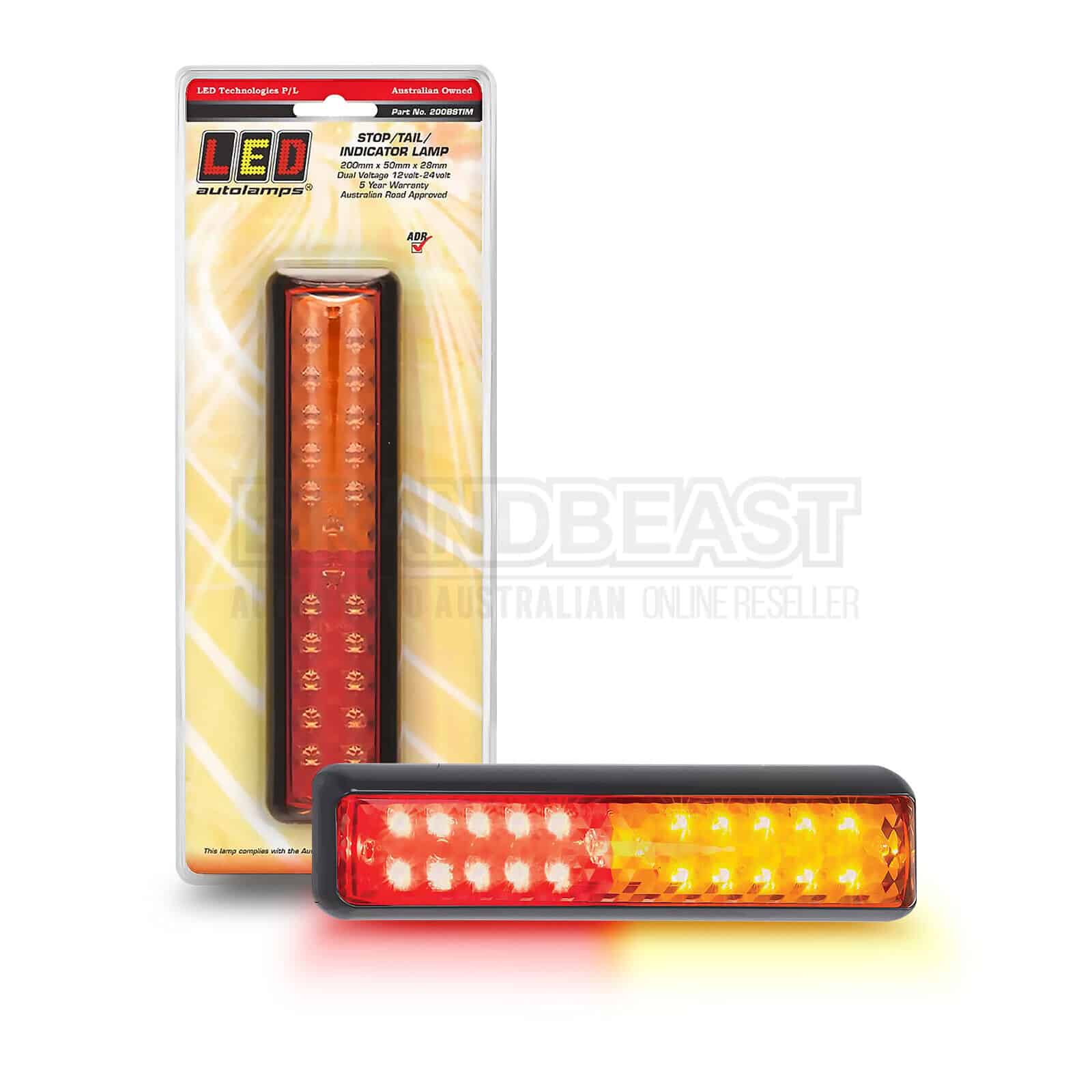

LED Autolamps 200BSTIM 12-24V Stop Tail and Indicator Combination Lamp 200mm x 50mm x 28mm Black Bracket 160mm Mounting Centres ADR Approved CTA060135 IP67
The LED Autolamps 200BSTIM is a 12-24V LED stop/tail/indicator combination lamp in a 200mm x 50mm x 28mm black housing with black bracket, 160mm mounting centres, pre-wired surface mount. ADR approved (CTA060135, stop CRN 35786, tail CRN 35785, indicator CRN 35784), IP67 waterproof. Five-year warranty. Sold individually.
Product overview
The 200BSTIM is a surface-mount stop/tail/indicator combination lamp suited to trailers, caravans, trucks, and commercial vehicles. ADR compliance is individually confirmed for each function across three separate CRN approvals. Current draw at 13.8V: stop 0.29A, tail 0.09A, indicator 0.19A. Pre-wired with 160mm mounting centres. 12-24V compatible. IP67 rated.
Features and benefits
Stop, tail, and indicator in one unit: Three-function combination lamp for trailer and vehicle rear lighting.
Individually confirmed ADR approvals per function: Stop CRN 35786, tail CRN 35785, indicator CRN 35784 separate CRN compliance for each lighting function.
160mm mounting centres: Fixed mounting pitch for straightforward installation alignment.
ADR approved (CTA060135): Compliant for road use in Australia.
IP67 fully waterproof and submersible: Suited to trailer, caravan, and off-road environments.
Pre-wired surface mount: Ready for direct installation without additional wiring preparation.
12V and 24V compatible: Suits light vehicle trailers, caravans, trucks, and heavy transport.
Five-year warranty.
Technical specs
| Specification |
Detail |
| SKU |
200BSTIM |
| Brand |
LED Autolamps |
| Type |
Stop/tail/indicator combination lamp |
| Light Type |
LED |
| Housing Colour |
Black |
| Bracket Colour |
Black |
| Operating Voltage |
12V to 24V |
| Current Draw (Stop) |
0.29A at 13.8V |
| Current Draw (Tail) |
0.09A at 13.8V |
| Current Draw (Indicator) |
0.19A at 13.8V |
| Mount Type |
Surface mount |
| Connector |
Pre-wired |
| Mounting Centres |
160mm |
| Dimensions |
200mm x 50mm x 28mm |
| Waterproof Rating |
IP67 |
| ADR Compliance |
CTA060135 |
| ADR Stop |
CRN 35786 |
| ADR Tail |
CRN 35785 |
| ADR Indicator |
CRN 35784 |
| Manufactured In |
China (Taiwan) |
| Warranty |
Five years |
Frequently asked questions
Is the 200BSTIM ADR approved?
Yes. The 200BSTIM holds ADR approval CTA060135 with individual CRN approvals for stop (CRN 35786), tail (CRN 35785), and indicator (CRN 35784), confirming compliance for road use in Australia across all three functions.
What are the mounting centres on the 200BSTIM?
The 200BSTIM has 160mm mounting centres between fixing points. Confirm this suits your mounting location before purchasing.
What is the current draw of the 200BSTIM?
At 13.8V: stop draws 0.29A, tail draws 0.09A, and indicator draws 0.19A.
What voltage does the 200BSTIM operate on?
The 200BSTIM operates on 12V and 24V systems, making it suited to light vehicle trailers, caravans, trucks, and commercial vehicles.
Is the 200BSTIM sold as a single unit or a pair?
Sold individually.
