Description

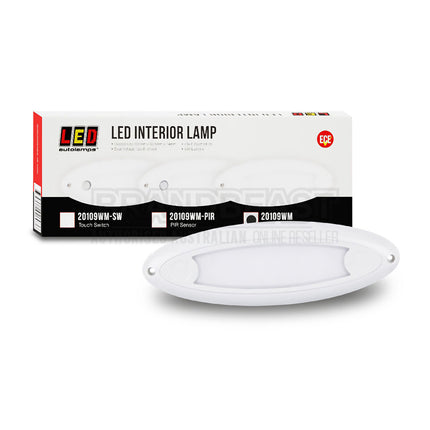

LED Autolamps 20109WM 10-30V 400lm Large Oval LED Interior and Exterior Lamp 4500K Natural White 115 Lux at 1m IP67 Low Profile White Housing
The LED Autolamps 20109WM is a 10-30V large oval LED lamp delivering 400 effective lumens of 4500K natural white light at 115 lux at 1 metre. IP67 waterproof, low-profile design, white housing. Suited to interior and exterior lighting in caravans, campervans, boats, and commercial vehicles. Two-year warranty.
Product overview
The 20109WM is the larger oval variant in the LED Autolamps interior and exterior lamp range, stepping up from the 16606WM small oval with 400 effective lumens against 240 and 115 lux at 1 metre against 74. The 4500K colour temperature provides a neutral white output suited to enclosed interior spaces and task lighting. IP67 rated for full waterproof and submersion protection. 10-30V covering 12V and 24V systems. No integrated switch wired as a standard on/off circuit.
Features and benefits
400 effective lumens: Higher output than the 16606WM small oval, suited to larger interior spaces and brighter task lighting requirements.
4500K natural white: Neutral colour temperature reducing eye strain in interior environments.
115 lux at 1 metre: Confirmed illuminance for task and area lighting in caravan, boat, and vehicle interiors.
Large oval form factor: Greater coverage than the 16606WM for wider interior and exterior mounting positions.
10-30V operating range: Compatible with 12V and 24V electrical systems.
IP67 fully waterproof and submersible: Suited to exterior mounting and wet environments.
No integrated switch: Wired as a standard on/off circuit.
Low-profile design.
White housing.
Two-year warranty.
Technical specs
| Specification |
Detail |
| SKU |
20109WM |
| Brand |
LED Autolamps |
| Type |
Interior/exterior LED lamp |
| Light Type |
LED |
| Lumens |
400 effective |
| Colour Temperature |
4500K natural white |
| Illuminance |
115 lux at 1m |
| Switch |
None (standard wired circuit) |
| Housing Colour |
White |
| LED Colour |
White |
| Operating Voltage |
10V to 30V |
| Waterproof Rating |
IP67 |
| Weight |
0.185kg |
| Manufactured In |
China |
| Warranty |
Two years |
Frequently asked questions
What is the light output of the 20109WM?
The 20109WM delivers 400 effective lumens with 115 lux at 1 metre, suited to general area lighting and task lighting in caravan, boat, and vehicle interiors.
What is the colour temperature of the 20109WM?
The 20109WM has a 4500K natural white colour temperature, a neutral white between cool and warm white that suits interior environments where a natural daylight feel is preferred.
How does the 20109WM differ from the 16606WM?
The 20109WM is the large oval variant with 400 effective lumens and 115 lux at 1 metre. The 16606WM is the small oval variant with 240 effective lumens and 74 lux at 1 metre. Choose the 20109WM where higher output or a larger lamp footprint is required.
Does the 20109WM have an integrated switch?
No. The 20109WM is wired as a standard on/off circuit with no integrated switch. For a touch switch version or PIR version, see the 20109WM-SW or 20109WM-PIR if available.
What voltage does the 20109WM operate on?
The 20109WM operates from 10V to 30V, covering 12V and 24V electrical systems.
