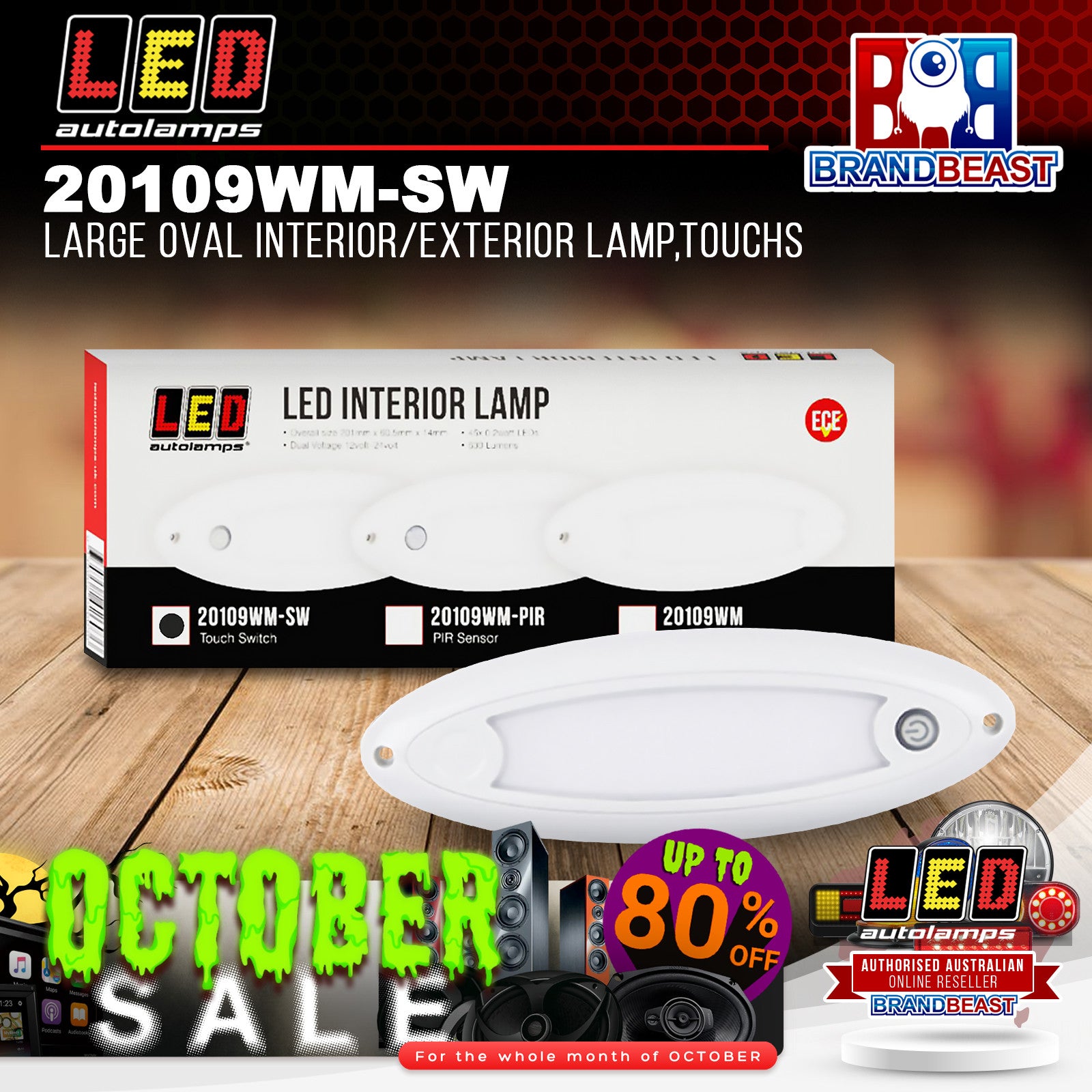

LED Autolamps 20109WM-SW 10-30V 400lm Large Oval LED Interior and Exterior Lamp with Touch Switch 4500K Natural White 115 Lux at 1m IP67 White Housing
The LED Autolamps 20109WM-SW is a 10-30V large oval LED lamp with an integrated touch switch, delivering 400 effective lumens of 4500K natural white light at 115 lux at 1 metre. IP67 waterproof, low-profile design, white housing. Suited to caravan, campervan, and boat interior lighting where independent zone control without a separate wired switch is needed. Two-year warranty.
Product overview
The 20109WM-SW adds an integrated touch switch to the 20109WM, allowing the lamp to be turned on or off without a separate wired switch in the circuit. The large oval form factor provides broader coverage than the 16606WM-SW small oval, with 400 effective lumens and 115 lux at 1 metre. The 4500K colour temperature provides a neutral white output suited to enclosed interior spaces. IP67 rated. 10-30V covering 12V and 24V systems. White housing.
Features and benefits
Integrated touch switch: Allows the lamp to be switched on or off without a separate wired switch in the circuit.
400 effective lumens: Higher output than the 16606WM-SW small oval, suited to larger interior spaces.
4500K natural white: Neutral colour temperature suited to interior environments.
115 lux at 1 metre: Confirmed illuminance for task and area lighting.
Large oval form factor: Greater coverage than the 16606WM-SW for wider interior mounting positions.
10-30V operating range: Compatible with 12V and 24V electrical systems.
IP67 fully waterproof and submersible: Suited to exterior mounting and wet environments.
Low-profile design.
White housing.
Two-year warranty.
Technical specs
| Specification |
Detail |
| SKU |
20109WM-SW |
| Brand |
LED Autolamps |
| Type |
Interior/exterior LED lamp with touch switch |
| Light Type |
LED |
| Switch |
Integrated touch switch |
| Lumens |
400 effective |
| Colour Temperature |
4500K natural white |
| Illuminance |
115 lux at 1m |
| Housing Colour |
White |
| LED Colour |
White |
| Operating Voltage |
10V to 30V |
| Waterproof Rating |
IP67 |
| Weight |
0.185kg |
| Manufactured In |
China |
| Warranty |
Two years |
Frequently asked questions
What does the touch switch do?
The integrated touch switch allows the lamp to be turned on or off without requiring a separate wired switch in the circuit, providing independent control for zone lighting in caravan, campervan, and boat interiors.
What is the light output of the 20109WM-SW?
The 20109WM-SW delivers 400 effective lumens with 115 lux at 1 metre, suited to general area lighting and task lighting in caravan, boat, and vehicle interiors.
How does the 20109WM-SW differ from the 20109WM and 20109WM-PIR?
The 20109WM is the standard version with no switch or sensor. The 20109WM-SW adds an integrated touch switch for manual control. The 20109WM-PIR adds a PIR motion sensor for automatic activation. All three share the same 400lm output, 4500K colour temperature, 10-30V range, and IP67 rating.
How does the 20109WM-SW differ from the 16606WM-SW?
The 20109WM-SW is the large oval variant with 400 effective lumens and 115 lux at 1 metre. The 16606WM-SW is the small oval variant with 240 effective lumens and 74 lux at 1 metre. Choose the 20109WM-SW where higher output or a larger lamp footprint is required.
What voltage does the 20109WM-SW operate on?
The 20109WM-SW operates from 10V to 30V, covering 12V and 24V electrical systems.
