Description

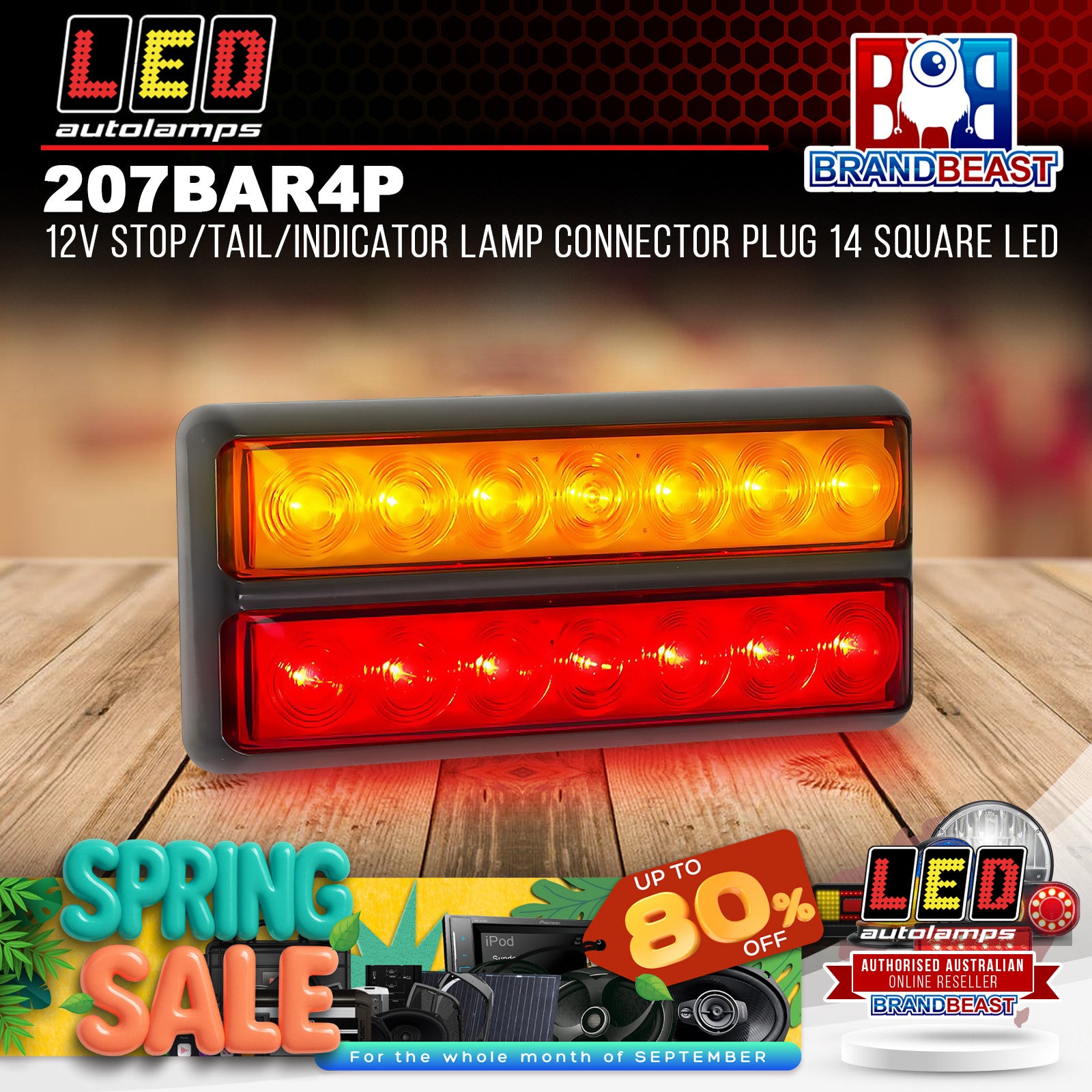

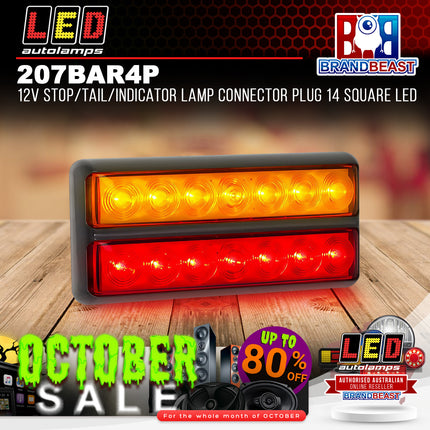

LED Autolamps 207BAR4P 12V Stop Tail Indicator and Licence Plate Boat Trailer Combination Lamp Left Side 200mm x 92mm x 28mm 4 Pin ADR Approved CTA037371 IP67
The LED Autolamps 207BAR4P is a 12V LED stop/tail/indicator and licence plate combination lamp for the left side of boat trailers. 200mm x 92mm x 28mm black housing, 4-pin plug-in connector, fully submersible, ADR approved (CTA037371), IP67 waterproof. Current draw at 13.8V: stop 0.18A, tail 0.07A, indicator 0.17A, licence 0.02A. Five-year warranty. Sold individually.
Product overview
The 207BAR4P is a purpose-designed boat trailer lamp covering stop, tail, indicator, and licence plate functions in a single left-side unit. The fully submersible IP67 rating suits boat trailer applications where the lamp is regularly submerged during boat launching and retrieval. The 4-pin plug-in connector is compatible with plug-in cable kit systems for simplified wiring. ADR approval CTA037371 confirms road-legal compliance in Australia. 12V only. The matched right-side lamp has different dimensions (200mm x 113mm x 28mm) and is sold as a separate SKU.
Features and benefits
Stop, tail, indicator, and licence plate in one unit: Four-function left-side boat trailer lamp.
Fully submersible IP67 rating: Designed for repeated water immersion during boat launching and retrieval.
4-pin plug-in connector: Compatible with plug-in cable kit systems for simplified wiring.
Left side only: Designed specifically for the left-hand rear position on boat trailers.
ADR approved (CTA037371): Compliant for road use in Australia.
12V only.
Five-year warranty.
Technical specs
| Specification |
Detail |
| SKU |
207BAR4P |
| Brand |
LED Autolamps |
| Type |
Stop/tail/indicator/licence plate combination lamp |
| Side |
Left |
| Light Type |
LED |
| Operating Voltage |
12V |
| Current Draw (Stop) |
0.18A at 13.8V |
| Current Draw (Tail) |
0.07A at 13.8V |
| Current Draw (Indicator) |
0.17A at 13.8V |
| Current Draw (Licence) |
0.02A at 13.8V |
| Housing Colour |
Black |
| Connector |
4-pin plug |
| Dimensions |
200mm x 92mm x 28mm |
| Waterproof Rating |
IP67 |
| ADR Compliance |
CTA037371 |
| Weight |
0.302kg |
| Manufactured In |
China (Taiwan) |
| Sold As |
Each (left side only) |
| Warranty |
Five years |
Frequently asked questions
Is the 207BAR4P ADR approved?
Yes. The 207BAR4P holds ADR approval CTA037371, confirming compliance for road use in Australia as a stop/tail/indicator and licence plate combination lamp.
Is the 207BAR4P suitable for boat trailer use?
Yes. The IP67 fully submersible rating makes the 207BAR4P suited to boat trailer applications where the lamp is regularly submerged during launching and retrieval.
Does the 207BAR4P include a licence plate lamp function?
Yes. In addition to stop, tail, and indicator, the 207BAR4P includes a licence plate lamp function drawing 0.02A at 13.8V.
Is there a matched right-side lamp for the 207BAR4P?
Yes. The right-side lamp is a separate SKU with different dimensions of 200mm x 113mm x 28mm. Contact us to confirm the correct right-side SKU for your application.
Is the 207BAR4P sold as a single unit or a pair?
Sold individually as the left-side lamp only. The right-side lamp is a separate SKU with different dimensions.
