Description

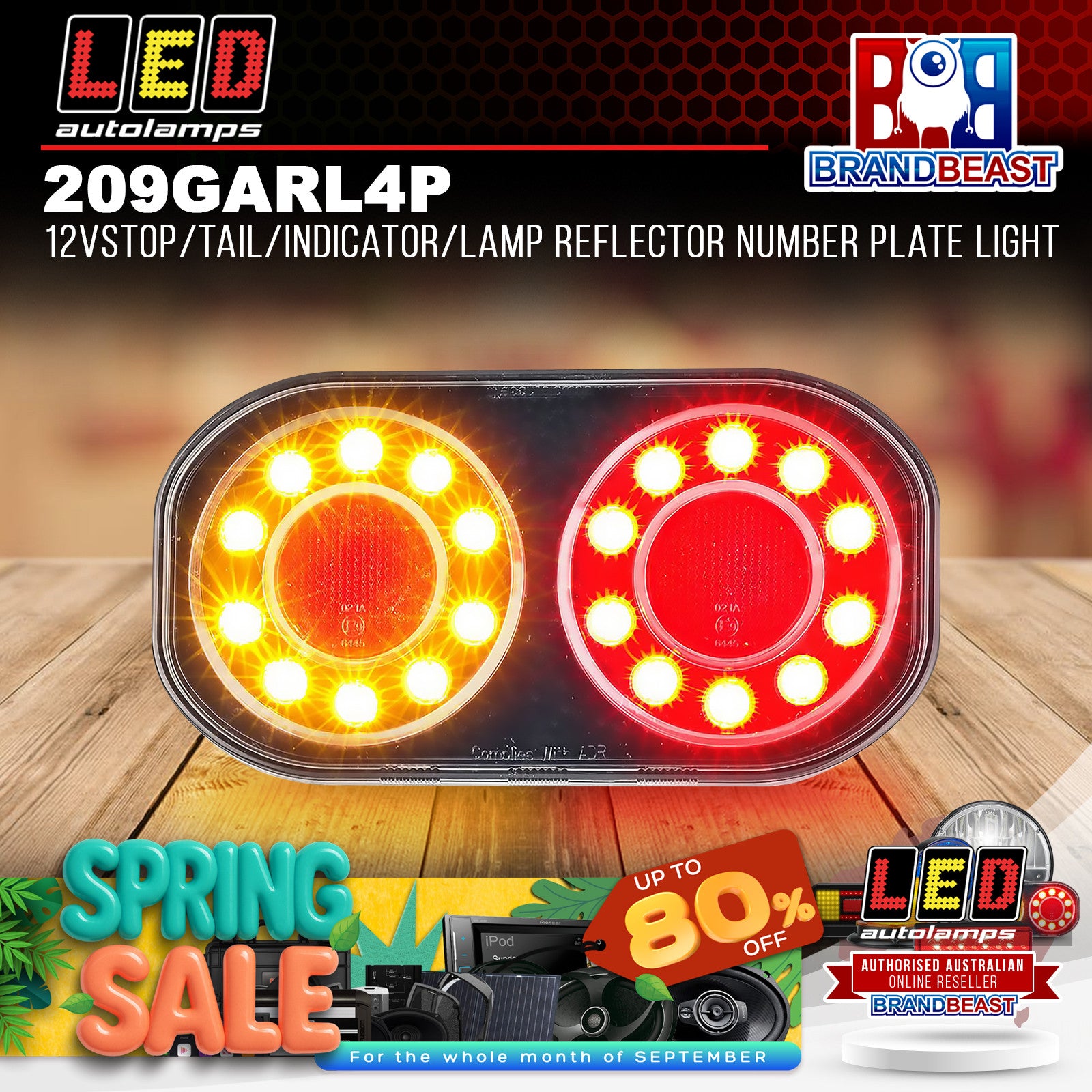

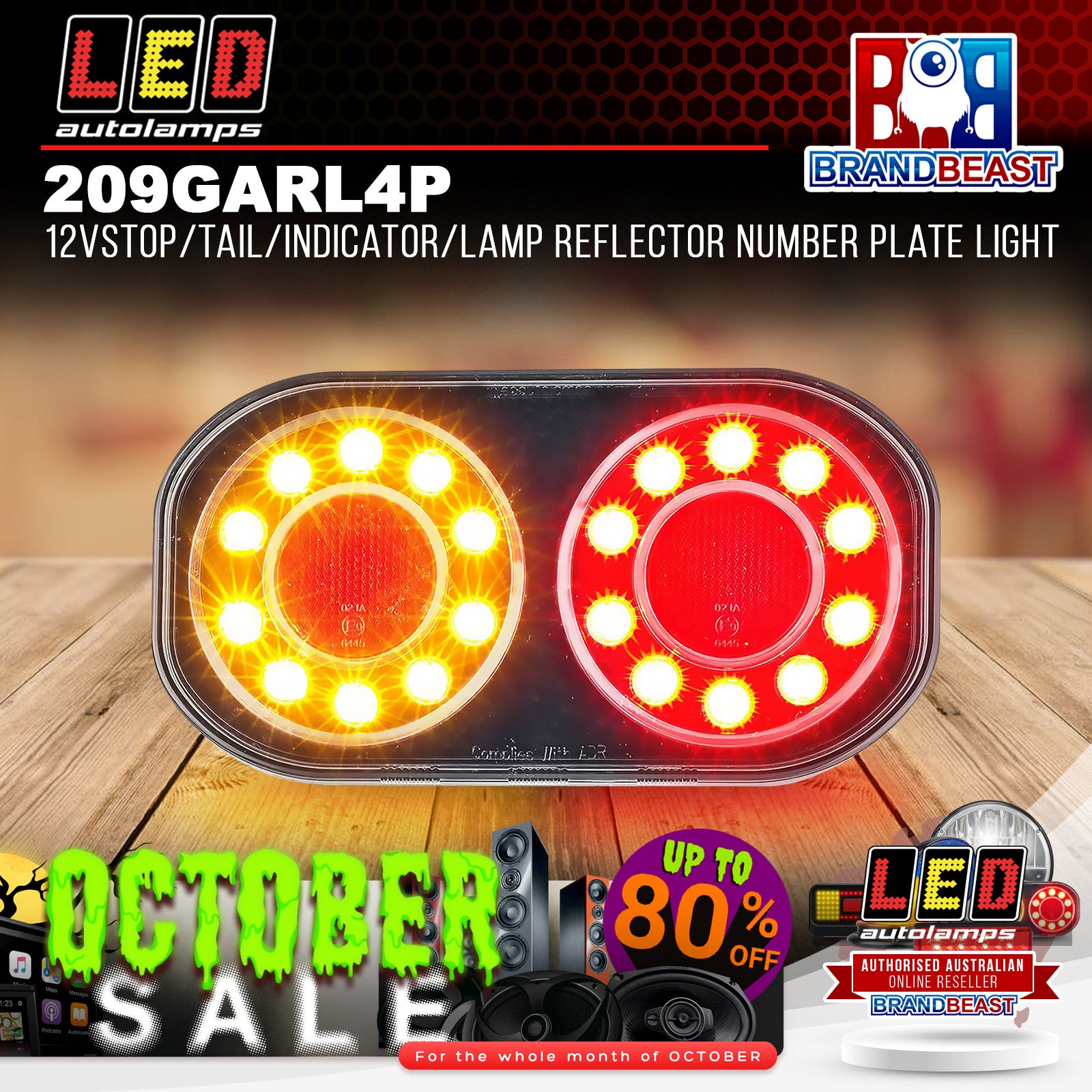

LED Autolamps 209GARL4P 12V LED Stop Tail Indicator Combination Lamp with Reflector and Number Plate Light ADR Approved IP67 Right Side
The LED Autolamps 209GARL4P is a 12V LED combination lamp covering stop, tail, indicator, reflector, and number plate light functions in a single right-side unit. ADR approved across all five functions, IP67 rated, and fully submersible. Compatible with plug-in cable kits. Includes 40cm cable with plug. Five-year warranty. Sold individually.
Product overview
The 209GARL4P combines stop, tail, indicator, reflector, and number plate lighting in a single black-housing right-side lamp. Twenty LEDs cover the stop, tail, and indicator functions; three dedicated LEDs illuminate the number plate. The included 40cm cable with plug simplifies connection. IP67 waterproof rating confirms full submersion capability, suited to trailer, caravan, and off-road lighting applications. ADR approval covers stop/tail, indicator, reflector, and licence plate light functions independently. CTA approval CTA-060158 covers the combined assembly.
Draw at 13.8V: stop 0.117A, tail 0.045A, indicator 0.150A.
Plug-in cable kit compatible. Five-year manufacturer warranty.
Features and benefits
20 LED stop/tail/indicator plus 3 LED number plate light: All five functions in a single right-side unit.
ADR approved across all functions: Individual ADR approvals for stop/tail (49/00), indicator (6/00 2a), reflector (47/00), and licence plate (48/00). CTA combined approval CTA-060158.
IP67 fully waterproof and submersible: Suited to trailer, caravan, and off-road applications.
40cm cable with plug included: Ready for connection without additional cable assembly.
Plug-in cable kit compatible: Suits Aerpro and compatible plug-in cable kits.
Black housing.
Five-year warranty.
Technical specs
| Specification |
Detail |
| SKU |
209GARL4P |
| Brand |
LED Autolamps |
| Type |
Stop/tail/indicator combination lamp |
| Side |
Right |
| Functions |
Stop, tail, indicator, reflector, number plate light |
| Light Type |
LED |
| Stop/Tail/Indicator LEDs |
20 |
| Number Plate LEDs |
3 |
| Operating Voltage |
12V |
| Current Draw (Stop) |
0.117A at 13.8V |
| Current Draw (Tail) |
0.045A at 13.8V |
| Current Draw (Indicator) |
0.150A at 13.8V |
| Cable |
40cm with plug |
| Housing Colour |
Black |
| Dimensions |
200mm (W) x 92mm (H) x 28mm (D) |
| Weight |
0.36kg |
| Waterproof Rating |
IP67 |
| ADR Stop/Tail |
49/00, CRN 48974 |
| ADR Indicator |
6/00 2a, CRN 48972 |
| ADR Reflector |
47/00, CRN 48973 |
| ADR Licence |
48/00, CRN 49550 |
| CTA Approval |
CTA-060158 |
| Cable Kit Compatible |
Yes, plug-in cable kit compatible |
| Sold As |
Each |
| Warranty |
Five years |
| Manufactured In |
China (Taiwan) |
ADR approvals
| Function |
Category |
CRN |
| Stop/Tail |
49/00 |
48974 |
| Indicator |
6/00 2a |
48972 |
| Reflector |
47/00 |
48973 |
| Licence Plate |
48/00 |
49550 |
| Combined (CTA) |
CTA-060158 |
All functions |
Frequently asked questions
Is the 209GARL4P ADR approved? Yes. The 209GARL4P holds individual ADR approvals for stop/tail (49/00, CRN 48974), indicator (6/00 2a, CRN 48972), reflector (47/00, CRN 48973), and licence plate light (48/00, CRN 49550). The combined assembly carries CTA approval CTA-060158.
What is the IP67 rating? IP67 means the lamp is dustproof and fully submersible in water up to 1 metre for up to 30 minutes. This makes it suited to trailer, caravan, boat trailer, and off-road applications exposed to water ingress and road spray.
What functions does this lamp provide? The 209GARL4P covers stop, tail, indicator, reflector, and number plate light in a single unit.
Is this lamp sold as a single unit or a pair? Sold individually. The 209GARL4P is a right-side lamp. Purchase one for the right and confirm the correct left-side part number with LED Autolamps for a paired installation.
Is cable included? Yes. A 40cm cable with plug is included. The lamp is also compatible with plug-in cable kits.
