Description

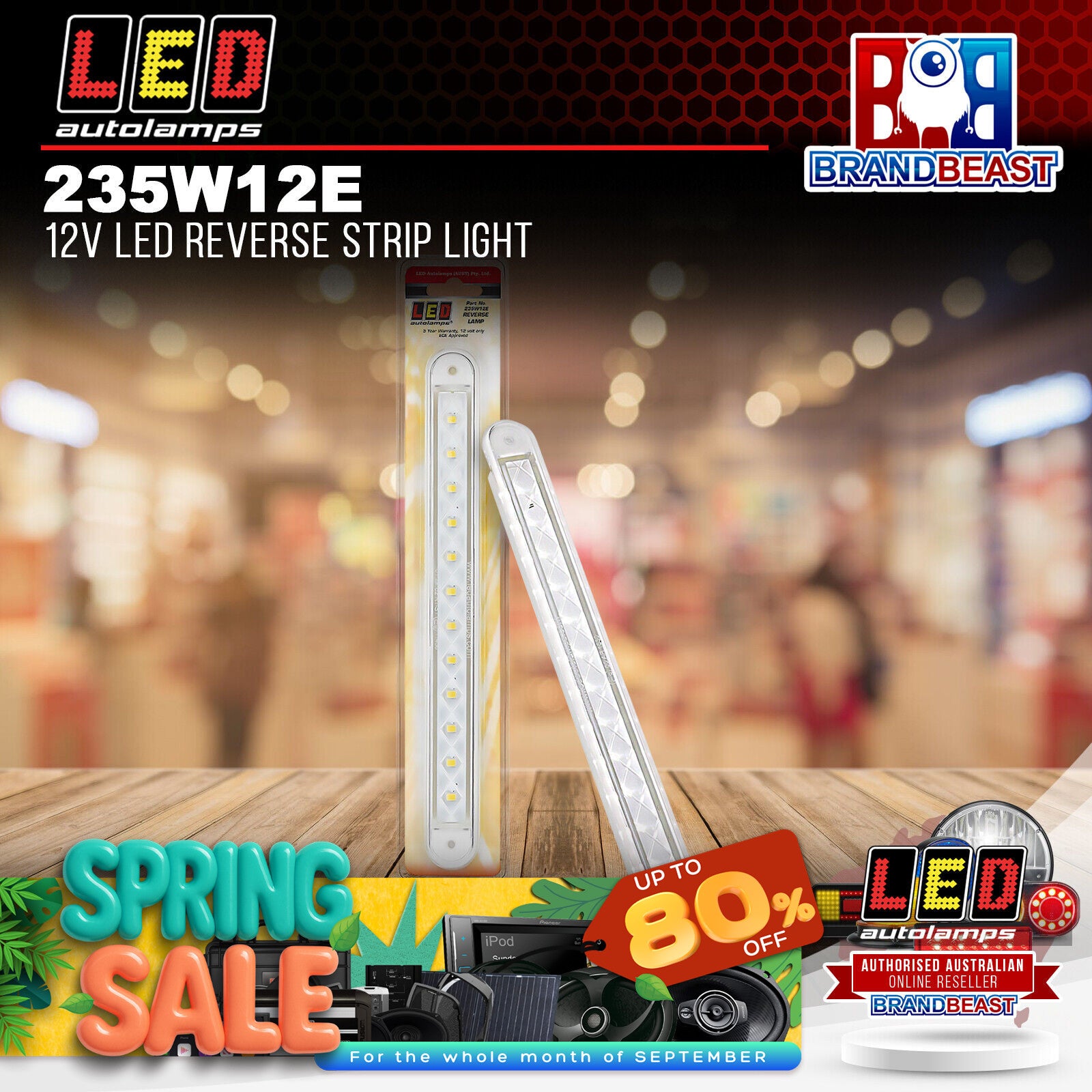

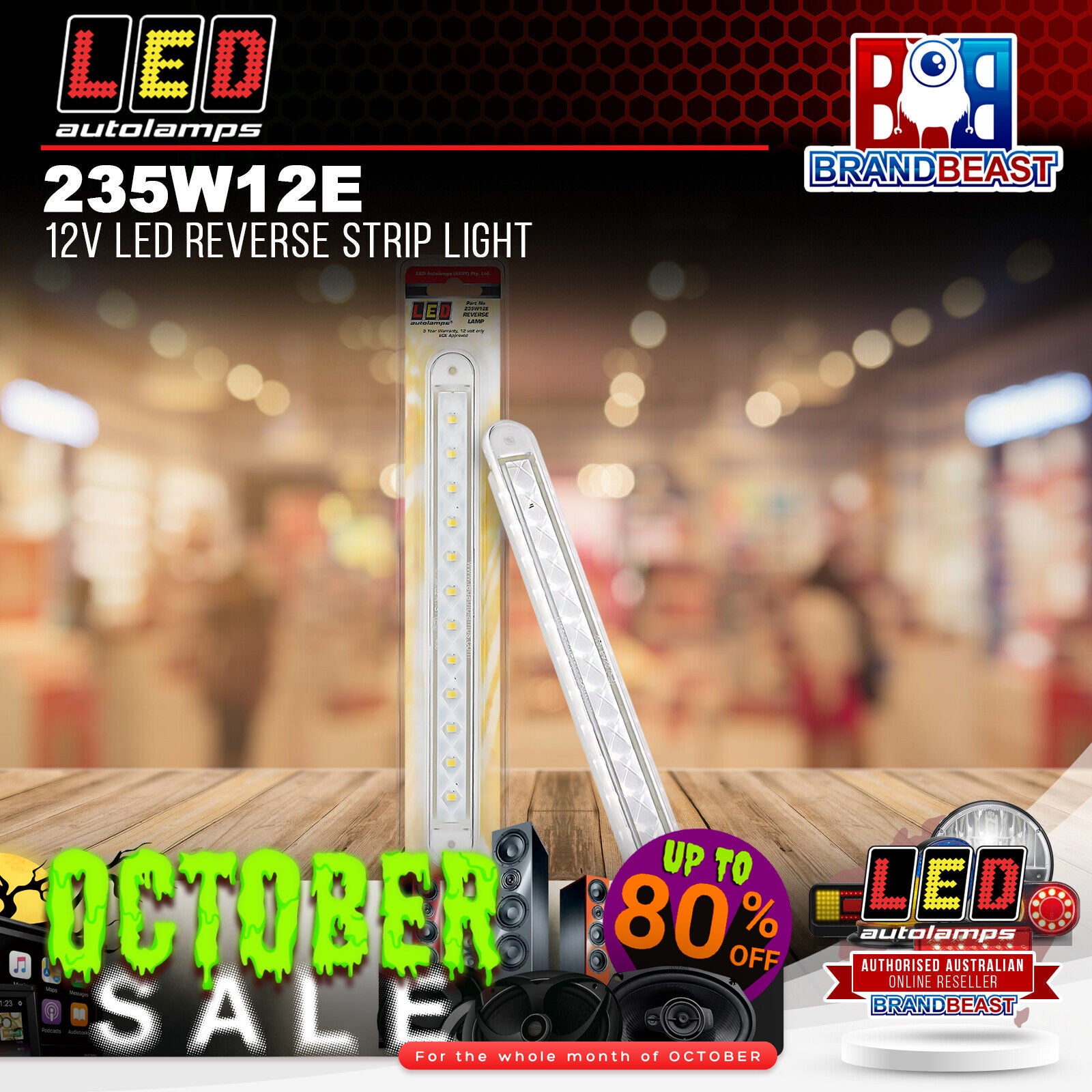

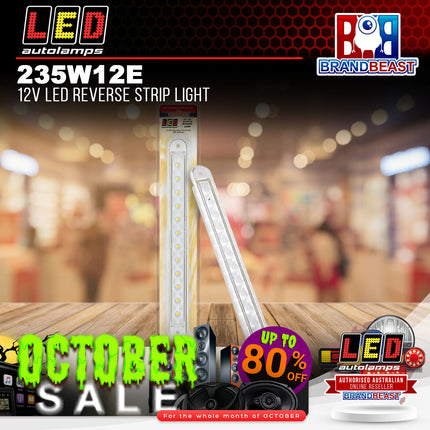

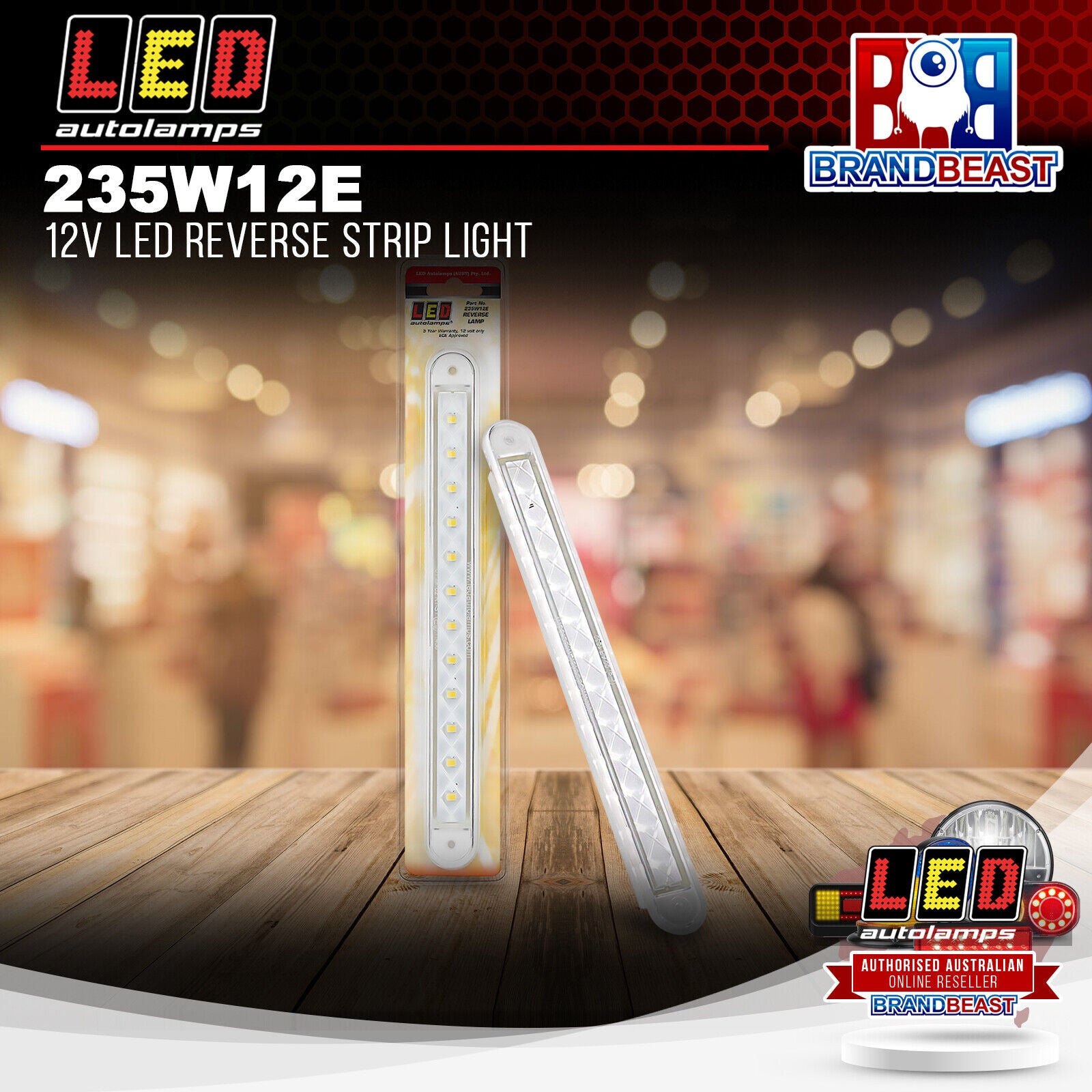

ECE/ADR Approved 12V Reverse Strip Light Ultra-Slim 3mm, 237mm, IP67
Product Overview
The LED Autolamps 235W12E is a 12V white LED reverse strip light measuring 237mm x 25mm x 3mm, sharing the same ultra-slim form factor as the 235A12 indicator strip. Designed for flush recessed mounting, it completes the 235 series strip lamp range with a reverse function drawing just 0.12A at 13.8V for efficient operation.
ECE and ADR approved, IP67 rated, and backed by a 5-year warranty.
Features & Benefits
-
Ultra-slim 3mm depth — flush recessed mount for a clean, integrated finish on trailer and caravan rear panels
-
White LED output — clear, bright reverse light for improved visibility when reversing
-
Low current draw — 0.12A at 13.8V for efficient 12V operation
-
ECE and ADR approved — dual compliance for international and Australian road approval standards as a reverse lamp
-
IP67 rated — fully sealed against dust and water immersion
-
12V only — designed for 12V trailer and vehicle electrical systems
-
5-year warranty — backed by LED Autolamps' full warranty programme
Technical Specs
| Specification |
Detail |
| SKU |
235W12E |
| Lamp Type |
Reverse Strip |
| LED Colour |
White |
| Voltage |
12V |
| Dimensions |
237mm x 25mm x 3mm |
| Current Draw |
0.12A @ 13.8V |
| Mounting |
Recessed flush |
| Protection Rating |
IP67 |
| Compliance |
ECE / ADR |
| Warranty |
5 years |
Compatible With / Goes Well With
- Trailers, caravans, and commercial vehicles requiring flush-mount reverse strip lamps
- 12V trailer and vehicle electrical systems
- LED Autolamps 235A12 indicator strip lamp (same 237mm form factor)
- LED Autolamps 235ASEQ-2 sequential indicator strip (same 237mm form factor)
- LED Autolamps wiring harnesses and trailer lighting accessories
Frequently Asked Questions
Is the 235W12E approved for road use in Australia?
Yes. The 235W12E carries both ECE and ADR approval, meeting international and Australian road approval standards for legal on-road use as a reverse lamp.
How does the 235W12E fit with other 235 series strip lamps?
The 235W12E is the reverse strip in the 235 series, sharing the same 237mm x 25mm x 3mm ultra-slim form factor as the 235A12 indicator strip and 235ASEQ-2 sequential indicator — all suited to matching flush-recessed rear lighting builds.
What is the current draw on the 235W12E?
The 235W12E draws just 0.12A at 13.8V — very efficient for a reverse lamp and well suited to battery-sensitive 12V caravan and trailer electrical systems.
What is the IP rating on the 235W12E?
The 235W12E is rated IP67, meaning it is fully sealed against dust and capable of withstanding water immersion — suitable for exposed trailer and caravan mounting.
What warranty does the 235W12E carry?
The 235W12E is backed by a 5-year warranty from LED Autolamps.
