Description
ADR 48/00 Approved 12/24V Licence Plate Lamp Chrome Base, Twin Blister, Two Required for Compliance
Product Overview

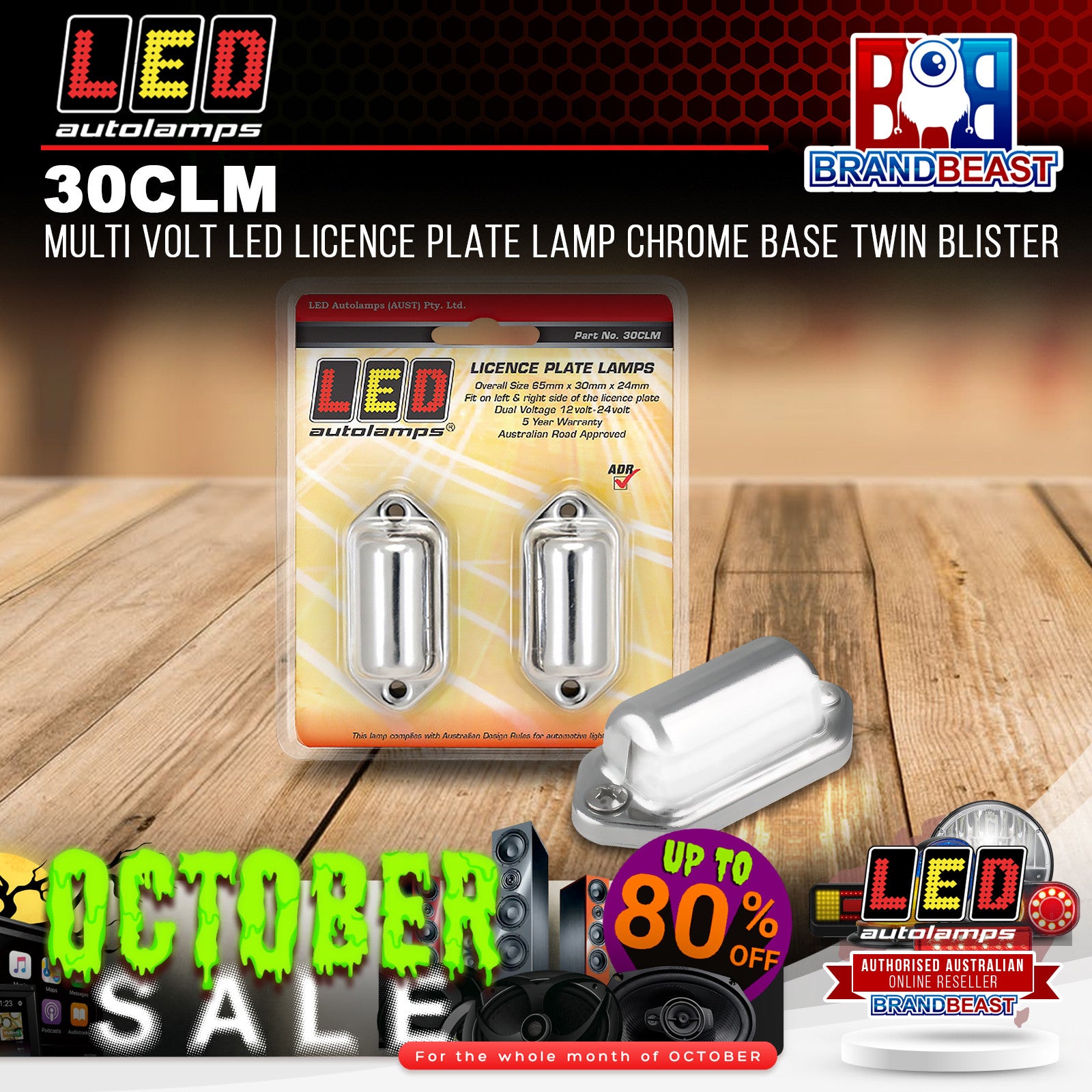

The LED Autolamps 30CLM is a 12/24V chrome base licence plate lamp in a compact 65mm x 30mm x 24mm steel housing, supplied as a twin blister pack. Unlike the 35CLM which requires only one lamp for ADR compliance, the 30CLM requires two lamps to meet ADR 48/00 requirements both units in the twin pack are needed for a compliant installation.
Drawing just 0.02A at 13.8V, it is pre-wired with a 0.14m cable and has a 65mm centre-to-centre mount spacing. Rated IP67 and backed by a 5-year warranty.
Features & Benefits
-
Chrome base — premium finish for trailer and vehicle rear panel installations
-
Steel housing — robust metal construction for durability in demanding transport environments
-
Twin blister pack — both lamps supplied; both are required for ADR 48/00 compliance
-
ADR 48/00 approved — meets Australian Design Rules for licence plate illumination; two lamps required for compliance
-
IP67 rated — fully sealed against dust and water immersion
-
Very low current draw — 0.02A at 13.8V for near-zero impact on vehicle electrical systems
-
0.14m pre-wired cable — compact cable lead for clean installation near the number plate
-
12/24V dual voltage — compatible with both 12V light vehicles and 24V heavy transport
-
5-year warranty — backed by LED Autolamps' full warranty programme
Technical Specs
| Specification |
Detail |
| SKU |
30CLM |
| Lamp Type |
Licence Plate Light |
| Voltage Range |
12V – 24V |
| Dimensions |
65mm x 30mm x 24mm |
| Mount Centre-to-Centre |
65mm |
| Current Draw |
0.02A @ 13.8V |
| Cable Length |
0.14m |
| Housing |
Steel, chrome base |
| Mounting |
Surface mount |
| Protection Rating |
IP67 |
| Compliance |
ADR 48/00 |
| ADR Note |
Two lamps required for compliance |
| Packaging |
Blister pack (2 lamps) |
| Warranty |
5 years |
Compatible With / Goes Well With
- Trailers, trucks, and commercial vehicles requiring ADR 48/00 compliant licence plate illumination
- 12V light vehicles and 24V heavy transport applications
- LED Autolamps 35CLM licence plate light (single-lamp ADR compliant alternative)
- LED Autolamps wiring harnesses and trailer lighting accessories
Frequently Asked Questions
How many 30CLM lamps are required for ADR compliance?
Two lamps are required to meet ADR 48/00 compliance — the twin blister pack supplies both, so a single pack purchase provides a fully compliant installation.
Is the 30CLM approved for road use in Australia?
Yes. The 30CLM is ADR 48/00 approved, meeting Australian Design Rules requirements for legal on-road use as a licence plate lamp — when two units are fitted as specified.
How does the 30CLM differ from the 35CLM?
The 30CLM requires two lamps for ADR compliance and has a chrome base steel housing at 65mm x 30mm, while the 35CLM requires only one lamp and measures 76mm x 42mm. Both are ADR-approved licence plate lamps — choose based on your vehicle's mounting configuration and aesthetic preference.
What is the current draw of the 30CLM?
The 30CLM draws just 0.02A at 13.8V — an extremely low current that has virtually no impact on the vehicle's electrical system.
What warranty does the 30CLM carry?
The 30CLM is backed by a 5-year warranty from LED Autolamps.
