Description
LED Autolamps 35CLM 12-24V LED Licence Plate Lamp Chrome 76mm x 42mm x 30mm 64mm Mounting Centres 40cm Wire ADR Approved CTA060024 ADR 48/00 IP67

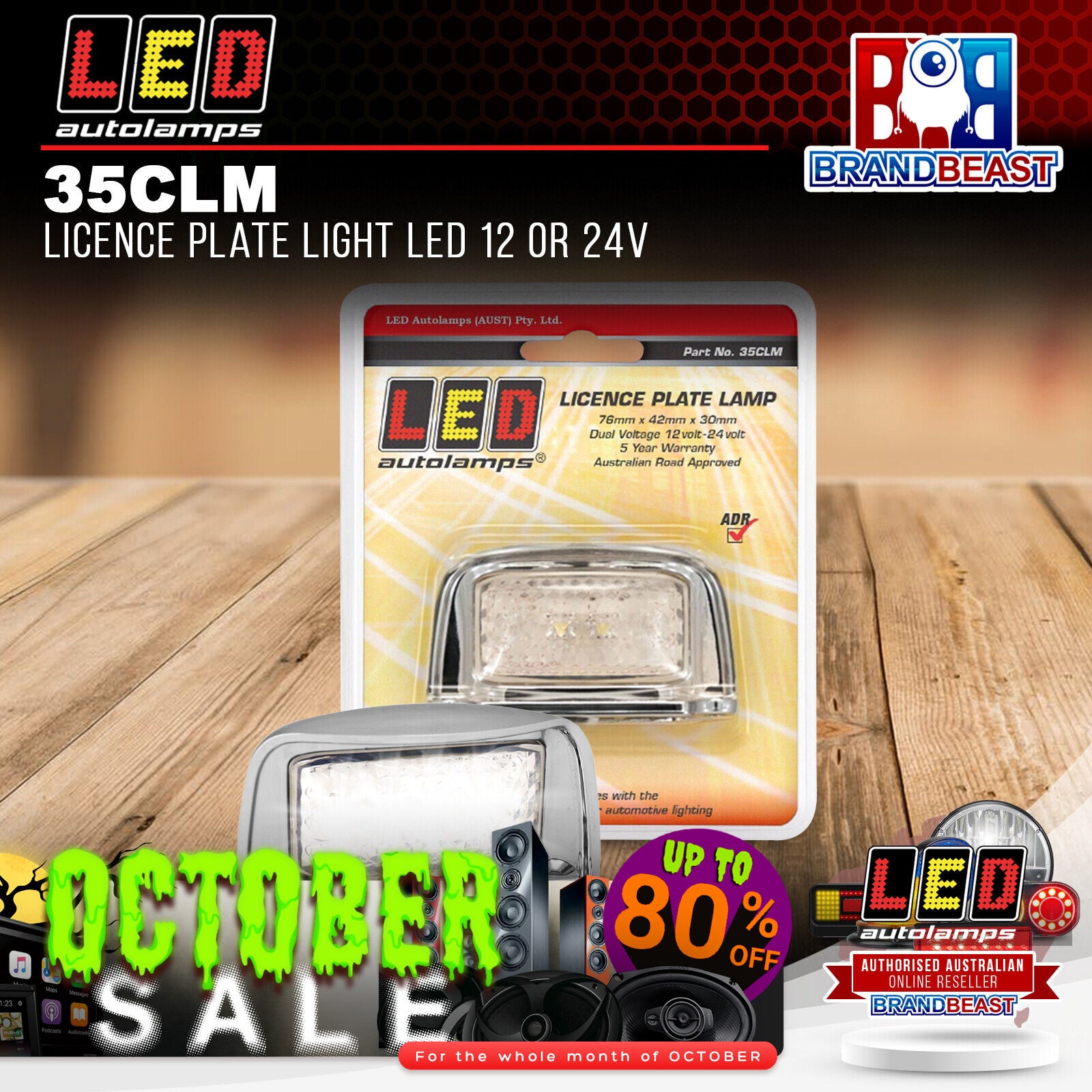

The LED Autolamps 35CLM is a 12-24V LED licence plate lamp with chrome housing in a 76mm x 42mm x 30mm housing. 64mm mounting centres, 40cm cable. ADR approved (CTA060024, ADR 48/00), IP67 waterproof, 0.04A at 13.8V, white LED. Five-year warranty. Note: one lamp only is required for ADR 48/00 compliance. Sold individually.
Product overview
The 35CLM is the chrome housing version of the 35BLM licence plate lamp, sharing the same 76mm x 42mm x 30mm dimensions, ADR CTA060024 and ADR 48/00 approval, 64mm mounting centres, and 40cm cable with a chrome finish in place of black. One lamp is required for ADR 48/00 compliance. 12-24V compatible. IP67 rated.
Features and benefits
ADR approved (CTA060024, ADR 48/00): Compliant for road use in Australia as a licence plate lamp.
One lamp required for ADR compliance: A single 35CLM meets ADR 48/00 requirements.
Chrome housing: Bright chrome finish for trailers and vehicles where a chrome lamp is preferred.
76mm x 42mm x 30mm housing.
64mm mounting centres.
40cm cable.
White LED output.
IP67 fully waterproof and submersible.
0.04A current draw at 13.8V.
12V and 24V compatible.
Five-year warranty.
Sold individually.
Technical specs
| Specification |
Detail |
| SKU |
35CLM |
| Brand |
LED Autolamps |
| Type |
Licence plate lamp |
| Light Type |
LED |
| LED Colour |
White |
| Housing Colour |
Chrome |
| Operating Voltage |
12V to 24V |
| Current Draw |
0.04A at 13.8V |
| Mount Type |
Surface mount |
| Mounting Centres |
64mm |
| Cable Length |
40cm |
| Dimensions |
76mm x 42mm x 30mm |
| Waterproof Rating |
IP67 |
| ADR Compliance |
CTA060024, ADR 48/00 |
| Weight |
0.1kg |
| Manufactured In |
China (Taiwan) |
| Warranty |
Five years |
Frequently asked questions
Is the 35CLM ADR approved?
Yes. The 35CLM holds ADR approval CTA060024 and meets ADR 48/00, confirming compliance for road use in Australia as a licence plate lamp.
How many 35CLM lamps are required for ADR compliance?
Only one lamp is required for ADR 48/00 compliance with the 35CLM.
What is the difference between the 35CLM and the 35BLM?
The 35CLM has a chrome housing. The 35BLM has a black housing. Both share the same 76mm x 42mm x 30mm dimensions, 64mm mounting centres, 40cm cable, ADR CTA060024 and ADR 48/00 approval, and five-year warranty. The 35CLM draws 0.04A at 13.8V; the 35BLM draws 0.02A.
What voltage does the 35CLM operate on?
The 35CLM operates on 12V and 24V systems.
What is the current draw of the 35CLM?
The 35CLM draws 0.04A at 13.8V.
