Description
ECE Approved Slimline Stop/Tail/Indicator Lamp 404mm, 17mm Depth, IP67, Horizontal or Vertical Mount
Product Overview

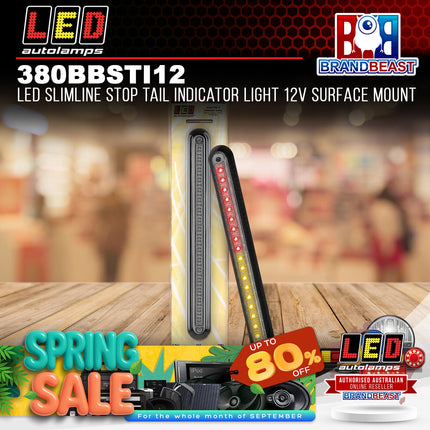

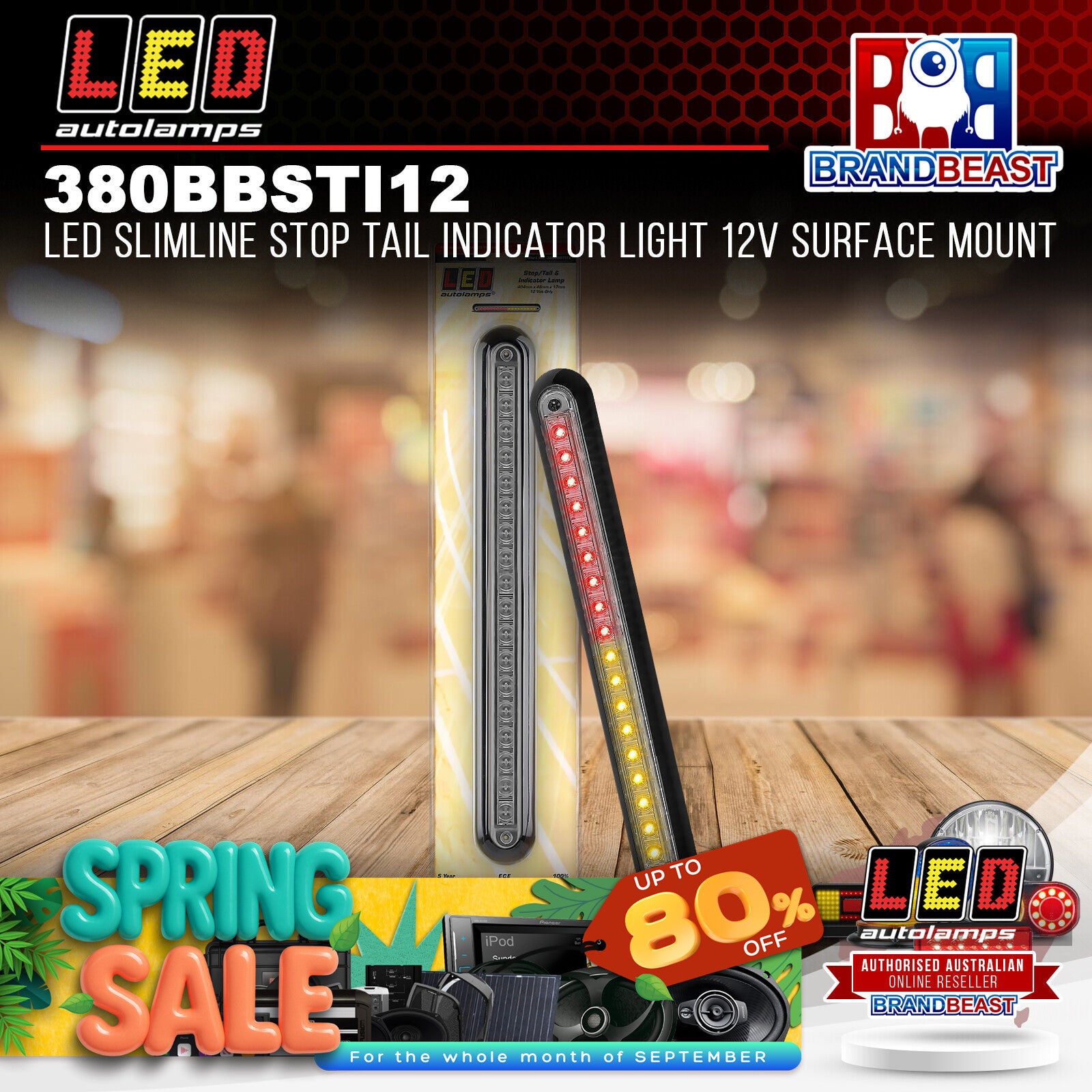

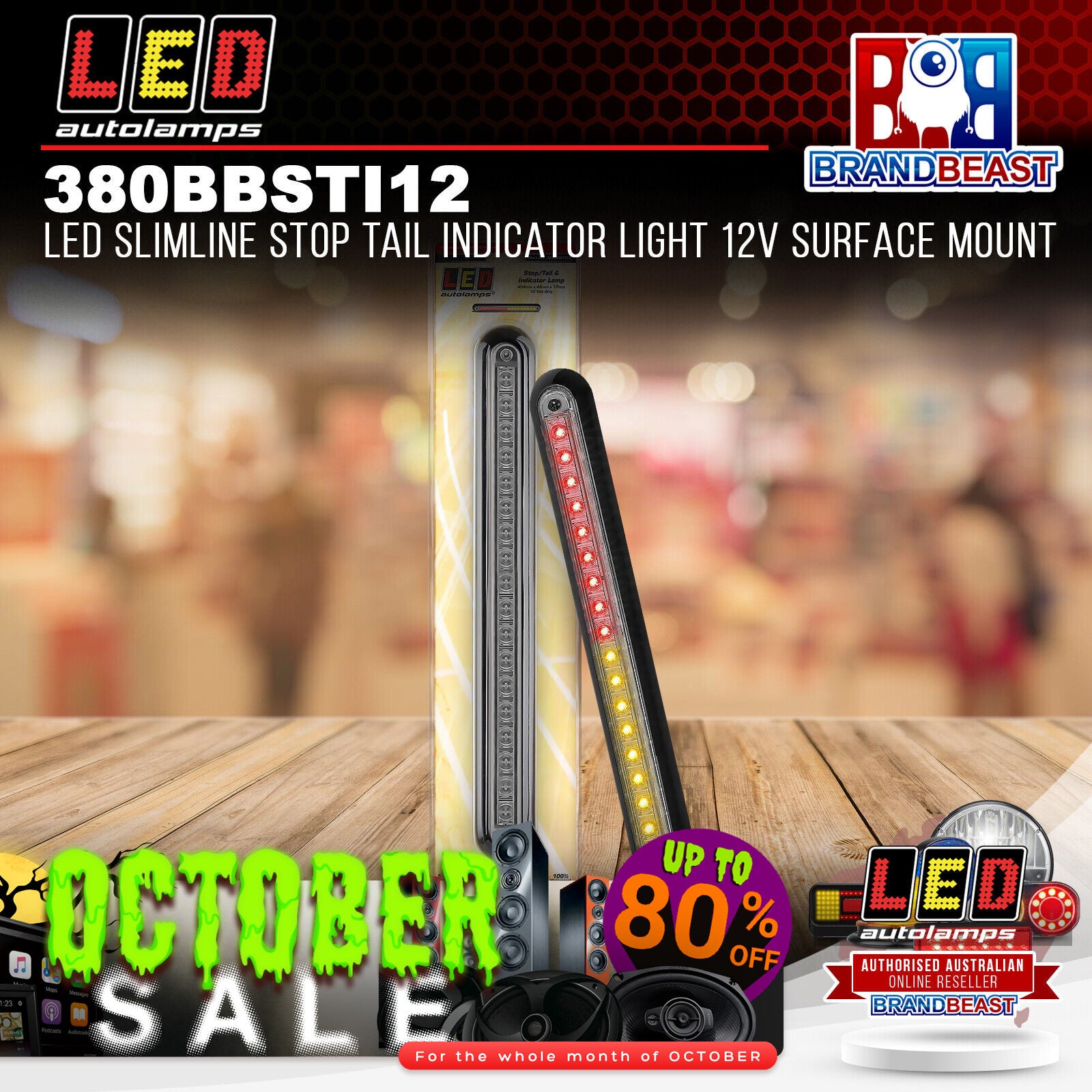

The LED Autolamps 380BBSTI12 is a 12V slimline LED combination lamp delivering stop, tail, and indicator functions in a single 404mm x 46mm x 17mm surface-mount unit. The ultra-slim 17mm depth suits installations where space is limited trailer chassis rails, tailgate edges, and narrow rear panels where conventional combination lamps are too bulky.
ECE road approved for ADR compliance and rated IP67 for submersion up to 1 metre suited to boat trailers, agricultural equipment, and Australian outback conditions. Horizontal and vertical mounting orientations are supported, and the 50,000+ hour LED lifespan eliminates incandescent globe replacement. Backed by a 5-year warranty.
Features & Benefits
-
Ultra-slim 17mm depth — fits on narrow chassis rails, tailgate edges, and confined mounting spaces where conventional lamps won't
-
404mm x 46mm slimline form factor — low-profile surface mount reduces damage risk and suits custom trailer and caravan fabrications
-
Stop, tail, and indicator combined — three functions in a single unit, reducing wiring complexity and parts count
-
ECE road approved — meets international standards recognised under Australian Design Rules for legal on-road use
-
IP67 rated — sealed against dust and water immersion to 1 metre depth; suitable for boat trailer launching and agricultural use
-
Horizontal or vertical mounting — flexible orientation suits varying trailer and vehicle configurations
-
50,000+ hour LED lifespan — long-term, low-maintenance operation well beyond incandescent lamp service life
-
12V only — designed for 12V trailer and vehicle electrical systems
-
5-year warranty — backed by LED Autolamps' full warranty programme
Technical Specs
| Specification |
Detail |
| SKU |
380BBSTI12 |
| Lamp Type |
Stop / Tail / Indicator |
| Voltage |
12V DC |
| Dimensions |
404mm x 46mm x 17mm |
| Mounting |
Surface mount (horizontal or vertical) |
| Protection Rating |
IP67 |
| Compliance |
ECE (ADR recognised) |
| LED Lifespan |
50,000+ hours |
| Warranty |
5 years |
Compatible With / Goes Well With
- Box trailers, flatbed trailers, caravans, camper trailers, and horsefloats
- Boat trailers requiring IP67-rated submersible rear lighting
- Agricultural equipment and commercial vehicle bodies
- 12V trailer and vehicle electrical systems
- LED Autolamps number plate lamps, reverse lamps, and side marker lamps
- LED Autolamps wiring harnesses and trailer lighting accessories
Frequently Asked Questions
Is the 380BBSTI12 approved for road use in Australia?
Yes. The 380BBSTI12 is ECE road approved, meeting international lighting standards recognised under Australian Design Rules for legal on-road use on trailers and vehicles.
Can the 380BBSTI12 be used on a boat trailer?
Yes. The IP67 rating covers submersion to 1 metre for 30 minutes, making it suitable for boat trailer use at launch ramps. For saltwater use, rinse the lamp and connections with fresh water after submersion and inspect regularly to maintain sealing integrity.
Is the 380BBSTI12 compatible with 24V systems?
No. The 380BBSTI12 is rated for 12V DC only and will be damaged by connection to a 24V system.
Do I need two lamps for a trailer?
Yes. Trailers require combination lamps on both left and right sides for legal compliance. The 380BBSTI12 is sold individually — two units are needed for a complete installation.
Can the 380BBSTI12 be mounted vertically?
Yes. It supports both horizontal and vertical surface mounting, accommodating different trailer and vehicle panel configurations.
