Description
ADR Approved LHS Stop/Tail/Indicator/Reverse Checker Plate Lens, Diffused Tail, Harness Plug, IP67
Product Overview

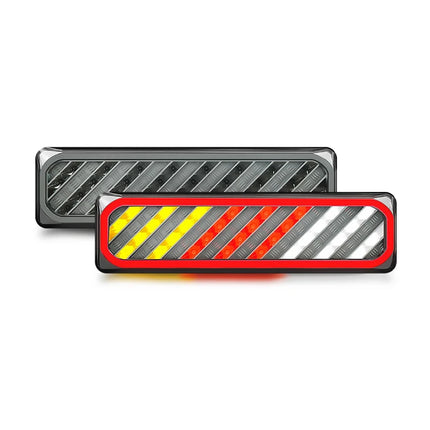

The LED Autolamps 3856ARWMLCSB is the left-hand side (LHS) companion to the 3856ARWMRCSB a rear combination lamp with the distinctive checker plate lens design, covering stop, tail, indicator, and reverse with diffused tail function in the same 387mm x 105mm x 30.5mm form factor. The cable harness plug provides plug-and-play wiring connection.
ADR approved, IP67 rated, and backed by a 5-year warranty.
Features & Benefits
-
LHS (left-hand side) lamp — handed design for correct positioning on the left rear of the vehicle
-
Checker plate lens — distinctive grid-pattern lens for a premium, recognisable rear lighting appearance
-
Diffused tail function — smooth, even tail light output across the checker plate lens face
-
Cable harness plug — plug-and-play wiring connection for faster, cleaner installation
-
Stop, tail, indicator, and reverse — four rear lighting functions
-
ADR approved — meets Australian Design Rules for legal on-road use
-
IP67 rated — fully sealed against dust and water immersion
-
12/24V dual voltage — compatible with both 12V light vehicles and 24V heavy transport
-
5-year warranty — backed by LED Autolamps' full warranty programme
Technical Specs
| Specification |
Detail |
| SKU |
3856ARWMLCSB |
| Side |
LHS (Left-Hand Side) |
| Lamp Type |
Stop / Tail / Indicator / Reverse |
| Lens |
Checker plate pattern |
| Tail Function |
Diffused |
| Voltage Range |
12V / 24V |
| Dimensions |
387mm x 105mm x 30.5mm |
| Connector |
Cable harness plug |
| Mounting |
Surface mount |
| Protection Rating |
IP67 |
| Compliance |
ADR |
| Warranty |
5 years |
Compatible With / Goes Well With
- Caravans, trailers, and custom builds requiring checker plate lens rear combination lamps
- 12V light vehicles and 24V heavy transport applications
- LED Autolamps 3856ARWMRCSB (RHS companion — matched pair)
- LED Autolamps wiring harnesses and trailer lighting accessories
Frequently Asked Questions
Is the 3856ARWMLCSB approved for road use in Australia?
Yes. The 3856ARWMLCSB is ADR approved, meeting Australian Design Rules requirements for legal on-road use across all four functions.
Is the 3856ARWMLCSB specifically for the left side?
Yes. It is a LHS handed lamp for the left rear position. The matching RHS lamp is the 3856ARWMRCSB.
Does the 3856ARWMLCSB have a sequential indicator?
Sequential indicator was not confirmed in available supplier data for this SKU — confirm with LED Autolamps whether the LHS and RHS checker variants have the same indicator function.
What is the IP rating on the 3856ARWMLCSB?
The 3856ARWMLCSB is rated IP67, meaning it is fully sealed against dust and capable of withstanding water immersion.
What warranty does the 3856ARWMLCSB carry?
The 3856ARWMLCSB is backed by a 5-year warranty from LED Autolamps.
