Description
ADR Approved RHS Stop/Tail/Indicator/Reverse Checker Lens, Diffused Tail, Harness Plug, IP67
Product Overview

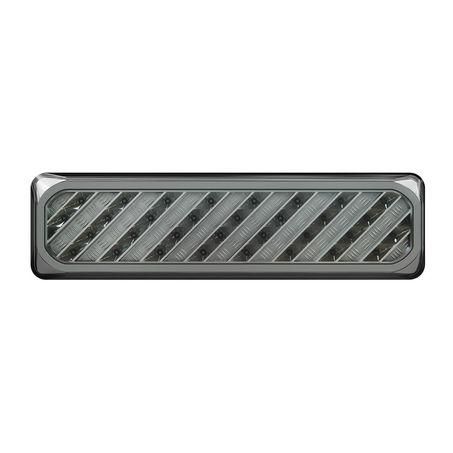

The LED Autolamps 3856ARWMRCSB is a right-hand side (RHS) rear combination lamp with a distinctive checker pattern lens, covering stop, tail, indicator, and reverse with diffused tail function in the same 387mm x 105mm x 30.5mm form factor. The cable harness plug provides plug-and-play wiring connection.
ADR approved, IP67 rated, and backed by a 5-year warranty.
Features & Benefits
-
RHS (right-hand side) lamp — handed design for correct positioning on the right rear of the vehicle
-
Checker lens pattern — distinctive lens design for a premium, recognisable rear lighting appearance
-
Diffused tail function — smooth, even tail light output across the checker lens face
-
Cable harness plug — plug-and-play wiring connection for faster, cleaner installation
-
Stop, tail, indicator, and reverse — four rear lighting functions
-
ADR approved — meets Australian Design Rules for legal on-road use
-
IP67 rated — fully sealed against dust and water immersion
-
12/24V dual voltage — compatible with both 12V light vehicles and 24V heavy transport
-
5-year warranty — backed by LED Autolamps' full warranty programme
Technical Specs
| Specification |
Detail |
| SKU |
3856ARWMRCSB |
| Side |
RHS (Right-Hand Side) |
| Lamp Type |
Stop / Tail / Indicator / Reverse |
| Lens |
Checker pattern |
| Tail Function |
Diffused |
| Voltage Range |
12V / 24V |
| Dimensions |
387mm x 105mm x 30.5mm |
| Connector |
Cable harness plug |
| Mounting |
Surface mount |
| Protection Rating |
IP67 |
| Compliance |
ADR |
| Warranty |
5 years |
Compatible With / Goes Well With
- Caravans, trailers, and custom builds requiring checker lens rear combination lamps
- 12V light vehicles and 24V heavy transport applications
- LED Autolamps 3856ARWMLCSB (LHS companion — confirm SKU availability with F.A.E.)
- LED Autolamps wiring harnesses and trailer lighting accessories
Frequently Asked Questions
Is the 3856ARWMRCSB approved for road use in Australia?
Yes. The 3856ARWMRCSB is ADR approved, meeting Australian Design Rules requirements for legal on-road use across all four functions.
Is the 3856ARWMRCSB specifically for the right side?
Yes. It is a RHS handed lamp for the right rear position. A matching LHS lamp is required for a complete installation.
What is the checker lens pattern?
The checker lens features a distinctive grid-pattern design that distributes light output across the lens face and gives the lamp a recognisable, premium appearance — differentiating it from the circle-cluster 3851/3852/3853 series.
What is the IP rating on the 3856ARWMRCSB?
The 3856ARWMRCSB is rated IP67, meaning it is fully sealed against dust and capable of withstanding water immersion.
What warranty does the 3856ARWMRCSB carry?
The 3856ARWMRCSB is backed by a 5-year warranty from LED Autolamps.
