Description
Heavy Duty Red/Amber Side Marker with Female 2-Pin Plug AS2809 DG Compliant, RoHS, IP67, 20cm Cable.
Product Overview

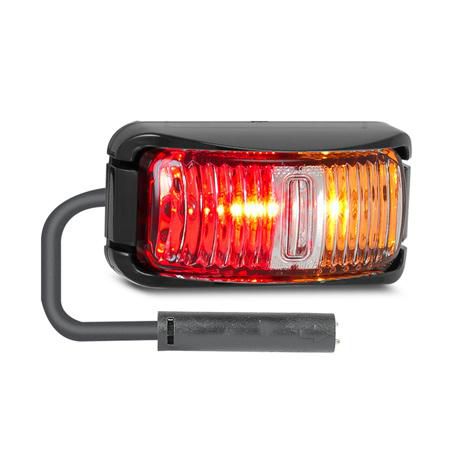

The LED Autolamps 42ARMCSB is a red/amber side marker lamp from the LED Autolamps Heavy Duty Lighting & Harness System the truck and transport-specific variant of the classic 42 Series marker featuring a female 2-pin plug connector and 20cm cable for integration into the LED Autolamps heavy duty plug-and-play harness system.
The 42ARMCSB is a side marker with female 2-pin plug and 20cm cable. The LED Autolamps Heavy Duty system features heavy duty waterproof cable, plugs and connectors, cable system compliance with Dangerous Goods (AS2809), RoHS compliant cables, plugs and lights, plug covers, 5-year warranty (1 year for livestock transport applications).
Suited to B-doubles, rigid trucks, tankers, dangerous goods vehicles, and livestock transport where the plug-and-play harness system is used instead of traditional hardwired lighting installations. Supplied as a single unit.
Key Specifications
- Function: Red/amber side marker
- Connector: Female 2-pin plug
- Cable: 20cm
- Compliance: AS2809 Dangerous Goods, RoHS
- IP rating: IP67
- Warranty: 5 years (1 year livestock transport)
- Pack quantity: Single unit
- Brand: LED Autolamps
- SKU: 42ARMCSB
Features & Benefits
-
Female 2-pin plug connector: Integrates directly into the LED Autolamps Heavy Duty Harness System for fast, tool-free lamp replacement and installation
-
AS2809 Dangerous Goods compliant: Cable system meets AS2809 requirements for dangerous goods transport a critical compliance requirement for tankers, chemical carriers, and DG vehicles
-
RoHS compliant: Cables, plugs, and lights all meet RoHS (Restriction of Hazardous Substances) requirements
-
Heavy duty waterproof connectors: Heavy duty waterproof cable, plugs and connectors with plug covers for reliable long-term connection integrity in harsh operating environments
-
20cm cable: Short fly-lead with 2-pin plug for direct connection to the harness system
-
Red and amber dual colour: Standard red/amber side marker function
-
IP67 waterproof: Completely sealed against dust and temporary water immersion
-
5-year warranty: 5 years standard; 1-year for livestock transport applications
Technical Specs
| Specification |
Detail |
| SKU |
42ARMCSB |
| Brand |
LED Autolamps |
| System |
Heavy Duty Lighting & Harness System |
| Function |
Red/Amber Side Marker |
| Connector |
Female 2-pin plug |
| Cable Length |
20cm |
| IP Rating |
IP67 |
| DG Compliance |
AS2809 Dangerous Goods |
| RoHS |
Yes |
| Warranty |
5 Years (1 Year Livestock Transport) |
| Pack Quantity |
Single unit |
Compatible With
Suits all heavy duty trucks, B-doubles, tankers, and commercial vehicles using the LED Autolamps Heavy Duty Harness System:
- B-double and multi-combination vehicles
- Dangerous goods tankers and chemical carriers
- Rigid trucks and semi-trailers using the LED Autolamps harness system
- Livestock transport (1-year warranty applies)
Frequently Asked Questions
What system does this lamp connect to?
The 42ARMCSB connects to the LED Autolamps Heavy Duty Lighting & Harness System via a female 2-pin plug it is not for standard hardwired installation.
Why is the livestock transport warranty only 1 year?
The LED Autolamps Heavy Duty system carries a 5-year warranty for standard applications and a 1-year warranty for livestock transport applications reflecting the harsher operating conditions in livestock transport.
Is this lamp AS2809 compliant for dangerous goods transport?
Yes the cable system is compliant with Dangerous Goods AS2809, making it suitable for use on dangerous goods vehicles including tankers and chemical carriers.
Is this the same as the standard 42ARM?
The lamp function (red/amber side marker) is the same 42 Series lamp body. The 42ARMCSB differs in that it is pre-wired with a female 2-pin plug and 20cm cable for integration into the heavy duty harness system, rather than the standard direct-wire cable.
What is the return policy for this product?
Return eligibility is subject to the retailer's policy. Contact the seller before ordering if you have any questions.
