Description
Amber Side Direction Indicator with Inbuilt Amber Reflector 3 LEDs, ECE CRN 1331, 12/24V, Single Bulk.
Product Overview

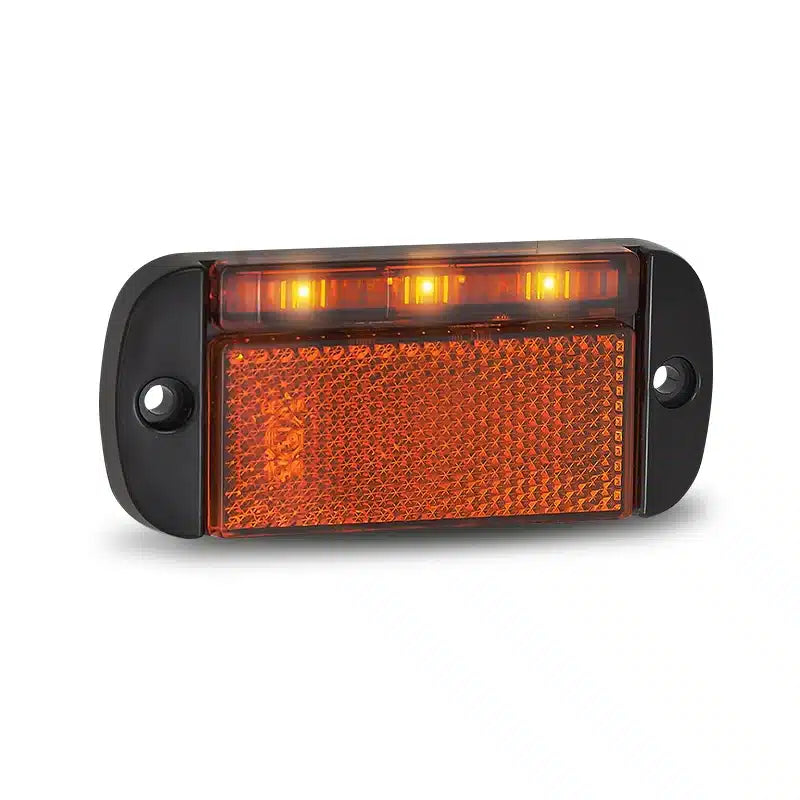

The LED Autolamps 44AMEB is an amber side direction indicator with inbuilt amber reflex reflector from the 44 Series combining active LED indicator output and passive amber reflective compliance in a single slimline low-profile unit. The 44AMEB features PMMA acrylic lens over an ABS base, 3 LEDs, current draw of 0.012A at 13.8V and 0.04A at 28V, ECE Side Direction approval SM1-E9-00 CRN 1331, and Amber Reflector approval 02-E9-1A CRN 1014.
Also carries CTA-060081 compliance. Supplied as a single bulk unit. Measuring 100mm x 44mm x 12mm with a 90° bracket option and 50cm cable (10cm with plugs also available). Surface mount horizontally with screws, run wire through hole in fixing surface. Backed by LED Autolamps' 5-year warranty.
Key Specifications
- Function: Amber side direction indicator + inbuilt amber reflex reflector
- LED count: 3
- Lens material: PMMA acrylic
- Base material: ABS
- Dimensions: 100mm x 44mm x 12mm
- Cable: 50cm (10cm with plugs also available)
- Mount type: Surface mount screws, wire through hole. 90° bracket option available
- Current draw: 0.012A @ 13.8V / 0.04A @ 28V
- IP rating: IP67
- Input voltage: 12–24V DC (multivolt)
- Compliance: ECE Side Direction SM1-E9-00 CRN 1331 / Amber Reflector CRN 1014 / CTA-060081
- Warranty: 5 years
- Pack quantity: Single unit (bulk)
- Brand: LED Autolamps
- SKU: 44AMEB
Features & Benefits
-
Dual function indicator and reflector: ECE approved for both side direction indicator (CRN 1331) and amber reflex reflector (CRN 1014) two compliance codes in one lamp
-
3 amber LEDs: Three LEDs through a PMMA acrylic lens for consistent, visible side direction indicator output
-
Ultra-low current draw: 0.012A at 13.8V: one of the lowest draws in the LED Autolamps range minimal load on indicator circuits
-
Slimline 12mm depth: Low-profile for discreet side panel installation
-
90° bracket option: For angled mounting configurations on corner posts and non-flush surfaces
-
50cm cable: Generous cable length for standard installation configurations
-
ADR/ECE approved: Legal for side direction indicator use on Australian road vehicles and trailers
-
IP67 waterproof: Completely sealed against dust and temporary water immersion
-
12V and 24V compatible: Suits all trailer, caravan, and commercial vehicle applications
-
5-year warranty: Backed by LED Autolamps' 5-year warranty
Technical Specs
| Specification |
Detail |
| SKU |
44AMEB |
| Brand |
LED Autolamps |
| Series |
44 Series |
| Function |
Amber Side Direction Indicator + Amber Reflex Reflector |
| LED Count |
3 |
| Lens Material |
PMMA Acrylic |
| Base Material |
ABS |
| Dimensions |
100mm x 44mm x 12mm |
| Cable Length |
50cm (10cm with plugs also available) |
| Mount Type |
Surface mount screws, 90° bracket option |
| Current Draw |
0.012A @ 13.8V / 0.04A @ 28V |
| IP Rating |
IP67 |
| Input Voltage |
12–24V DC (multivolt) |
| ECE Side Direction |
SM1-E9-00 CRN 1331 |
| Amber Reflector |
02-E9-1A CRN 1014 |
| CTA Compliance |
CTA-060081 |
| Warranty |
5 Years |
| Pack Quantity |
Single unit (bulk) |
Compatible With
Suits all 12V and 24V trailers, caravans, and commercial vehicles requiring amber side direction indicators:
- Boat trailers and marine trailer applications
- Box trailers, car trailers, and general-purpose trailers
- Caravans and camper trailers
- Light and heavy commercial trucks and buses
Frequently Asked Questions
What compliance codes does the 44AMEB carry?
ECE Side Direction SM1-E9-00 CRN 1331, Amber Reflector 02-E9-1A CRN 1014, and CTA-060081.
Does this lamp include a reflector?
Yes the 44AMEB has an inbuilt amber reflex reflector with its own ECE approval (CRN 1014) alongside the side direction indicator approval (CRN 1331).
What is the current draw?
0.012A at 13.8V and 0.04A at 28V an extremely low draw for both 12V and 24V systems.
Is the 90° bracket included?
The 90° bracket is listed as an option confirm with your retailer whether it is included or sold separately.
What is the return policy for this product?
Return eligibility is subject to the retailer's policy. Contact the seller before ordering if you have any questions.
