Description

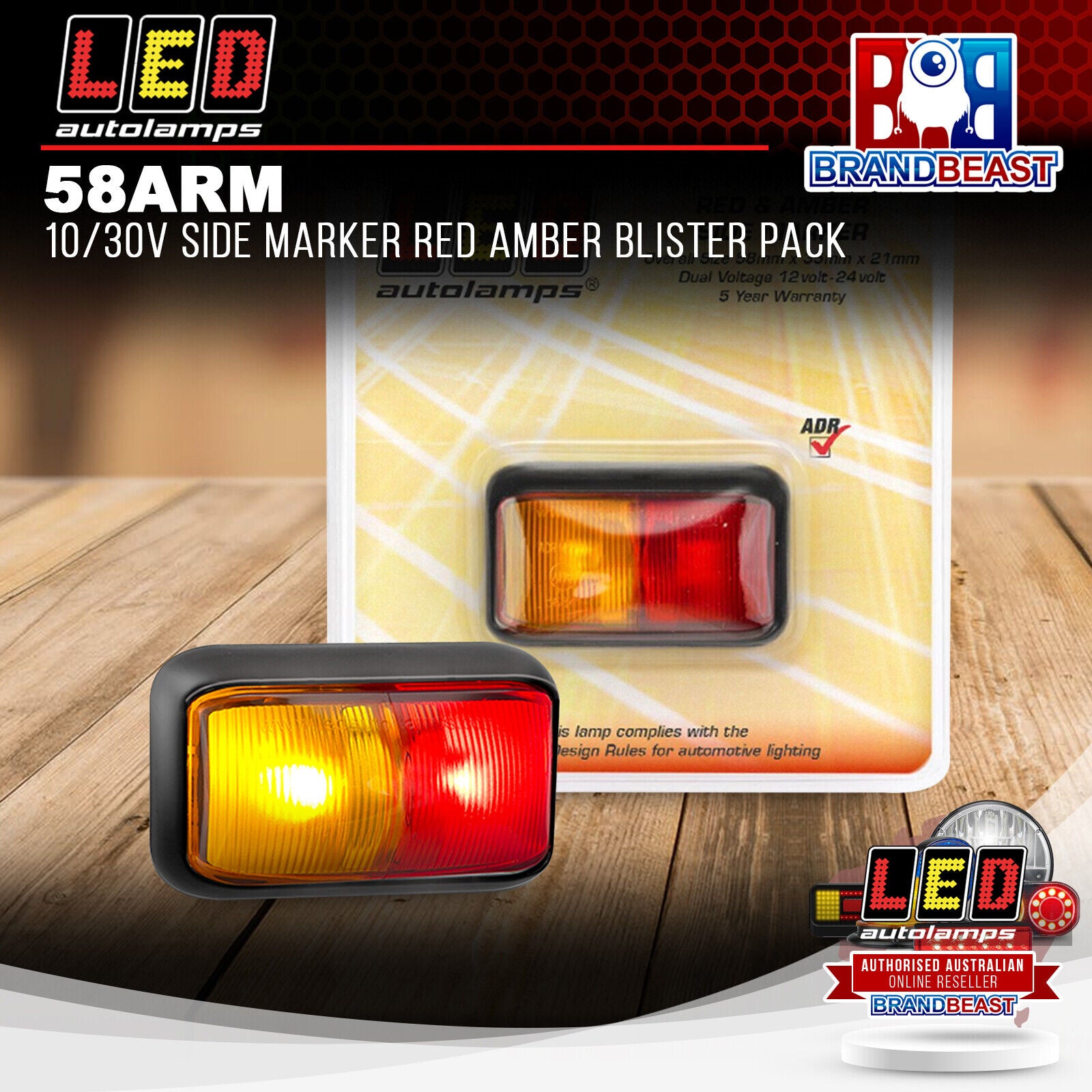

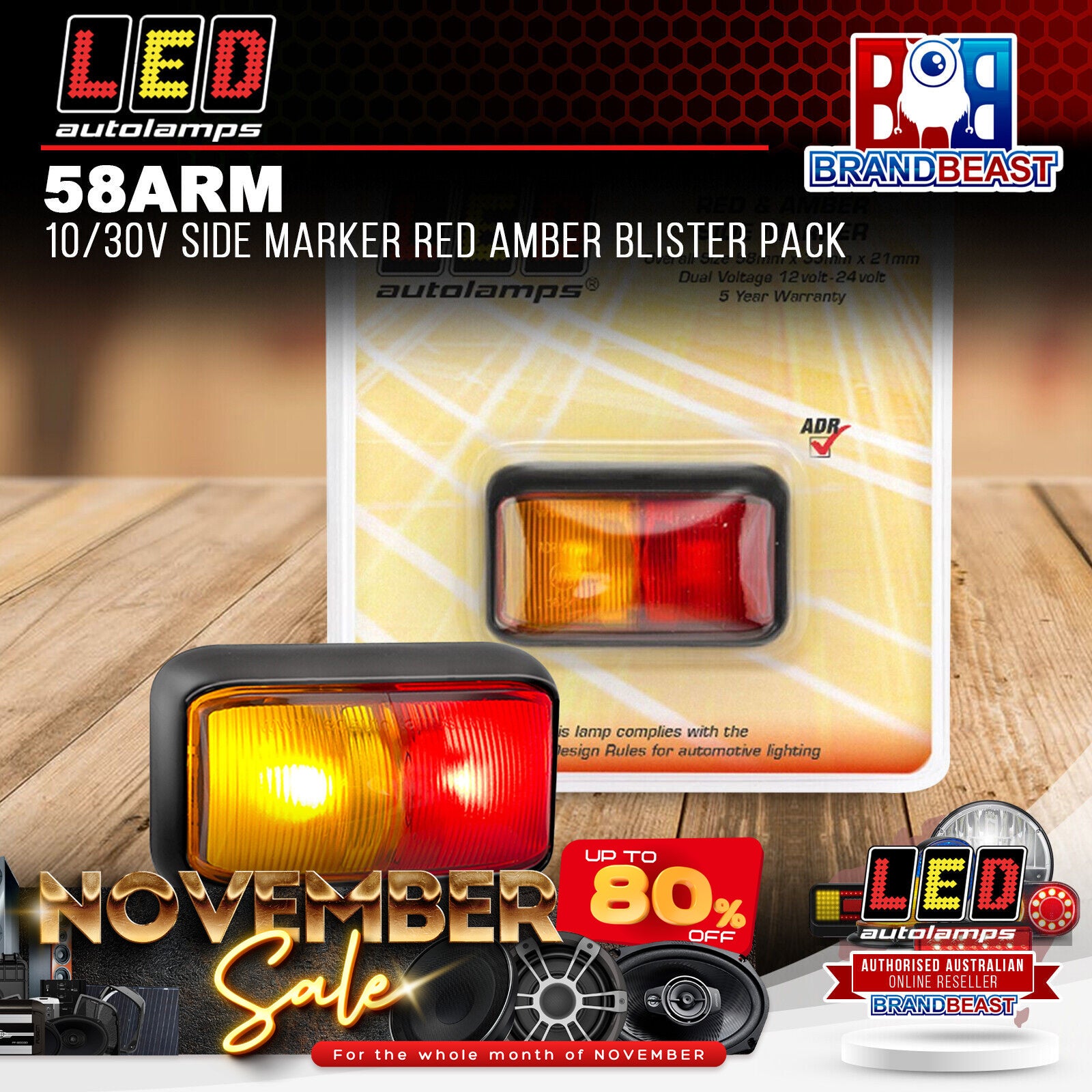

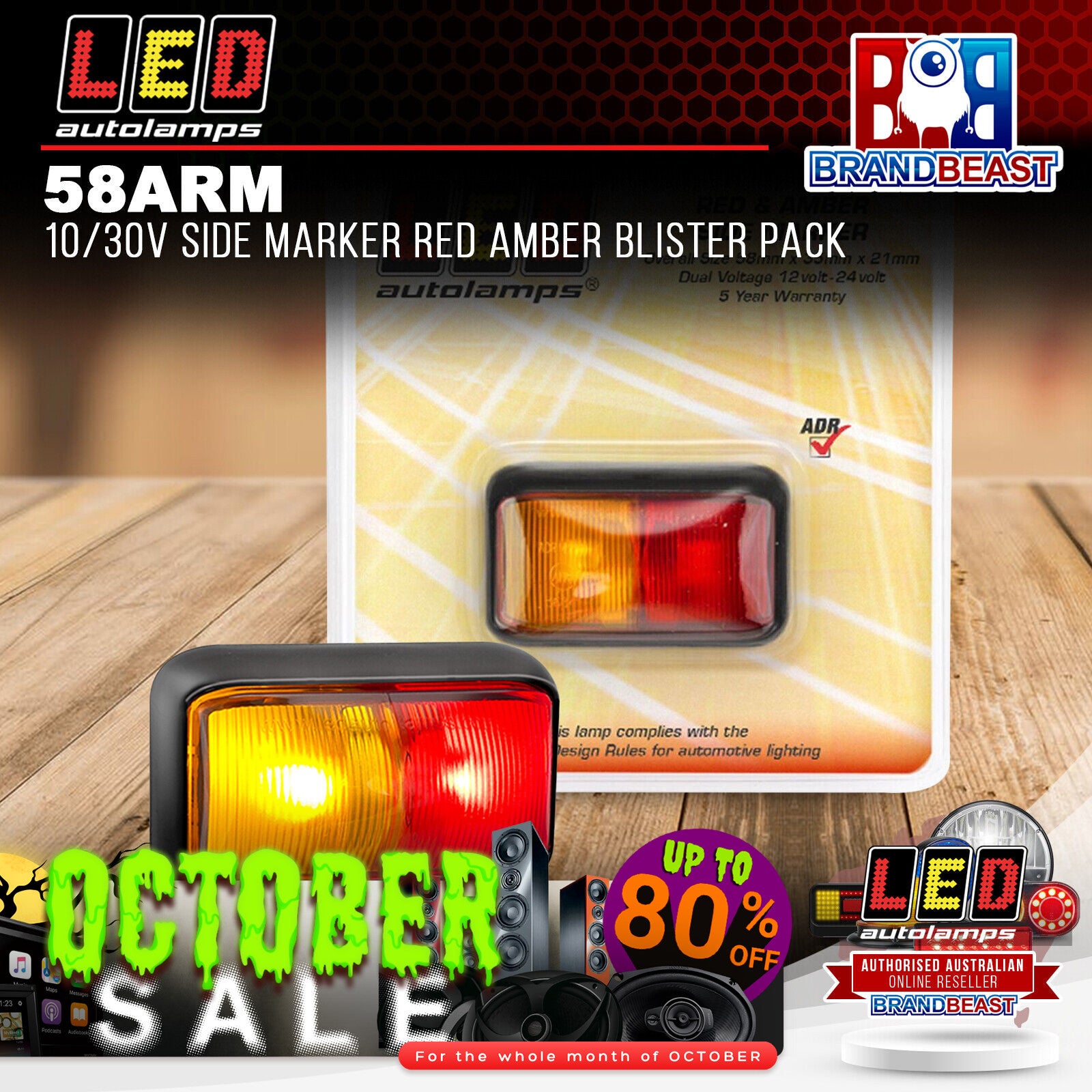

LED Autolamps 58ARM 12-24V Red and Amber LED Side Marker 58mm x 35mm x 21mm 28mm Mounting Centres Pre-Wired Clip-In Replaceable Lens Black Housing ADR Approved CTA036841 CRN 36841 ADR 45/01 IP67 Budget Range
The LED Autolamps 58ARM is a 12-24V red/amber LED side marker in a 58mm x 35mm x 21mm black housing. 28mm mounting centres, pre-wired, clip-in replaceable lens, surface mount. ADR approved (CTA036841), CRN 36841, ADR 45/01. IP67 waterproof, 0.1A at 13.8V. Budget range. Five-year warranty. Sold individually.
Product overview
The 58ARM is a budget range red/amber side marker in the 58 series, suited to trailers, trucks, and commercial vehicles requiring an ADR-compliant dual-colour side marker. The 58mm x 35mm x 21mm low-profile black housing with 28mm mounting centres and pre-wired connection suits standard side panel mounting positions. The clip-in replaceable lens allows lens replacement without replacing the full lamp. ADR approval CTA036841, CRN 36841, and ADR 45/01 confirm road-legal compliance in Australia. 12-24V compatible. IP67 rated.
Features and benefits
Red and amber dual-colour side marker output: ADR-compliant for side marker applications.
Clip-in replaceable lens: Lens can be replaced without replacing the full lamp body.
58mm x 35mm x 21mm low-profile housing.
28mm mounting centres.
Pre-wired connection.
Black housing.
Budget range.
ADR approved (CTA036841), CRN 36841, ADR 45/01: Compliant for road use in Australia.
IP67 fully waterproof and submersible.
0.1A current draw at 13.8V.
Surface mount.
12V and 24V compatible.
Five-year warranty.
Sold individually.
Technical specs
| Specification |
Detail |
| SKU |
58ARM |
| Brand |
LED Autolamps |
| Series |
58 |
| Type |
Side marker lamp |
| Light Type |
LED |
| LED Colours |
Red and amber |
| Housing Colour |
Black |
| Operating Voltage |
12V to 24V |
| Current Draw |
0.1A at 13.8V |
| Dimensions |
58mm x 35mm x 21mm |
| Mounting Centres |
28mm |
| Connection |
Pre-wired |
| Mount Type |
Surface mount |
| Lens |
Clip-in replaceable |
| Waterproof Rating |
IP67 |
| ADR Compliance |
CTA036841, ADR 45/01 |
| CRN |
36841 |
| Weight |
0.1kg |
| Manufactured In |
China (Taiwan) |
| Warranty |
Five years |
Frequently asked questions
Is the 58ARM ADR approved?
Yes. The 58ARM holds ADR approval CTA036841, CRN 36841, and ADR 45/01, confirming compliance for road use in Australia as a side marker lamp.
What is the difference between the 58ARM and the 58AM?
The 58ARM is a red/amber dual-colour side marker. The 58AM is an amber-only side direction indicator. Both share the same 58mm x 35mm x 21mm black housing, 28mm mounting centres, ADR CTA060030 (58AM) and CTA036841 (58ARM) approvals, clip-in lens, and IP67 rating.
What does the budget range designation mean for the 58ARM?
Budget range indicates the 58ARM is positioned as a cost-effective side marker option. It retains ADR approval, IP67 waterproofing, and a five-year warranty.
What voltage does the 58ARM operate on?
The 58ARM operates on 12V and 24V systems.
Is the 58ARM sold as a single unit or a pair?
Sold individually.
