Description
ADR 48/00-Compliant LED Licence Plate Lamp with Steel Housing 12V or 24V, IP67, Ultra-Low Draw
Product Overview

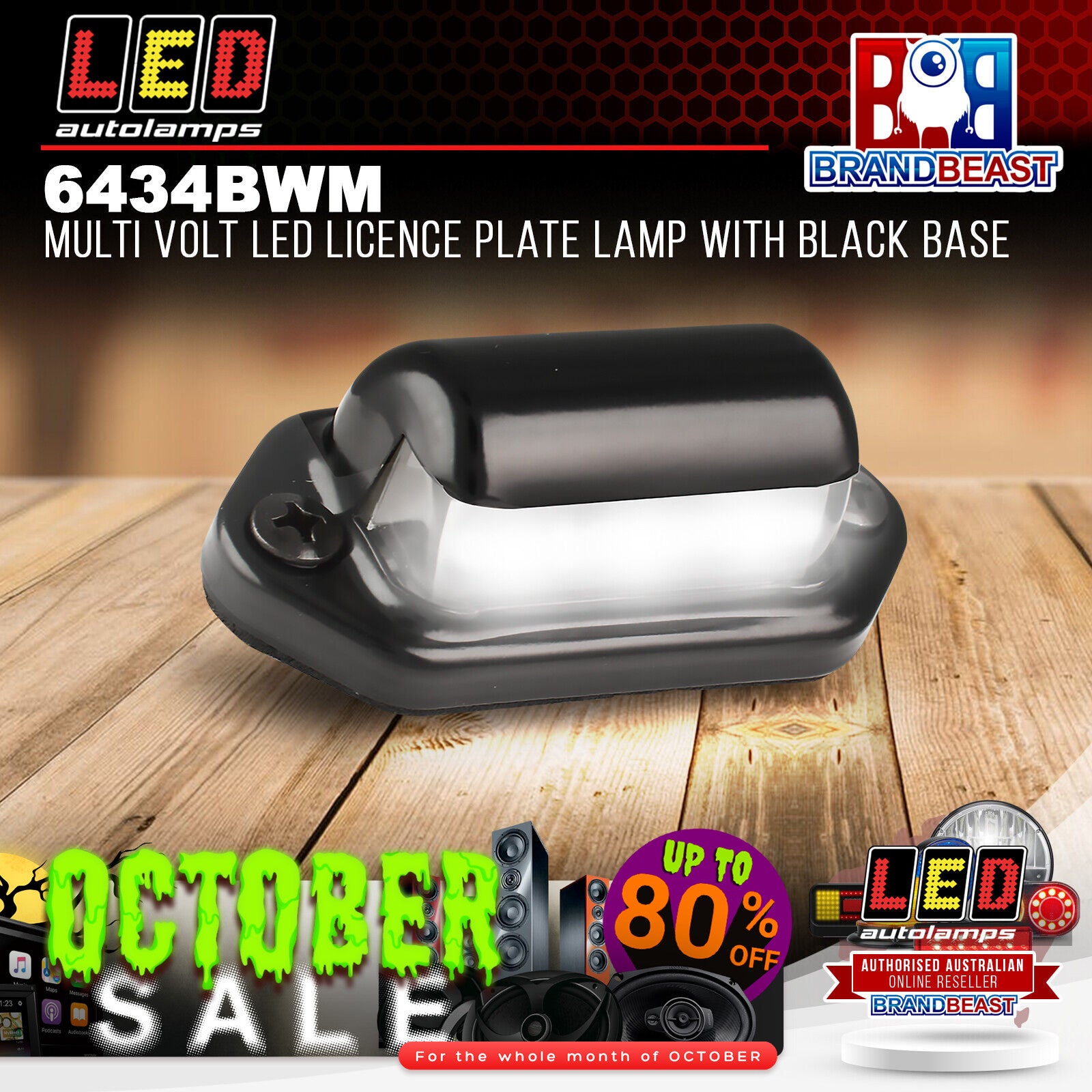

The LED Autolamps 6434BWM is a multi-voltage LED licence plate lamp with a black steel housing, rated IP67 and compliant with ADR 48/00 the Australian Design Rule governing devices for illuminating rear registration plates on motor vehicles and trailers. It operates across a 12–24V range, making it suitable for both light vehicle and heavy vehicle applications without any modification.
Measuring 65mm x 30mm x 24mm with a 65mm centre-to-centre mounting pitch and a 140mm pigtail cable, the 6434BWM draws just 0.02A at 13.8V an extremely low current load that keeps heat and battery impact to a minimum. Surface mount fitting and no-fuss cable connection make installation straightforward on trailers, caravans, horse floats, and commercial vehicles.
Features & Benefits
-
ADR 48/00 compliant — meets the Australian Design Rule for rear registration plate illumination; road-legal for use on trailers and vehicles in Australia when two units are fitted
-
Two required for ADR compliance — sold as a single unit; order two for a compliant installation
-
12–24V multi-volt operation — works across the full 12V to 24V range without modification, covering light trailers through to heavy commercial and agricultural vehicles
-
IP67 rated — fully sealed against dust and protected against temporary water immersion; handles boat ramp submersion, pressure washing, and harsh outdoor exposure
-
Steel housing with black base — robust construction that withstands the physical knocks and vibration typical of trailer and caravan use; black finish suits most standard trailer configurations
-
Ultra-low current draw — 0.02A @ 13.8V — negligible load on the trailer wiring circuit; contributes minimal heat and virtually no impact on vehicle electrical systems
-
65mm centre-to-centre mounting — compact footprint that suits standard licence plate lamp mounting positions on trailers and caravans
-
140mm pigtail cable — short cable stub for direct connection to the trailer wiring loom; no excess cable management required
-
5-year warranty — LED Autolamps' standard warranty on this lamp
Technical Specs
| Specification |
Detail |
| SKU |
6434BWM |
| Light type |
LED |
| Housing colour |
Black |
| Housing material |
Steel |
| Voltage range |
12–24V |
| Current draw |
0.02A @ 13.8V |
| IP rating |
IP67 |
| ADR compliance |
ADR 48/00 |
| Size |
65mm (L) x 30mm (W) x 24mm (H) |
| Mount centre to centre |
65mm |
| Mount type |
Surface mount |
| Cable (connector) |
0.14m (140mm) pigtail |
| Units per pack |
1 (each) |
| ADR compliant qty |
2 required per vehicle/trailer |
| Weight |
0.1kg |
| Warranty |
5 years |
Compatible With / Goes Well With
- Trailers, caravans, horse floats, and commercial vehicles requiring ADR 48/00 compliant licence plate illumination
- 12V and 24V electrical systems (multi-volt, no modification required)
- Suits standard trailer licence plate lamp mounting positions with 65mm centre-to-centre spacing
- Pairs with LED Autolamps trailer lamp and wiring harness range for a complete trailer lighting solution
Weight
0.1kg (per unit)
Frequently Asked Questions
Do I need to buy two of these?
Yes — ADR 48/00 requires two licence plate lamps for a compliant installation. The 6434BWM is sold individually, so add two to your order for a road-legal result.
What is ADR 48/00?
ADR 48/00 is the Australian Design Rule that sets the requirements for devices used to illuminate rear registration plates on motor vehicles and trailers. Compliance with this rule is required for road-legal trailer and vehicle builds in Australia.
Will it work on a 24V truck or heavy trailer?
Yes — the 6434BWM operates across 12–24V without any modification, making it suitable for both light trailers and 24V heavy vehicle applications.
What does IP67 mean for a licence plate lamp?
IP67 means the lamp is fully sealed against dust ingress and protected against temporary submersion in water up to 1 metre deep — important for trailers that encounter boat ramps, flooding, or high-pressure washing.
What cable is included for wiring?
The lamp includes a 140mm (0.14m) pigtail cable for direct connection to the trailer wiring loom. No additional cable extensions are included.
