Description

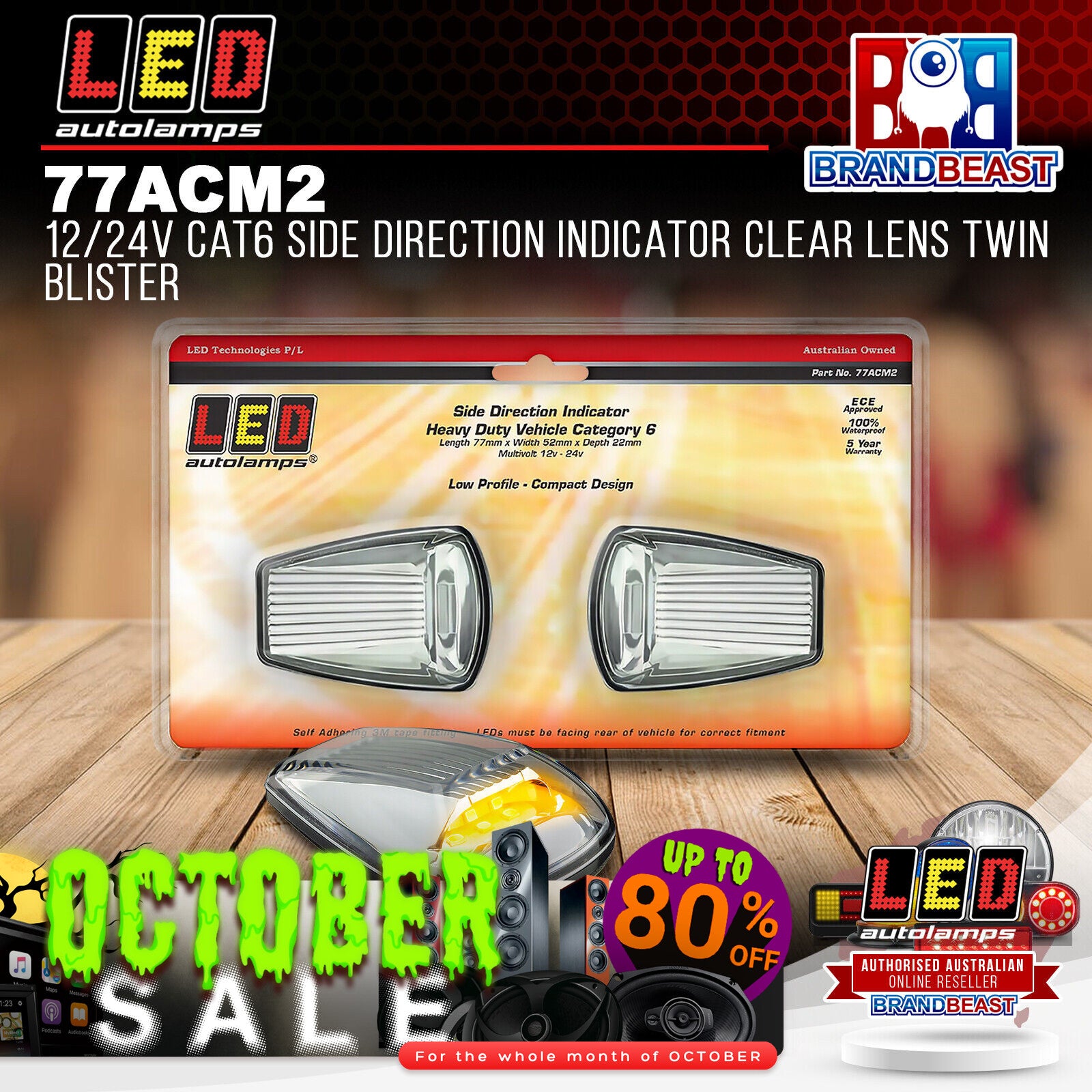

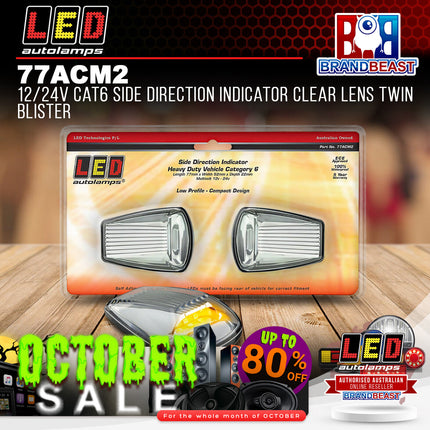

LED Autolamps 77ACM2 12-24V Cat6 Amber LED Side Direction Indicator Clear Lens Black Housing 3 LEDs 77mm x 52mm x 22mm 3M Tape and Plug ECE Approved CTA060137 IP67 Twin Blister Pack
The LED Autolamps 77ACM2 is a 12-24V Cat6 amber LED side direction indicator with clear lens and black housing. 3 LEDs, 77mm x 52mm x 22mm, 3M tape and plug fitting. ECE approved (CTA060137), ECE E96R01/2922383*00. IP67 waterproof. Category 6 approved. Suitable for vehicle GVM upgrade. Five-year warranty. Sold as a twin blister pack.
Product overview
The 77ACM2 is the twin blister pack version of the 77ACM Cat6 side direction indicator, providing confirmed full spec data including ECE CTA060137 and ECE E96R01/2922383*00 compliance, 3-LED output, and current draw of 0.12A at 13.8V and 0.08A at 28V. Category 6 approved for supplementary side direction indicator applications. Suitable for GVM upgrade builds where additional side markers are required. Clear lens with amber LED output when energised. 3M tape and plug for tool-free installation. IP67 waterproof. 9-32V compatible.
Features and benefits
Category 6 approved: Meets ECE requirements for supplementary side direction indicator use.
Suitable for vehicle GVM upgrade applications.
3 amber LEDs with clear lens.
Black housing.
77mm x 52mm x 22mm low-profile compact design.
Easy fit with 3M tape and plug: Tool-free installation.
ECE approved (CTA060137), ECE E96R01/2922383*00.
IP67 fully waterproof and submersible.
9-32V: Compatible with 12V and 24V vehicle electrical systems.
Twin blister pack: Two lamps per pack for left and right installations.
Five-year warranty.
Technical specs
| Specification |
Detail |
| SKU |
77ACM2 |
| Brand |
LED Autolamps |
| Series |
77 |
| Type |
Cat6 side direction indicator |
| LED Count |
3 |
| LED Colour |
Amber |
| Lens |
Clear |
| Housing Colour |
Black |
| Operating Voltage |
9V to 32V |
| Current Draw |
0.12A at 13.8V / 0.08A at 28V |
| Dimensions |
77mm x 52mm x 22mm |
| Fitting |
3M tape and plug |
| Waterproof Rating |
IP67 |
| ECE Compliance |
CTA060137, ECE E96R01/2922383*00 |
| Sold As |
Twin blister pack |
| Weight |
0.2kg |
| Manufactured In |
China (Taiwan) |
| Warranty |
Five years |
Frequently asked questions
Is the 77ACM2 ECE approved?
Yes. The 77ACM2 holds ECE approval CTA060137 and ECE E96R01/2922383*00, confirming compliance for use as a Category 6 side direction indicator.
Is the 77ACM2 suitable for GVM upgrade builds?
Yes. The 77ACM2 is confirmed suitable for vehicle GVM upgrade applications where additional side direction indicators are required.
What is the difference between the 77ACM2 and the 77ACM?
The 77ACM2 is sold as a twin blister pack and carries confirmed ECE CTA060137 compliance, 3-LED count, and current draw data. The 77ACM is sold individually. Both share the same 77mm x 52mm x 22mm amber LED, clear lens, black housing, 3M tape and plug fitting, and IP67 rating.
How is the 77ACM2 installed?
The 77ACM2 uses 3M tape for surface adhesion and a plug connector for wiring, allowing tool-free installation.
What voltage does the 77ACM2 operate on?
The 77ACM2 operates on 9V to 32V, compatible with both 12V and 24V vehicle electrical systems.
