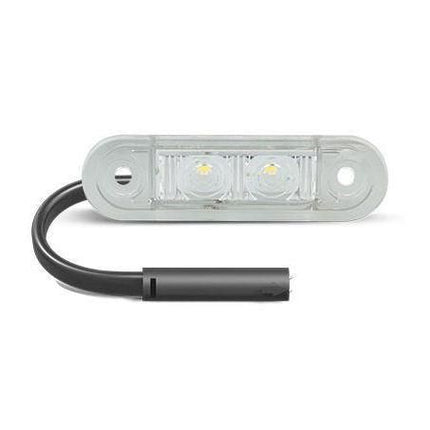

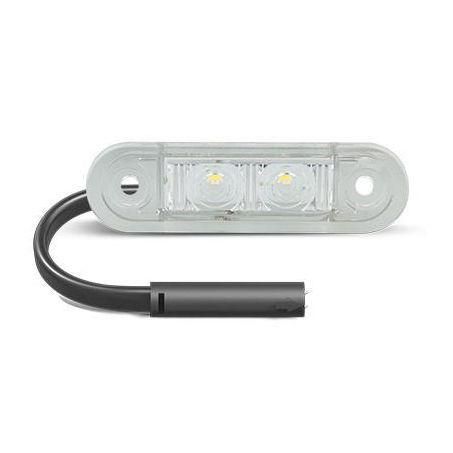

LED Autolamps 7922WMCSB 12-24V White LED Marker and Licence Plate Lamp Recessed Fit 79mm x 22mm x 3mm Ultra-Low Profile ECE Approved CTA060117 IP67 CSB Connector
The LED Autolamps 7922WMCSB is a 12-24V white LED marker and licence plate lamp with recessed fitting and CSB connector. 79mm x 22mm x 3mm ultra-low 3mm profile. ECE approved (CTA060117). IP67 waterproof. Five-year warranty. Sold individually.
Product overview
The 7922WMCSB is the cable system (CSB) version of the 7922 series white recessed marker and licence plate lamp, fitted with a CSB connector for integration into the LED Autolamps harness system. Dual function as a white front outline marker and licence plate lamp in the same ultra-low 3mm profile 79mm x 22mm x 3mm housing. ECE approval CTA060117 confirms compliance with international road approval standards. IP67 waterproof. 12-24V compatible. Sold individually in polybag.
Features and benefits
White LED marker and licence plate lamp: Dual-function in a single unit.
Recessed fitting.
CSB connector: For integration into the LED Autolamps harness system.
Ultra-low 3mm profile depth: 79mm x 22mm x 3mm.
ECE approved (CTA060117): Road approved for use in Australia.
IP67 fully waterproof and submersible.
12V and 24V compatible.
Five-year warranty.
Sold individually.
Technical specs
| Specification |
Detail |
| SKU |
7922WMCSB |
| Brand |
LED Autolamps |
| Series |
7922 |
| Type |
White marker and licence plate lamp |
| LED Colour |
White |
| Operating Voltage |
12V to 24V |
| Dimensions |
79mm x 22mm x 3mm |
| Profile Depth |
3mm |
| Mount Type |
Recessed fitting |
| Connector |
CSB |
| Waterproof Rating |
IP67 |
| ECE Compliance |
CTA060117 |
| Manufactured In |
China (Taiwan) |
| Warranty |
Five years |
Frequently asked questions
Is the 7922WMCSB ECE approved?
Yes. The 7922WMCSB holds ECE approval CTA060117, confirming it is road approved for use as a white marker and licence plate lamp in Australia.
What is the CSB connector on the 7922WMCSB?
The CSB connector allows the 7922WMCSB to integrate directly into the LED Autolamps cable harness system for plug-and-play installation.
What functions does the 7922WMCSB cover?
The 7922WMCSB serves as both a white front outline marker and a licence plate lamp in a single recessed-fit unit.
What is the difference between the 7922WMCSB and the 7922WM2?
The 7922WMCSB is fitted with a CSB connector for harness system integration, is sold individually in polybag, and carries ECE CTA060117 approval for marker and licence plate use. The 7922WM2 is sold as a twin blister pack. Both share the same 7922 series 3mm ultra-low profile recessed format.
What voltage does the 7922WMCSB operate on?
The 7922WMCSB operates on 12V and 24V systems.
