Description
ADR Approved 12V Stop/Tail/Indicator 3-Lamp Assembly 108 LEDs, Individual Lens Replacements, IP67
Product Overview

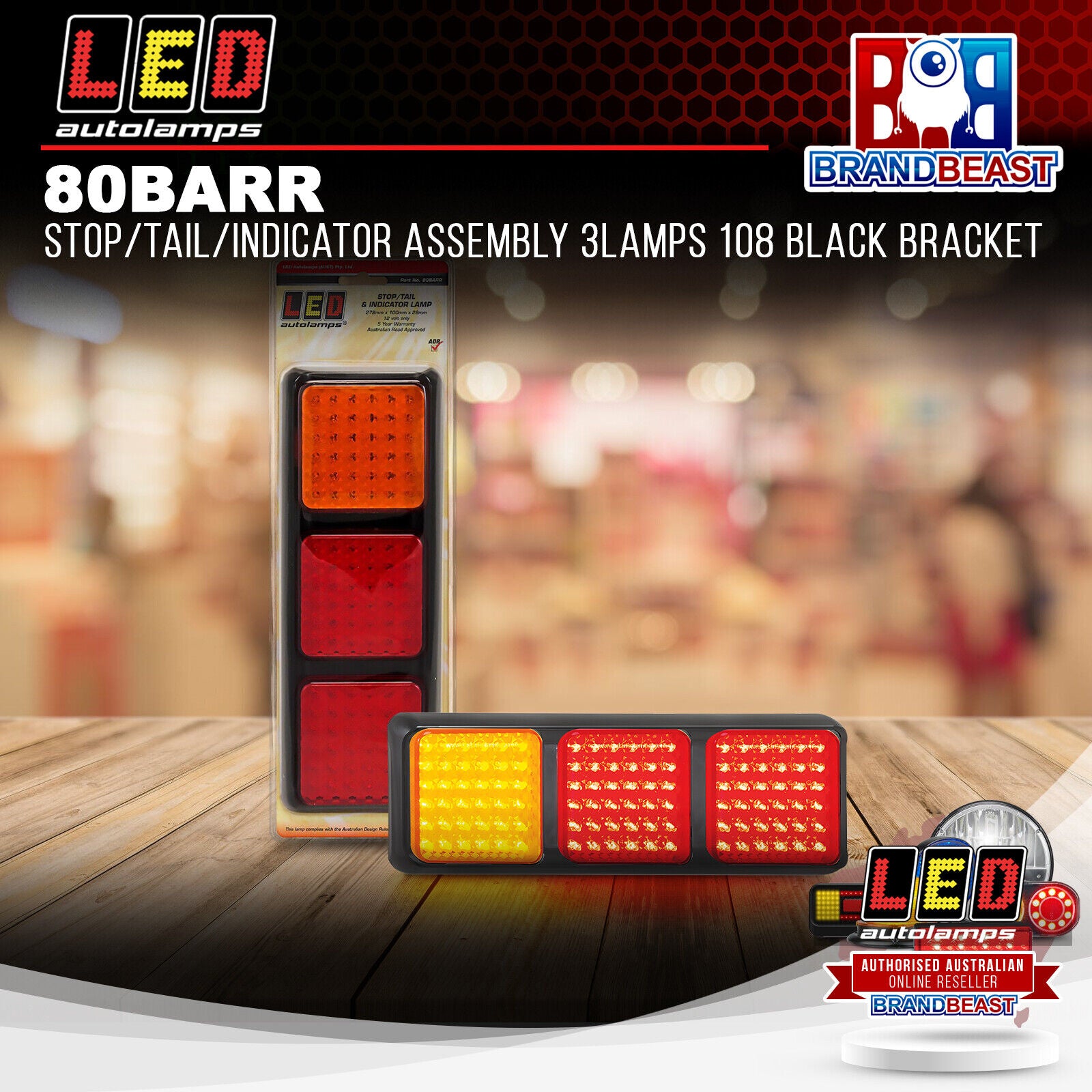

The LED Autolamps 80BARR is a 12V three-lamp stop, tail, and indicator assembly with 108 LEDs in a black bracket, with individual lens replacements per lamp section. Carrying ADR 49/00 for stop/tail and ADR 6/00 Cat 2A for the indicator, it is the 12V-only variant in the 80 series suited to light vehicle and trailer applications running 12V systems.
Drawing 0.33A stop, 0.06A tail, and 0.29A indicator at 13.8V. Rated IP67 and backed by a 5-year warranty.
Features & Benefits
-
3-lamp assembly with 108 LEDs — three individual lamp sections in a single bracket assembly for a high-density rear lighting installation
-
Individual lens replacements — each lens section replaces independently, reducing repair costs
-
ADR approved — stop/tail ADR 49/00 and indicator ADR 6/00 Cat 2A
-
Black bracket assembly — professional finish for trailer and truck rear panels
-
IP67 rated — fully sealed against dust and water immersion
-
12V only — designed for 12V trailer and vehicle electrical systems
-
5-year warranty — backed by LED Autolamps' full warranty programme
Technical Specs
| Specification |
Detail |
| SKU |
80BARR |
| Lamp Type |
Stop / Tail / Indicator |
| Lamp Count |
3 |
| LED Quantity |
108 |
| Voltage |
12V |
| Stop Current Draw |
0.33A @ 13.8V |
| Tail Current Draw |
0.06A @ 13.8V |
| Indicator Current Draw |
0.29A @ 13.8V |
| Lens |
Individual replacements |
| Housing Colour |
Black |
| Mounting |
Surface mount |
| Connector |
Pre-wired |
| Protection Rating |
IP67 |
| Stop/Tail Compliance |
ADR 49/00 |
| Indicator Compliance |
ADR 6/00 Cat 2A |
| Warranty |
5 years |
Compatible With / Goes Well With
- Trailers and light vehicles running 12V systems requiring a multi-lamp rear combination assembly
- LED Autolamps 80BARM (12/24V dual voltage — same 188mm single-bracket format)
- LED Autolamps 80BARRM (12/24V, 180 LEDs, wider 278mm format)
- LED Autolamps wiring harnesses and trailer lighting accessories
Frequently Asked Questions
Is the 80BARR approved for road use in Australia?
Yes. The 80BARR is ADR approved under 49/00 for stop/tail and ADR 6/00 Cat 2A for the indicator, meeting Australian Design Rules requirements for legal on-road use.
How does the 80BARR differ from the 80BARM?
The 80BARR is a 12V-only 3-lamp assembly with 108 LEDs, while the 80BARM is a single-lamp 12/24V unit with 72 LEDs. The 80BARR suits 12V applications requiring a larger multi-lamp assembly; the 80BARM suits 12V or 24V single-lamp installations.
What does the 3-lamp assembly mean?
The 80BARR combines three individual lamp units in a single black bracket, each with its own replaceable lens — providing a larger combined rear lighting surface than a single lamp.
What is the IP rating on the 80BARR?
The 80BARR is rated IP67, meaning it is fully sealed against dust and capable of withstanding water immersion.
What warranty does the 80BARR carry?
The 80BARR is backed by a 5-year warranty from LED Autolamps.
