Description

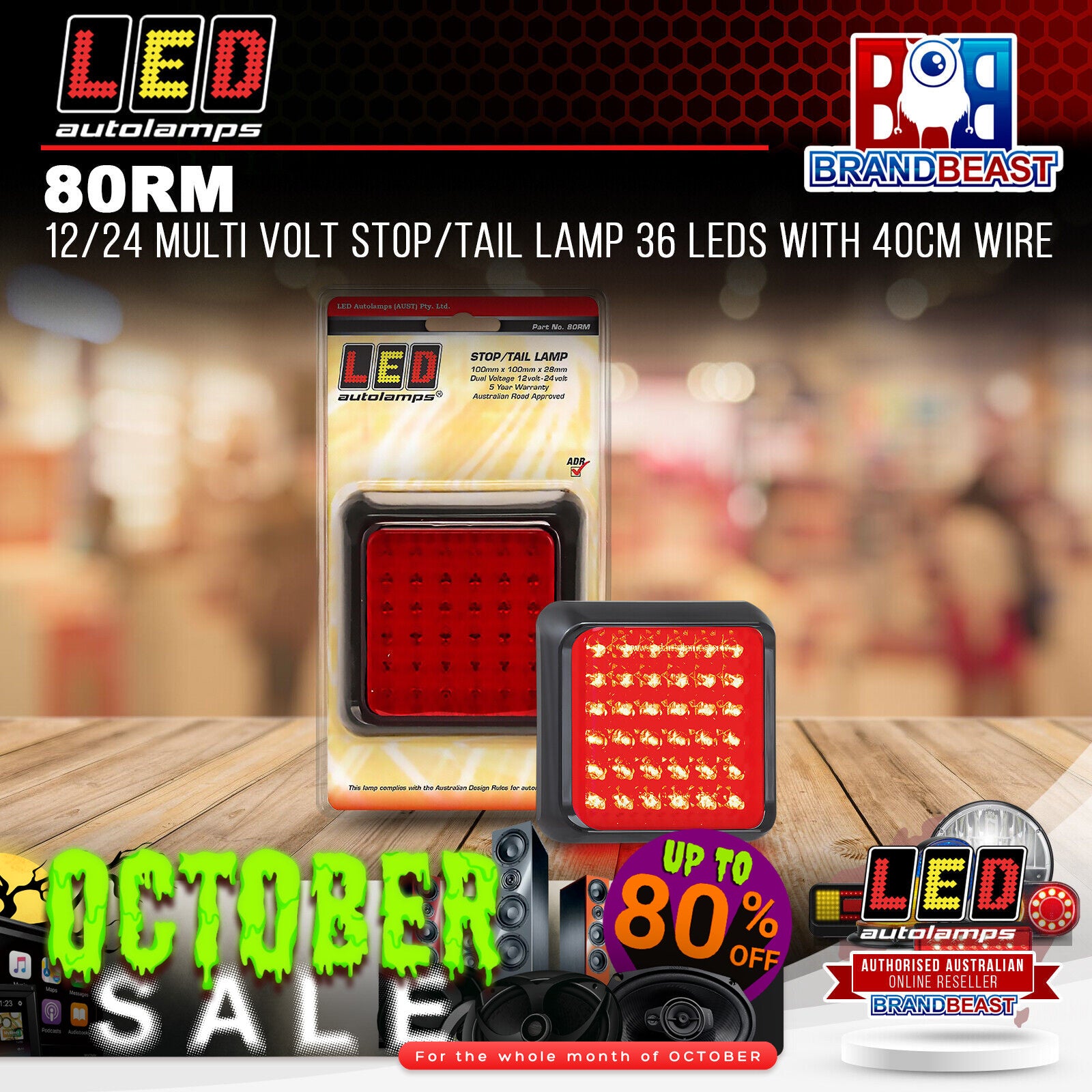

ADR Approved 36 LED Stop/Tail Lamp Clip-In Lens, 100x100mm, 40cm Wire, IP67
Product Overview
The LED Autolamps 80RM is a 12/24V stop/tail lamp with 36 LEDs and a clip-in replaceable lens, measuring 100mm x 100mm x 28mm in a black housing with a 60mm centre-to-centre mount and 40cm pre-wired cable. Certified under CRN33059 matching the stop/tail compliance reference across the 80 series combination lamps it is the natural standalone stop/tail companion to the 80WM reverse lamp for a complete individually-mounted 80 series rear lighting set.
Drawing 0.33A stop and 0.06A tail at 13.8V. Rated IP67 and backed by a 5-year warranty.
Features & Benefits
-
36 LEDs — delivers strong, consistent stop/tail output across the 100mm square lamp face
-
Clip-in replaceable lens — lens swaps independently without removing the full housing from the panel
-
ADR approved — certified under CRN33059 for legal on-road use as a stop/tail lamp
-
40cm pre-wired cable — generous lead for flexible installation routing
-
60mm centre-to-centre mount — matches the 80WM for a uniform installation across the 80 series
-
IP67 rated — fully sealed against dust and water immersion
-
12/24V dual voltage — compatible with both 12V light vehicles and 24V heavy transport
-
5-year warranty — backed by LED Autolamps' full warranty programme
Technical Specs
| Specification |
Detail |
| SKU |
80RM |
| Lamp Type |
Stop / Tail |
| LED Quantity |
36 |
| Housing Colour |
Black |
| Voltage Range |
12V / 24V |
| Dimensions |
100mm x 100mm x 28mm |
| Mount Centre-to-Centre |
60mm |
| Stop Current Draw |
0.33A @ 13.8V |
| Tail Current Draw |
0.06A @ 13.8V |
| Cable Length |
400mm |
| Lens |
Clip-in replaceable |
| Mounting |
Surface mount |
| Connector |
Pre-wired |
| Protection Rating |
IP67 |
| Compliance |
ADR — CRN33059 |
| Warranty |
5 years |
Compatible With / Goes Well With
- Trailers, trucks, and commercial vehicles requiring a standalone stop/tail lamp
- 12V light vehicles and 24V heavy transport applications
- LED Autolamps 80WM reverse lamp (same 100mm x 100mm form factor, 60mm mount — natural pair)
- LED Autolamps 80BARM and 80BARRM (same CRN33059 stop/tail certification)
- LED Autolamps wiring harnesses and trailer lighting accessories
Frequently Asked Questions
Is the 80RM approved for road use in Australia?
Yes. The 80RM is ADR approved under CRN33059, meeting Australian Design Rules requirements for legal on-road use as a stop/tail lamp.
How does the 80RM pair with the 80WM?
Both the 80RM and 80WM share the same 100mm x 100mm x 28mm form factor and 60mm centre-to-centre mount — making them a natural matched pair for stop/tail and reverse functions on the same installation.
What is the current draw of the 80RM?
Stop draws 0.33A and tail draws 0.06A at 13.8V — consistent with the stop/tail current draw across the full 80 series combination lamps.
What does the clip-in lens mean for maintenance?
The lens clips out independently, allowing replacement without removing the full lamp from the mounting surface — the same serviceable lens design used throughout the 80 series.
What warranty does the 80RM carry?
The 80RM is backed by a 5-year warranty from LED Autolamps.
