Description
ADR Approved 25 White LED Reverse Lamp Clip-In Lens, 100x100mm, 0.31A, 40cm Wire
Product Overview

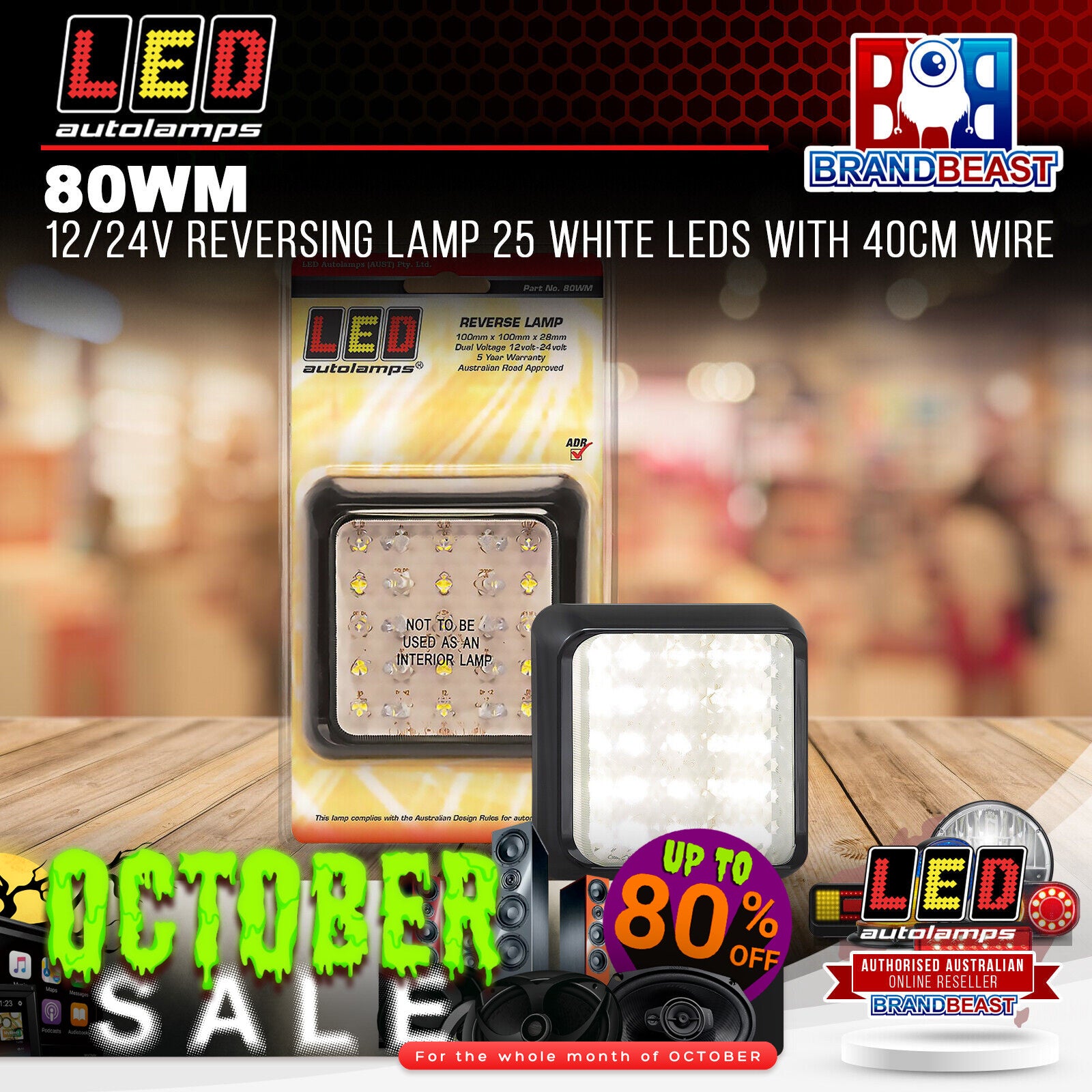

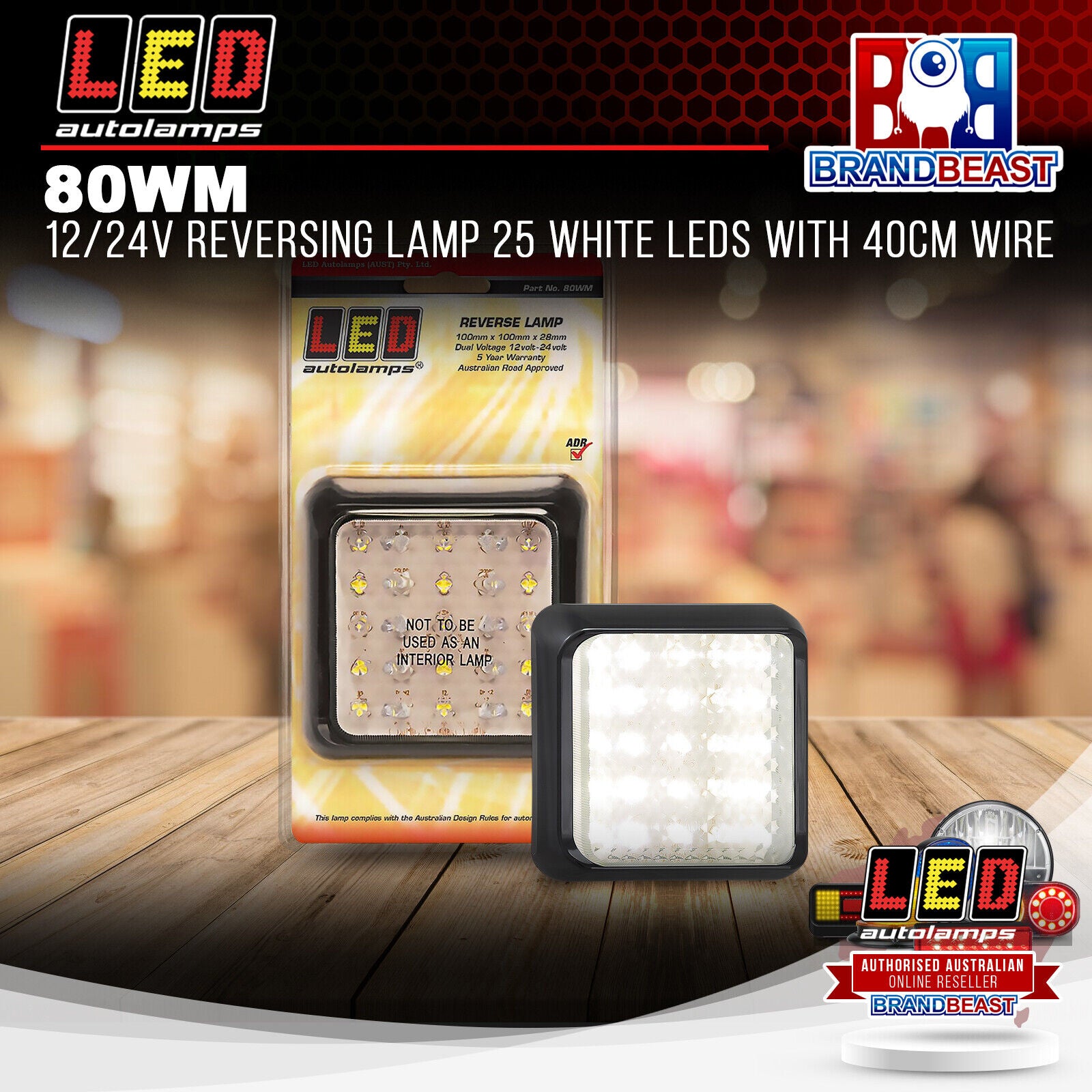

The LED Autolamps 80WM is a 12/24V reverse lamp with 25 white LEDs and a clip-in replaceable lens, measuring 100mm x 100mm x 28mm in a black housing with a 60mm centre-to-centre mount. Supplied with a 40cm pre-wired cable, it is approved under CRN35797 the same reverse compliance reference as the 80BARWM making it a natural standalone reverse lamp companion to the 80 series combination lamps.
Drawing 0.31A at 13.8V, IP67 rated, and backed by a 5-year warranty.
Features & Benefits
-
25 white LEDs — bright, consistent reverse output across the 100mm square lamp face
-
Clip-in replaceable lens — lens swaps independently without removing the full housing from the panel
-
ADR approved — certified under CRN35797 for legal on-road use as a reverse lamp
-
40cm pre-wired cable — generous lead for flexible installation routing
-
60mm centre-to-centre mount — confirm against your panel before installation
-
IP67 rated — fully sealed against dust and water immersion
-
12/24V dual voltage — compatible with both 12V light vehicles and 24V heavy transport
-
5-year warranty — backed by LED Autolamps' full warranty programme
Technical Specs
| Specification |
Detail |
| SKU |
80WM |
| Lamp Type |
Reverse |
| LED Quantity |
25 |
| LED Colour |
White |
| Housing Colour |
Black |
| Voltage Range |
12V / 24V |
| Dimensions |
100mm x 100mm x 28mm |
| Mount Centre-to-Centre |
60mm |
| Current Draw |
0.31A @ 13.8V |
| Cable Length |
400mm |
| Lens |
Clip-in replaceable |
| Mounting |
Surface mount |
| Connector |
Pre-wired |
| Protection Rating |
IP67 |
| Compliance |
ADR — CRN35797 |
| Packaging |
Blister pack |
| Warranty |
5 years |
Compatible With / Goes Well With
- Trailers, trucks, and commercial vehicles requiring a standalone reverse lamp
- 12V light vehicles and 24V heavy transport applications
- LED Autolamps 80BARRM stop/tail/indicator lamp (same 80 series — add 80WM for reverse)
- LED Autolamps 80BARWM (same CRN35797 reverse certification — four-function version)
- LED Autolamps wiring harnesses and trailer lighting accessories
Frequently Asked Questions
Is the 80WM approved for road use in Australia?
Yes. The 80WM is ADR approved under CRN35797, meeting Australian Design Rules requirements for legal on-road use as a reverse lamp.
How does the 80WM pair with the 80BARRM?
The 80BARRM covers stop, tail, and indicator. Adding the 80WM provides the reverse function separately — sharing the same CRN35797 reverse approval as the 80BARWM — for a complete 80 series rear lighting system.
What does the clip-in lens mean for maintenance?
The lens clips out independently, allowing replacement without removing the full lamp from the mounting surface — consistent with the individual lens replacement design across the 80 series.
What is the current draw of the 80WM?
The 80WM draws 0.31A at 13.8V — the same reverse current as the 80BARWM, confirming consistent LED specification across the 80 series.
What warranty does the 80WM carry?
The 80WM is backed by a 5-year warranty from LED Autolamps.
