Description
ADR-Approved Amber Side Marker with Brushed Stainless Steel Bezel Low Profile Truck Style for Trailers and Commercial Vehicles
Product Overview

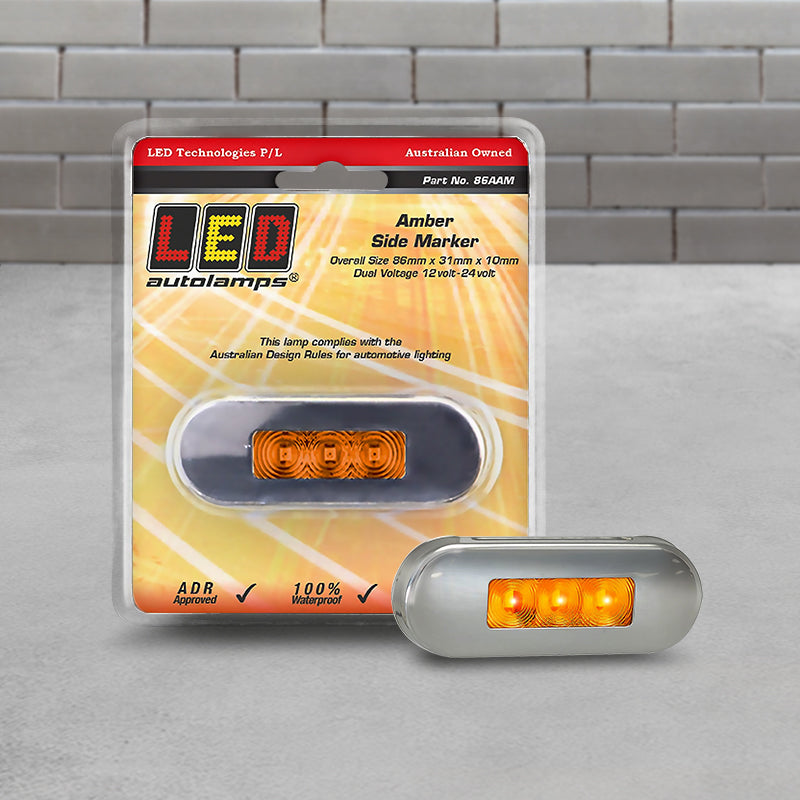

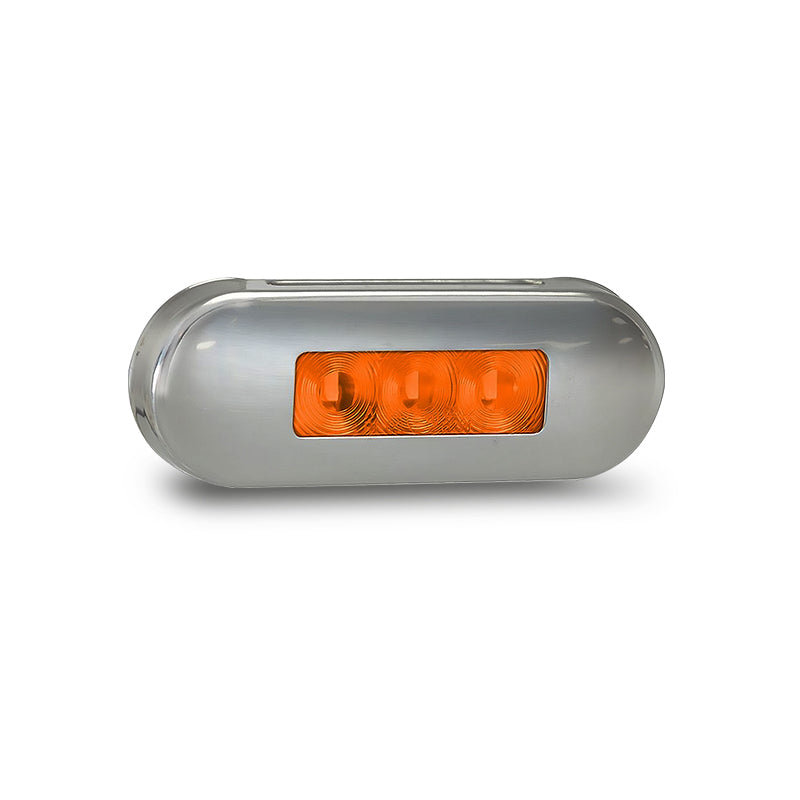

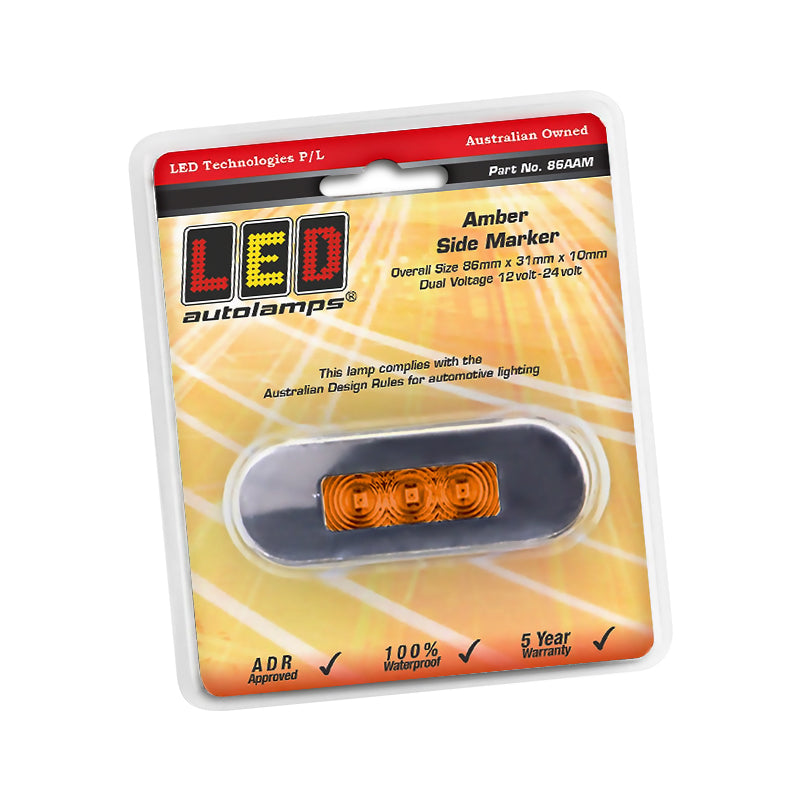

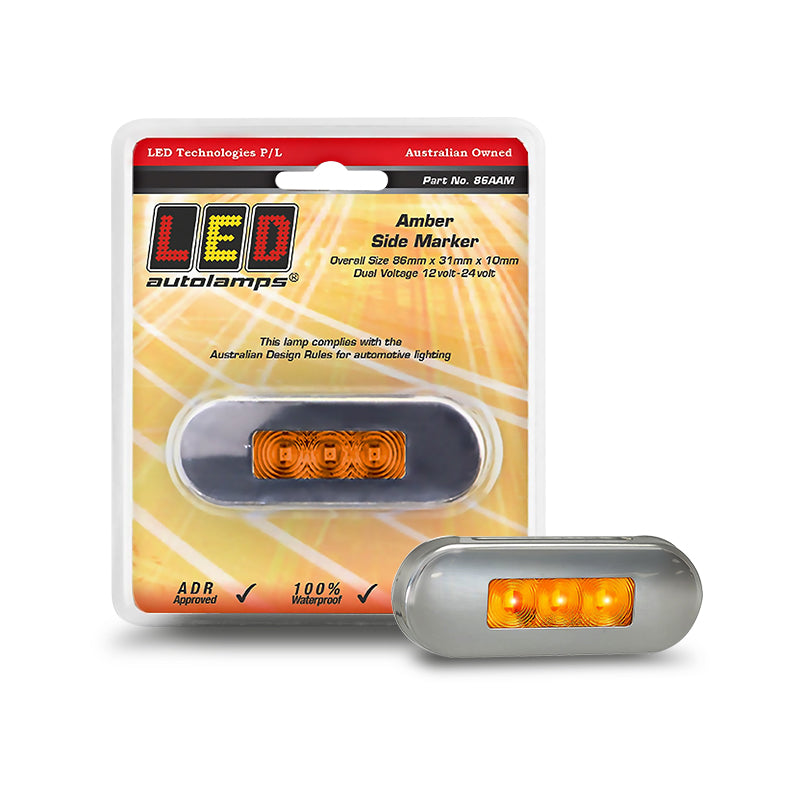

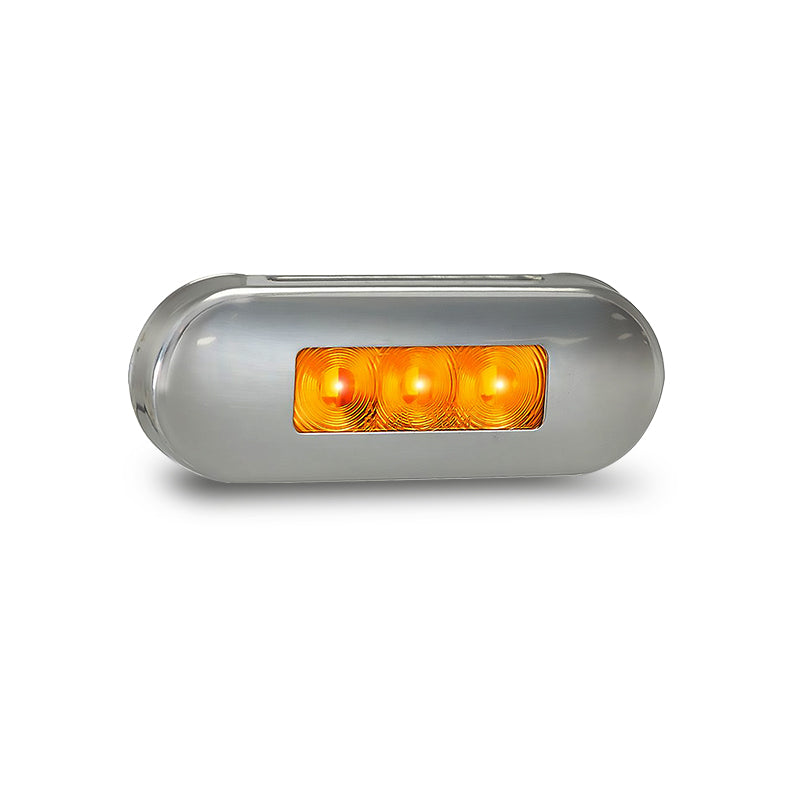

The LED Autolamps 86AAM is a low-profile amber side marker lamp featuring an amber lens with amber LEDs and a brushed stainless steel bezel, finished in the popular truck-style format widely used on trailers, caravans, horse floats, and commercial vehicles across Australia. Measuring 86mm x 31mm x 10mm, its slim 10mm profile sits flush against body panels and trailer frames without protruding or snagging.
ADR approved and IP67 rated, the 86AAM meets the requirements for road-legal side marker use and handles the full exposure of outdoor and towing conditions dust, high-pressure wash, road spray, and temporary water immersion. The 12–24V operating range covers both light vehicle and heavy commercial applications without modification, and the brushed stainless steel bezel provides a corrosion-resistant, premium appearance that holds up over long service life. Backed by a 5-year warranty.
Features & Benefits
-
ADR approved — road-legal for use as a side marker lamp on Australian trailers and vehicles; meets the applicable Australian Design Rule for side marker lighting
-
Amber lens with amber LEDs — correct colour designation for side marker lamps; high-visibility amber output for approaching vehicles from the side
-
Brushed stainless steel bezel — corrosion-resistant, premium-finish surround that maintains its appearance in outdoor, coastal, and high-humidity environments common to Australian trailer and commercial vehicle use
-
Popular truck style — the recognisable rectangular format used widely on heavy vehicles, semis, and commercial trailers; adds a professional finish to trailer and caravan builds
-
Low profile 10mm depth — slim enough to mount on most trailer body panels and chassis rails without significant protrusion; 86mm x 31mm footprint suits standard side marker positions
-
IP67 rated — 100% waterproof — fully sealed against dust and protected against temporary water immersion; suitable for boat trailers, agricultural equipment, and all-weather towing
-
12–24V multi-volt — operates on both 12V and 24V systems without modification; suits light trailers through to heavy commercial vehicles
-
5-year warranty — LED Autolamps' standard warranty applied to this lamp
Technical Specs
| Specification |
Detail |
| SKU |
86AAM |
| Lamp type |
Side marker |
| Lens colour |
Amber |
| LED colour |
Amber |
| Bezel material |
Brushed stainless steel |
| ADR compliance |
Yes |
| IP rating |
IP67 |
| Voltage range |
12–24V |
| Size |
86mm (L) x 31mm (W) x 10mm (D) |
| Profile |
Low profile |
| Wattage / current draw |
Not specified — confirm with supplier |
| LED count |
Not specified — confirm with supplier |
| Mounting type |
Not specified — confirm with supplier |
| Connector / wiring |
Not specified — confirm with supplier |
| Warranty |
5 years |
Compatible With / Goes Well With
- Trailers, caravans, horse floats, semi-trailers, and commercial vehicles requiring ADR-compliant amber side marker lamps
- 12V and 24V electrical systems (multi-volt, no modification required)
- Boat trailers and marine-adjacent applications requiring IP67-rated markers
- Pairs with LED Autolamps trailer lamp, combination lamp, and wiring harness range for a complete trailer lighting build
Weight
Not specified
Frequently Asked Questions
Is the lens amber or clear on this lamp?
The lens is amber. Despite one line in the features section stating "clear lens", both the product title and specification description confirm "Amber Lens Coloured LEDs", consistent with the SKU designation 86AAM. Contact LED Autolamps directly if a clear lens version is required.
What vehicles and applications is this side marker suited to?
The 86AAM suits trailers, caravans, horse floats, semi-trailers, and commercial vehicles in the popular truck-style side marker format. ADR approval confirms it is road-legal for side marker use on Australian-registered trailers and vehicles.
How is this lamp mounted and what wiring connector does it use?
Mounting type and wiring connector details are not specified in the supplier data. Confirm installation requirements with LED Autolamps or contact F.A.E. before purchasing to ensure it suits your trailer or vehicle setup.
Why does the stainless steel bezel matter on a trailer marker?
Brushed stainless steel is significantly more corrosion-resistant than chrome-plated or painted bezels, which can rust, peel, or oxidise over time — especially on boat trailers, coastal caravans, and commercial vehicles exposed to salt, moisture, and UV. The stainless bezel maintains its appearance and structural integrity over a longer service life.
What current or wattage does the 86AAM draw?
Wattage and current draw figures are not included in the supplier data. If power consumption is critical for your wiring or load calculation, contact LED Autolamps for the specified draw at 12V and 24V.
