Description
Amber LED Side Marker with Inbuilt Reflector 3M Tape, Low Profile, ADR/ECE, IP67.
Product Overview

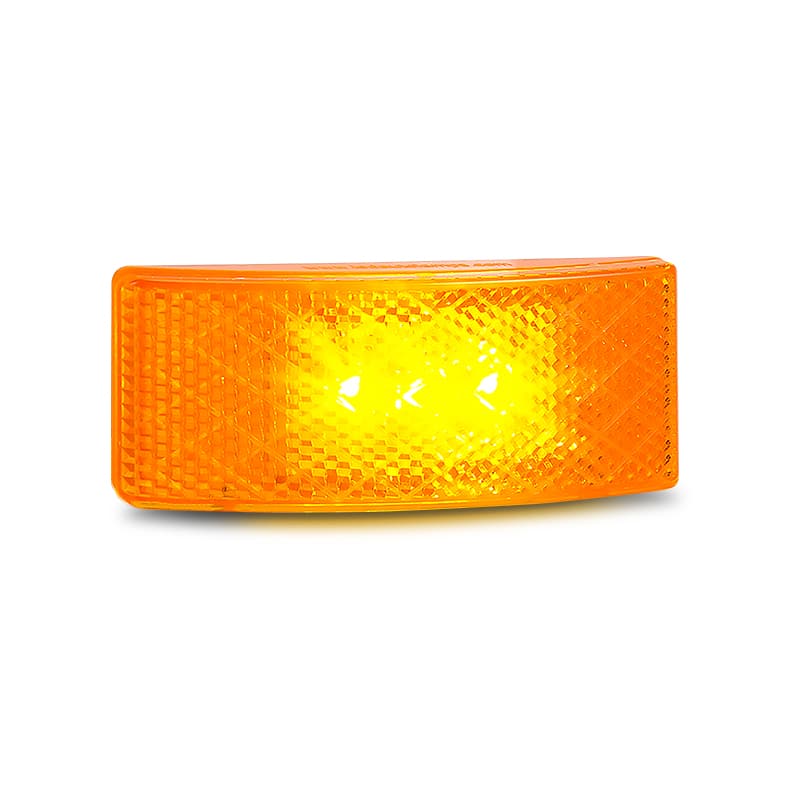

The LED Autolamps EU38AMHDB is an amber LED side marker lamp with an integrated reflex reflector from the EU38 series the standard blister pack version of the EU38 amber marker range. Measuring just 100mm x 38mm x 13mm with an ultra-slim 13mm profile, the EU38AMHDB provides ADR and ECE compliant amber side marker and reflector compliance in a single compact unit that mounts nearly flush to the mounting surface.
The 3M adhesive tape fitting system makes installation fast and clean the lamp adheres directly to the trailer frame or body panel without brackets or multiple drill holes. The curved diamond pattern polycarbonate lens houses the amber LEDs with an integrated reflex reflector for combined active and passive side marker compliance. Compatible with both 12V and 24V systems, IP67 rated, and backed by LED Autolamps' 5-year warranty. Supplied as a single unit.
Key Specifications
- Function: Amber side marker with integrated reflex reflector
- LED colour: Amber
- Lens: Polycarbonate curved diamond pattern
- Dimensions: 100mm x 38mm x 13mm
- Mount: 3M adhesive tape
- IP rating: IP67
- Input voltage: 12–24V DC (multivolt)
- Compliance: ADR and ECE approved
- Warranty: 5 years
- Packaging: Single unit
- Brand: LED Autolamps
- SKU: EU38AMHDB
Features & Benefits
-
3M adhesive tape fitting: Fast, clean installation without screws or brackets simply peel and press for a low-profile, professional result
-
Ultra-slim 13mm profile: One of the most low-profile amber side markers available, maintaining clean lines on modern trailers and caravans
-
Integrated reflex reflector: Combines active amber LED output and passive reflector compliance in a single compact unit
-
Curved diamond pattern polycarbonate lens: Durable, UV-resistant lens in the signature EU38 series style
-
ADR and ECE approved: Meets Australian Design Rules and ECE standards for amber side marker use on road vehicles and trailers
-
IP67 waterproof: Completely sealed against dust and temporary water immersion
-
12V and 24V compatible: Multivolt operation suits passenger trailers, caravans, and 24V commercial truck applications
-
5-year warranty: Backed by LED Autolamps' industry-standard 5-year warranty
Technical Specs
| Specification |
Detail |
| SKU |
EU38AMHDB |
| Brand |
LED Autolamps |
| Series |
EU38 Series |
| Function |
Amber Side Marker + Inbuilt Reflector |
| LED Colour |
Amber |
| Lens |
Polycarbonate curved diamond pattern |
| Depth |
13mm |
| Length |
100mm |
| Width |
38mm |
| Mount Type |
3M adhesive tape |
| IP Rating |
IP67 |
| Input Voltage |
12–24V DC (multivolt) |
| Compliance |
ADR and ECE approved |
| Warranty |
5 Years |
| Packaging |
Single unit |
Compatible With
Universal suits all 12V and 24V trailers, caravans, and commercial vehicles requiring amber ADR-compliant side markers including:
- Box trailers, car trailers, and boat trailers
- Caravans and camper trailers
- Light and heavy commercial trucks
- Agricultural and construction trailers
- Horse floats and livestock trailers
Frequently Asked Questions
How does the EU38AMHDB differ from the EU38BAMHDB?
The EU38AMHDB and EU38BAMHDB share identical specifications same function, dimensions, LEDs, and compliance. The EU38BAMHDB is the bulk/bare pack variant while the EU38AMHDB is the standard single-unit version. Confirm packaging format with your retailer if a specific packaging type is required.
Is this lamp ADR approved for Australian road use?
Yes the EU38AMHDB is ADR and ECE approved, confirming it meets Australian legal requirements for amber side marker use on trailers and road vehicles.
Does this lamp include a reflex reflector?
Yes an integrated reflex reflector is built into the lamp body, providing both active amber LED output and passive reflective compliance in a single unit.
What voltage systems does this lamp suit?
The EU38AMHDB operates on 12–24V DC, making it compatible with both 12V passenger and caravan trailer applications and 24V commercial truck systems.
What is the return policy for this product?
Return eligibility is subject to the retailer's policy. Always confirm mounting requirements and quantity needed before purchasing. Contact the seller if you're unsure prior to purchase.
